Communication Interface:TCP/IP, UDP, Multicast

Data Transfer Protocols:SEND/RECEIVE, Fetch/WRITE, S7 Communication (server)

Ethernet Switch:ERTEC 200 with 2-port switch

Network Speed:10/100 Mbit/s

Initialization Method:LAN-based initialization

Connection Ports:2x RJ45 for LAN

Operating System Compatibility:ISO

Diagnosis:SNMP diagnostics

Configuration:DHCP/Block for IP configuration

Access Control:IP Access Control List

Time Synchronization:Extended web diagnostics

Startup Time:Fast Startup

Energy Efficiency:Supports PROFIenergy

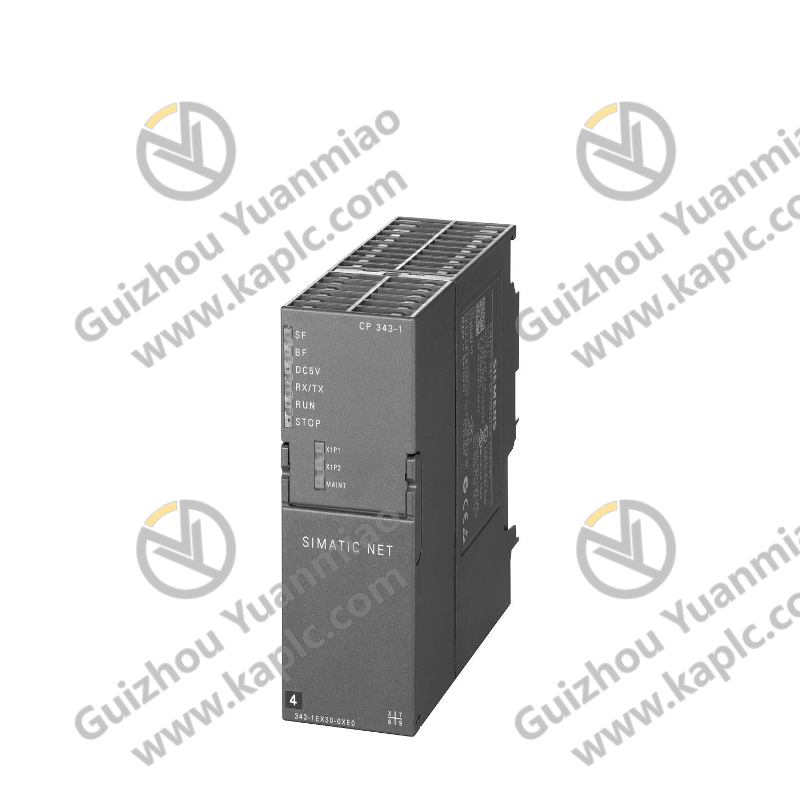

    This Communication Processor is an indispensable part of modern industrial automation, engineered to optimize data exchange between SIMATIC S7-300 controllers and the Industrial Ethernet network using advanced protocols like TCP/IP and UDP.

    Featuring a built-in ERTEC 200 2-port switch, this processor ensures robust and reliable data transmission, enhancing operational efficiency and reducing downtime.

    With support for multicast, users can efficiently manage and prioritize data flow, making it ideal for environments requiring high bandwidth and low latency communication.

    The inclusion of SNMP diagnostics provides comprehensive monitoring and troubleshooting capabilities, ensuring system health and quick response to potential issues.

    For seamless integration into various industrial settings, the processor supports IP configuration through DHCP or block, allowing for flexible and scalable network configurations.

    Innovative features like IP Access Control List and extended web diagnostics offer enhanced security and diagnostic capabilities, safeguarding against unauthorized access and providing detailed insights into system performance.
