Operating Voltage:230V AC

Motor Power Output:3kW

Pinion Gear Ratio:1:20

Control Interface:EtherCAT

Communication Protocol:Profinet

Load Capacity:Up to 1000 Nm

Motor Type:Induction

Pinion Compatibility:Standard ISO 6336

Environmental Conditions:Operating temperature -10°C to 50°C, storage temperature -20°C to 70°C

Safety Rating:IP21

Certifications:CE, UL, CSA

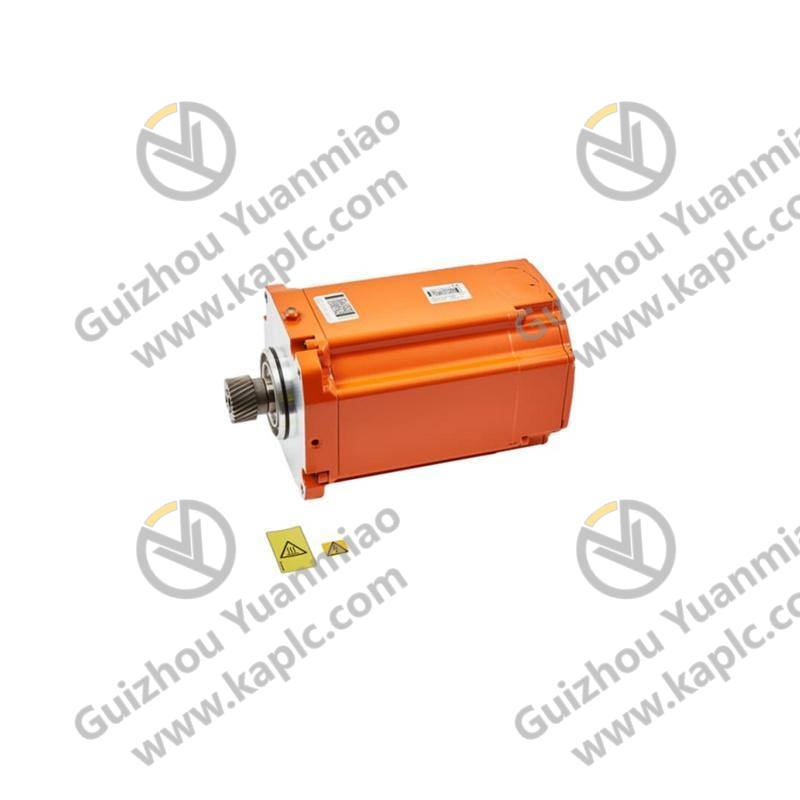

    The ABB DSQC643 & 3HAC024488-001 motor-included pinion system is designed to enhance the performance of your industrial machinery with its robust design and high-precision capabilities. This modular control solution seamlessly integrates with existing systems, providing a versatile upgrade option for enhanced productivity.

    Featuring a compact yet powerful induction motor, this setup ensures reliable operation even under challenging conditions. The included pinion gear ratio of 1:20 allows for precise speed adjustments, essential for applications requiring fine control over mechanical movements.

    With an operating voltage of 230V AC, this system is compatible with a wide range of power sources commonly found in industrial environments. Its motor delivers up to 3kW of power, capable of handling heavy loads efficiently, making it suitable for various heavy-duty applications.

    Equipped with advanced communication protocols such as EtherCAT and Profinet, this system ensures seamless integration with other ABB products and third-party systems, facilitating easy setup and maintenance. The inclusion of an IP21 safety rating guarantees protection against dust and splashing water, ensuring operational safety in diverse environments.

    The ABB DSQC643 & 3HAC024488-001 motor-included pinion system complies with international safety and quality standards, including CE, UL, and CSA certifications, providing assurance of its reliability and compliance with industry regulations.
