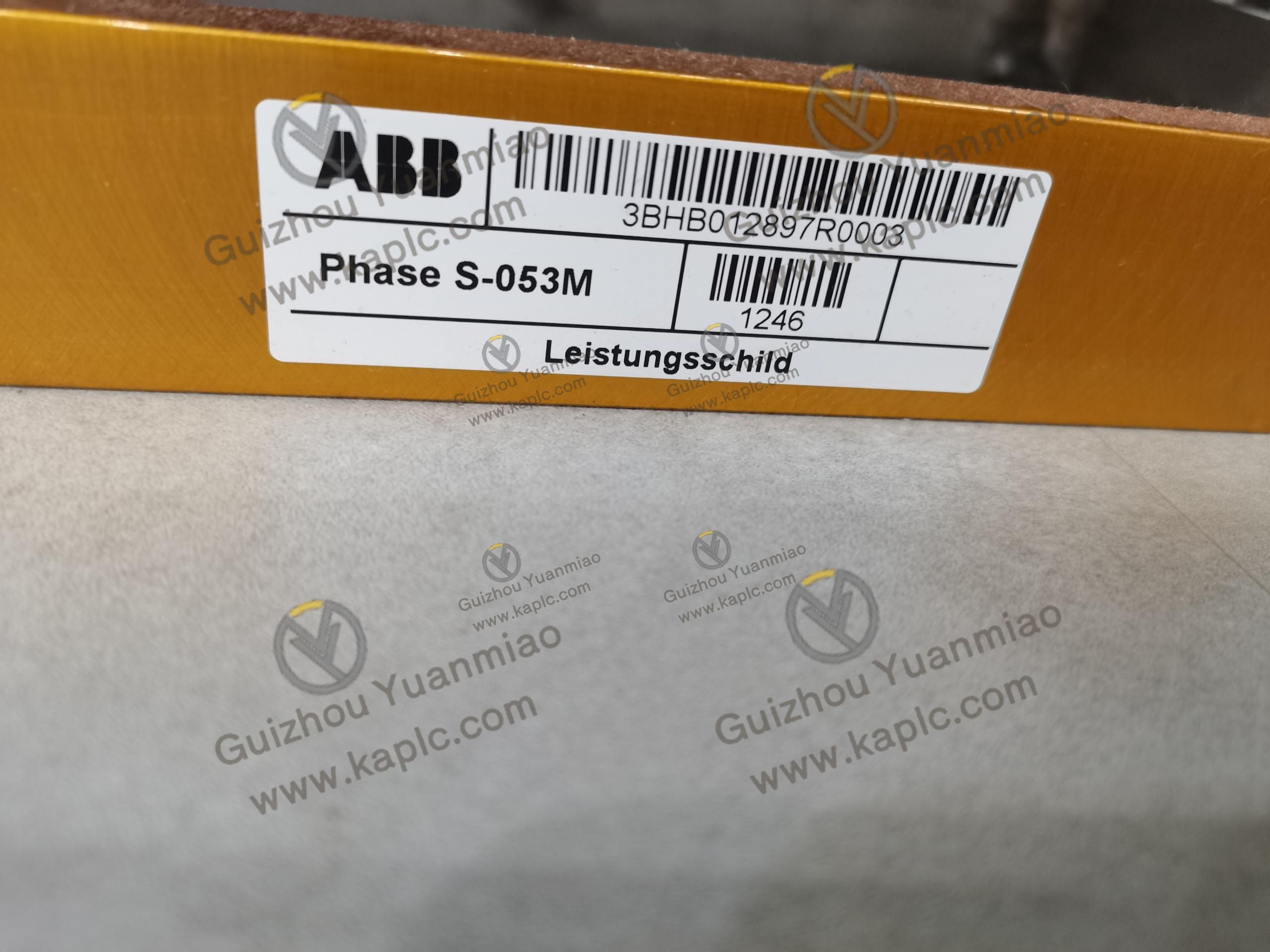

Here is the product data sheet of ABB Phase S - 053M 3BHB012897R0003:
- Product Name: High - voltage inverter phase module S - 053M.
- Model Number: 3BHB012897R0003.
- Manufacturer: ABB.
The S - 053M 3BHB012897R0003 inverter phase module converts direct current into alternating current by using the switching characteristics of semiconductor switching devices. When the semiconductor switching device is turned on, the current passes through the load to generate a sinusoidal alternating current. When the semiconductor switching device is turned off, the current is cut off and the voltage on the load drops to zero. By controlling the on - off time of the semiconductor switching device, the frequency and voltage amplitude of the output alternating current can be adjusted.
- High - voltage Design: It can handle high - voltage circuits and withstand voltages of up to several thousand volts.
- Precision Control: It can accurately control the voltage and current in the AC circuit, which is suitable for various high - precision power electronic applications.
- Versatility: It usually has multiple functions, such as switching, current limiting, over - voltage protection, etc., which improve the reliability of the overall system.
- High - temperature Operation: The design takes into account the working performance in a high - temperature environment, and it is suitable for use in harsh conditions.
- Programmability: Some versions may support software configuration, allowing users to adjust parameters according to their needs.
- High Efficiency: It adopts advanced semiconductor switching devices and circuit design, which can achieve efficient power conversion and reduce energy loss.
- High Reliability: The module has undergone strict quality control and reliability testing, and has excellent stability and durability. It can operate stably for a long time under harsh working conditions.
- High Power Density: It adopts a compact structure design, has a high power density, a small footprint, and is easy to install and maintain.
- Flexible Configuration: ABB provides inverter phase modules of various models and specifications, which can be flexibly configured according to actual needs to meet different power conversion needs.
This module is widely used in various occasions where high - voltage DC power needs to be converted into AC power, such as power, communication, transportation, energy and other fields.
- Power Industry: It is used for reactive - power compensation, active filtering and harmonic suppression in power systems.
- Transportation: It provides stable high - voltage power for electric vehicle charging stations, rail transit and ships.
- Industrial Manufacturing: It provides the required AC power in automated production lines, robots and CNC machine tools.
- New Energy: In solar and wind power generation systems, it converts DC power into AC power and feeds it into the power grid.
- Phase Current Range: To be determined according to specific application requirements.
- Phase Voltage Range: To be determined according to specific application requirements.
- Phase Resistance Value: To be determined according to international standards.
- Phase Capacitance Value: To be determined according to international standards.
- Phase Resistance Temperature Coefficient: To be determined according to international standards.
