ABB ACS580-01-363A-4 200kW Variable Frequency Drive 3 Phase 400V

Short Description:

ABB ACS580-01-363A-4 200kW Variable Frequency Drive (VFD) – Industrial Motor Spe

Send email to us

Product Detail

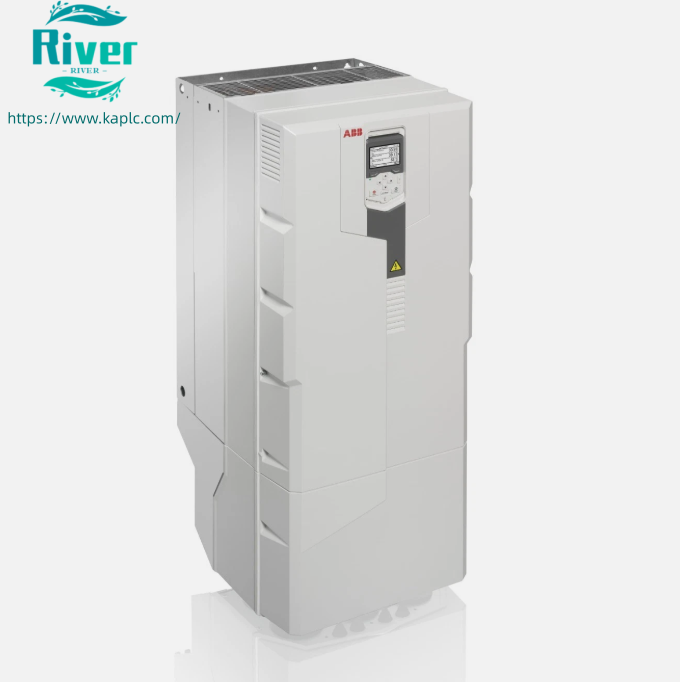

ABB ACS580-01-363A-4 200kW Variable Frequency Drive (VFD) – Industrial Motor Speed Controller

Product Overview

The ABB ACS580-01-363A-4 is a high-performance, general-purpose low-voltage AC variable frequency drive (VFD) designed for precise speed control and energy saving of three-phase induction motors, permanent magnet motors and SynRM motors in industrial applications. As part of ABB’s ACS580 all-compatible drive platform, this wall-mounted unit delivers robust performance, advanced direct torque control (DTC) and reliable operation for medium-to-high power loads up to 200kW (normal duty) / 160kW (heavy duty) with a rated output current of 363A.

Built for harsh industrial environments, the ACS580-01-363A-4 operates on a 380–480V three-phase AC input and provides adjustable output voltage and frequency (0–500Hz) to match motor requirements. It features a standard IP21 enclosure, compact wall-mount design, built-in EMC filtering and DC reactor, ensuring stable performance, low harmonic distortion and easy integration into control cabinets or on-site equipment.

Key Features & Benefits

Advanced DTC Control: Delivers exceptional torque accuracy, fast response and stable operation at zero speed, ideal for winding, slitting, conveyor and high-dynamic applications.
High Power & Current Rating: 363A continuous output current supports 200kW normal and 160kW heavy-duty motor loads, suitable for large fans, pumps, compressors and processing lines.
Built-in Safety & Protection: Equipped with Safe Torque Off (STO, PLd/SIL2) for machine safety, plus overcurrent, overvoltage, undervoltage, overtemperature and motor overload protection.
Energy Efficiency: Optimizes motor speed to match load demand, reducing energy consumption by 30–50% in fan, pump and HVAC applications; low standby losses and high operating efficiency.
Flexible Communication & I/O: Supports Modbus RTU as standard, with optional PROFINET, EtherNet/IP, BACnet and Profibus DP for seamless PLC, HMI and SCADA integration; configurable analog/digital I/O for process control.
Easy Installation & Commissioning: Compact wall-mount design, user-friendly multilingual control panel, quick-start wizard and auto-tuning for fast setup with minimal programming.
Robust Design: Coated circuit boards, wide temperature range (-15°C to +50°C) and strong EMC immunity ensure long-term reliability in dusty, humid or high-interference industrial environments.

Technical Specifications

Model: ACS580-01-363A-4
Brand: ABB
Input: 3-phase 380–480V AC, ±10%, 48–63Hz
Output: 3-phase 0–480V, 0–500Hz
Rated Power: 200kW (normal), 160kW (heavy duty)
Rated Current: 363A (normal), 293A (heavy), 345A (light overload)
Control Method: DTC (Direct Torque Control), V/F control
Mounting: Wall-mounted (IP21 standard, IP55 optional)
Cooling: Forced air cooling
Protection: STO (PLd/SIL2), overcurrent, overvoltage, undervoltage, overtemperature, motor overload
Communication: Modbus RTU (standard); PROFINET, EtherNet/IP, BACnet, Profibus DP (optional)
Dimensions: 418 × 380 × 955 mm
Weight: 97 kg
Operating Temperature: -15°C to +50°C (derate above 40°C)
Certifications: CE, UL, cULus, IEC standards

Industrial Applications

The ABB ACS580-01-363A-4 is widely used across industries for motor speed control and energy optimization:

HVAC & Water Treatment: Large fans, pumps, chillers, cooling towers, water supply and wastewater systems
Manufacturing & Processing: Conveyors, mixers, extruders, crushers, compressors, machine tools
Paper, Printing & Textile: Winding, unwinding, slitting, laminating, printing presses, textile machines
Metal & Film Processing: Rolling mills, foil production, battery electrode lines, plastic film lines
Mining & Construction: Ventilation fans, slurry pumps, conveyor systems, material handling

Why Choose ABB ACS580-01-363A-4?

Proven ABB Quality: Global industrial leader, reliable performance and long service life
Precision Control: DTC technology ensures stable tension and speed for high-quality production
Energy Savings: Reduces operational costs and carbon footprint significantly
Easy Integration: Compatible with all major industrial control systems and protocols
Low Maintenance: Robust design, minimal downtime and easy serviceability

This drive is the ideal solution for upgrading or installing high-performance motor control systems in medium-to-high power industrial applications.
