ABB CM-MPS.41 (1SVR630884R3300) 3-phase monitoring relay for 300–500V AC: phase failure, sequence, over/undervoltage, unbalance protection, DIN-rail mount.

Product Overview

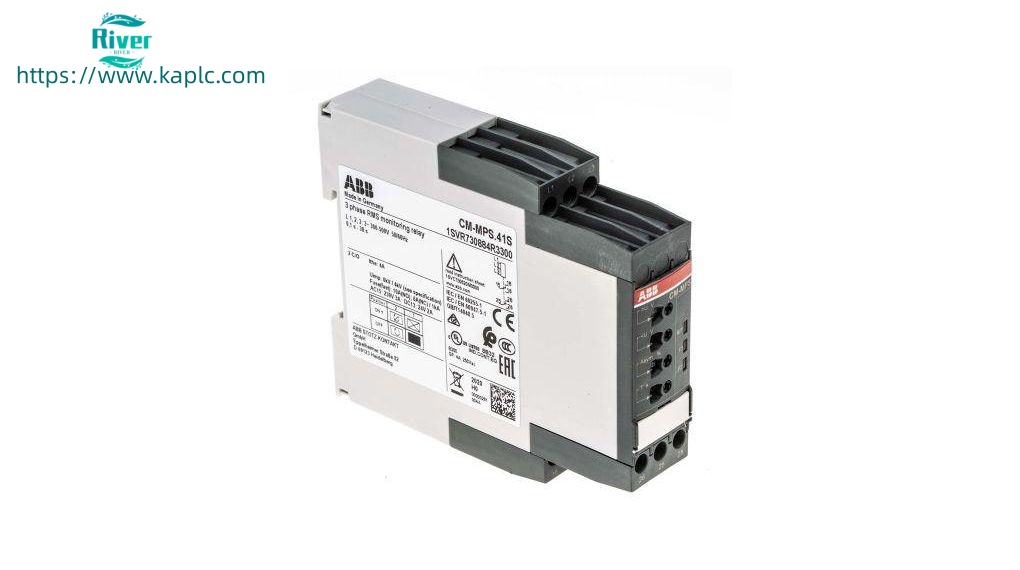

ABB 1SVR630884R3300 (CM-MPS.41) is a multifunctional three-phase monitoring relay from ABB’s CM series. It supervises three-phase power systems (300–500 V AC) to protect motors, generators, and critical equipment against phase loss, incorrect sequence, overvoltage, undervoltage, and phase unbalance.

Key Specifications

• Brand: ABB
• Order Code: 1SVR630884R3300
• Type: CM-MPS.41 (Three-phase monitoring relay)
• Supply/Measuring Voltage: 3 × 300–500 V AC (L1-L2-L3), 50/60 Hz
• Monitoring Functions:
• Phase failure (loss) detection
• Phase sequence monitoring
• Overvoltage (420–500 V AC) & Undervoltage (300–380 V AC)
• Phase unbalance detection
• Output: 2 × c/o (DPDT/SPDT) relay contacts
• Contact Rating: 250 V AC / 4 A
• Time Delay: 0.1–30 s adjustable (ON/OFF delay); 200 ms startup delayABB Group
• Terminals: Screw terminals
• Dimensions: 22.5 × 85.6 × 103.7 mm (W×H×D)
• Weight: ~0.13 kgABB Group
• Mounting: DIN rail (35 mm)
• Operating Temp.: -25°C to +60°C
• Protection: IP50 (housing), IP20 (terminals)
• Certifications: CE, UL, CCC, RoHS
• Condition: New / Refurbished

• Warranty: 12 Months

•


Core Features

• Multifunctional Protection: All-in-one phase/voltage supervision for 3-phase supplies.
• Adjustable Thresholds: Voltage limits & unbalance thresholds configurable via dials.
• Flexible Timing: 0.1–30 s trip delay; selectable ON/OFF delay modeABB Group.
• LED Diagnostics: Front LEDs for power, status, and fault indication.
• High Isolation: 6 kV impulse withstand voltage (input); 4 kV (output).
• Compact Design: 22.5 mm wide, fits standard DIN rails.

• Easy Wiring: Screw terminals for secure field wiring.

•


Typical Applications

• Motor control centers (MCC) & pump panels

• HVAC, compressors, conveyor systems

• Generator sets & UPS systems

• Industrial control panels (3-phase power protection)

• Water treatment, manufacturing, food & beverage

• Retrofit for older phase monitoring relays




Why ABB CM-MPS.41?

• Proven reliability in industrial 3-phase applications

• No auxiliary power needed (self-powered from measured phases)

• Wide voltage range (300–500 V AC) covers global 400 V grids

• UL/CE/CCC certified for global installation

• Long service life (maintenance-free)
