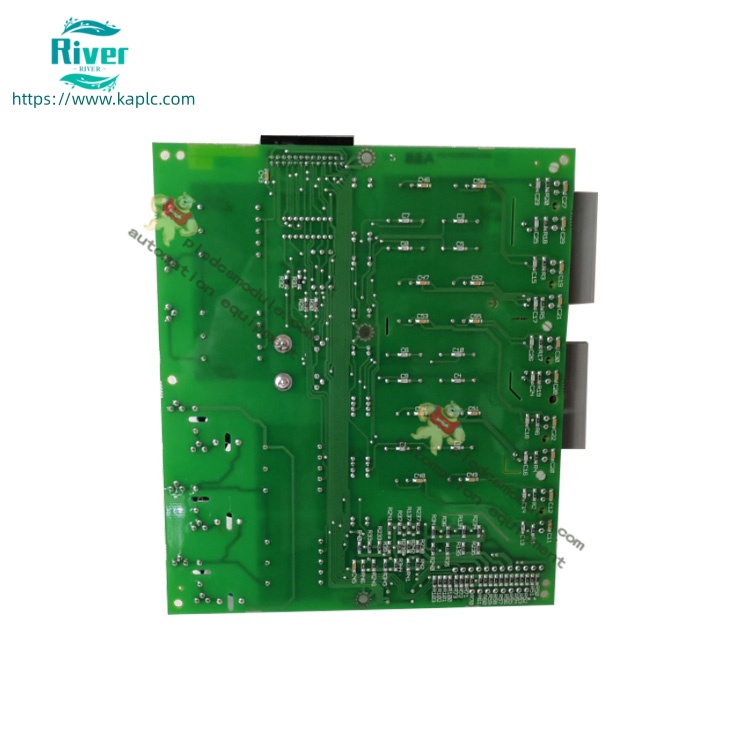

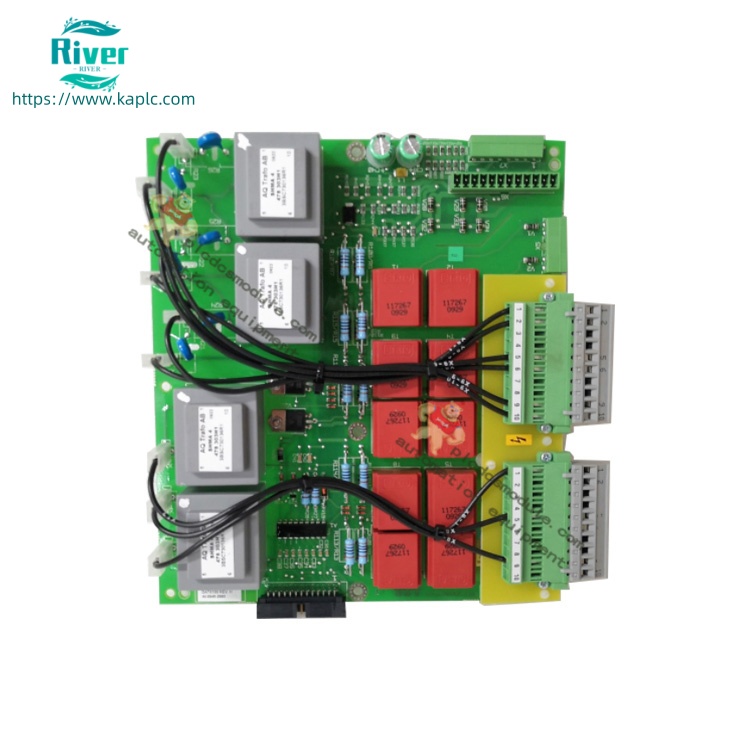

ABB 3ASC25H208 DATX100 Pulse Transformer Board

ABB 3ASC25H208 DATX100 is an original high-precision pulse transformer & digital I/O interface board, designed for gate triggering & signal isolation in high-power industrial drive and power electronics systems.

Core Functions

• Pulse Signal Conversion & Isolation: Transforms control signals into isolated gate pulses for SCR/thyristor/IGBT
• Galvanic Isolation: Protects low-voltage control circuits from high-voltage power circuits
• Digital I/O Interface: Provides input/output logic signaling

• Precise Trigger Timing: Fast rise/fall time (<500ns) for accurate power device control

•


Key Features

• 100% Original ABB: Full traceability & compatibility
• High-Density Isolation: Multiple independent pulse channels
• Industrial Robustness: Wide temperature range & strong EMC immunity
• Plug-and-Play: Direct replacement for drive systems

• Swedish Origin: Premium industrial-grade quality

•


Technical Specifications

• Part Number: 3ASC25H208
• Model: DATX100
• Type: Pulse Transformer Board / Digital I/O Module
• Supply Voltage: 24 VDC ±10%
• Channels: 6–8 isolated pulse output channels
• Isolation Voltage: Up to 4 kV
• Frequency Response: Up to 50 kHz
• Dimensions: 215 x 200 x 35 mm
• Weight: ~1.06 kg
• Operating Temp: -25°C to +70°C
• Certifications: CE, RoHS
• Condition: New, original

• Warranty: 12 months

•


Compatible Systems

• ABB Drives (ACS/ACW series)
• UNITROL excitation systems
• Thyristor power controllers
• SCR rectifier bridges
• Medium-voltage drive systems

• Industrial inverters & UPS

•


Applications

• Variable Speed Drives: Gate triggering for IGBT/thyristor converters
• Power Rectifiers: Phase-controlled rectification in industrial power supplies
• Induction Heating: Precise power regulation
• UPS & Inverters: DC-AC conversion control
• Excitation Systems: Generator field control

• Industrial Furnaces: Heating element power control

•


Why Buy From Us

• New & Genuine ABB: No copies or substitutes
• In-Stock Availability: Immediate shipping
• 12-Month Warranty: Full after-sales support
• Global Delivery: DHL / FedEx / UPS / TNT
• Pre-Shipment Test: 100% functional verification

• Competitive Bulk Pricing

•


Cross Reference

• DATX100
• 3ASC25H208
• Pulse transformer board for ABB industrial drives
