AAEON GENE-9455 3.5" Embedded SBC | Industrial Motherboard Atom N270

Short Description:

AAEON GENE-9455 single board computer (SBC) with onboard Intel Atom N270 1.6GHz,


Product Detail

AAEON GENE-9455 single board computer (SBC) with onboard Intel Atom N270 1.6GHz, 2x Gigabit LAN, 4x COM, 4x USB, SATA/CF. 3.5" embedded industrial mainboard for automation. New, 12-month warranty.


Product Details

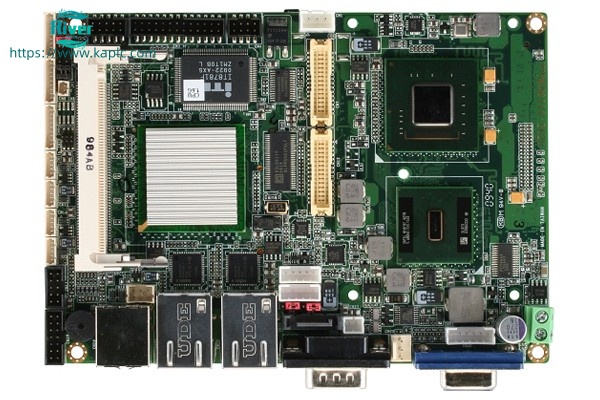

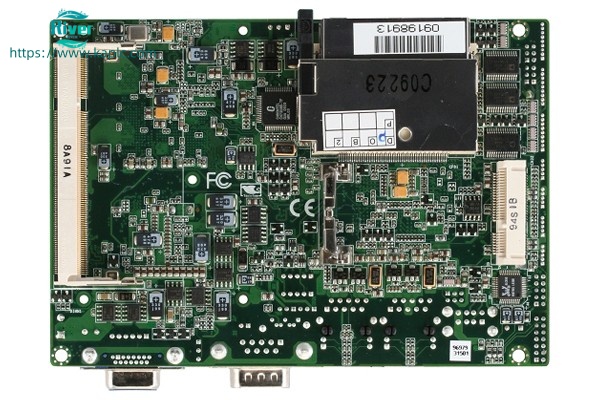

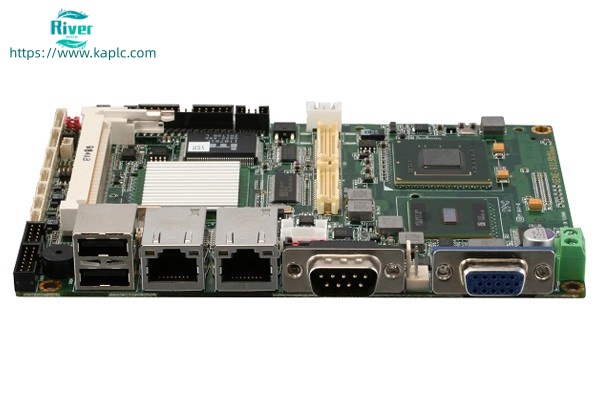

AAEON GENE-9455 3.5" SubCompact Embedded SBC

The AAEON GENE-9455 is a 3.5-inch embedded single board computer (SBC) built for industrial control, automation, and compact computing systems. It features an onboard low-power Intel Atom processor and rich I/O interfaces.


Key Features
  • Onboard Intel Atom N270 1.6GHz processor
  • 3.5-inch SubCompact form factor (146 x 101.6mm)
  • Dual Intel 82574L Gigabit Ethernet (10/100/1000Mbps)
  • Supports up to 2GB DDR2 SODIMM (400/533MHz)
  • Storage: 2× SATA II, 1× IDE, 1× Type II CompactFlash
  • I/O: 4× USB 2.0, 4× COM (RS-232), 8-bit DIO
  • Expansion: 1× Mini PCI, 1× ECX proprietary slot
  • Wide voltage input: +8.5V to +19V DC
  • Watchdog timer, hardware monitoring, WOL

  • Fanless & low-power design


Technical Specifications
  • Brand: AAEON (研扬)
  • Model: GENE-9455 (Rev.A / Rev.B)
  • Form Factor: 3.5" SubCompact SBC
  • CPU: Intel Atom N270 1.6GHz (533MHz FSB)
  • Chipset: Intel 945GSE + ICH7M
  • Memory: 1× DDR2 SODIMM, max 2GB
  • LAN: 2× Intel 82574L GbE (RJ45)
  • Display: CRT, LVDS (optional DVI)
  • Audio: AC97 2.3 (2-channel)
  • Power: +8.5V ~ +19V DC input
  • Operating Temp: 0°C ~ +60°C (standard)
  • Dimensions: 146 × 101.6 mm
  • Condition: New / refurbished

  • Warranty: 12 months


Applications
  • Industrial automation & control
  • Embedded systems & medical devices
  • kiosks, POS & thin clients
  • factory automation & IoT gateways

  • vehicle & marine computing


Why Buy From Us
  • Genuine AAEON GENE-9455
  • In stock, fast worldwide shipping
  • 12-month warranty & technical support
  • Bulk pricing available
  • Global delivery via DHL, FedEx, UPS
