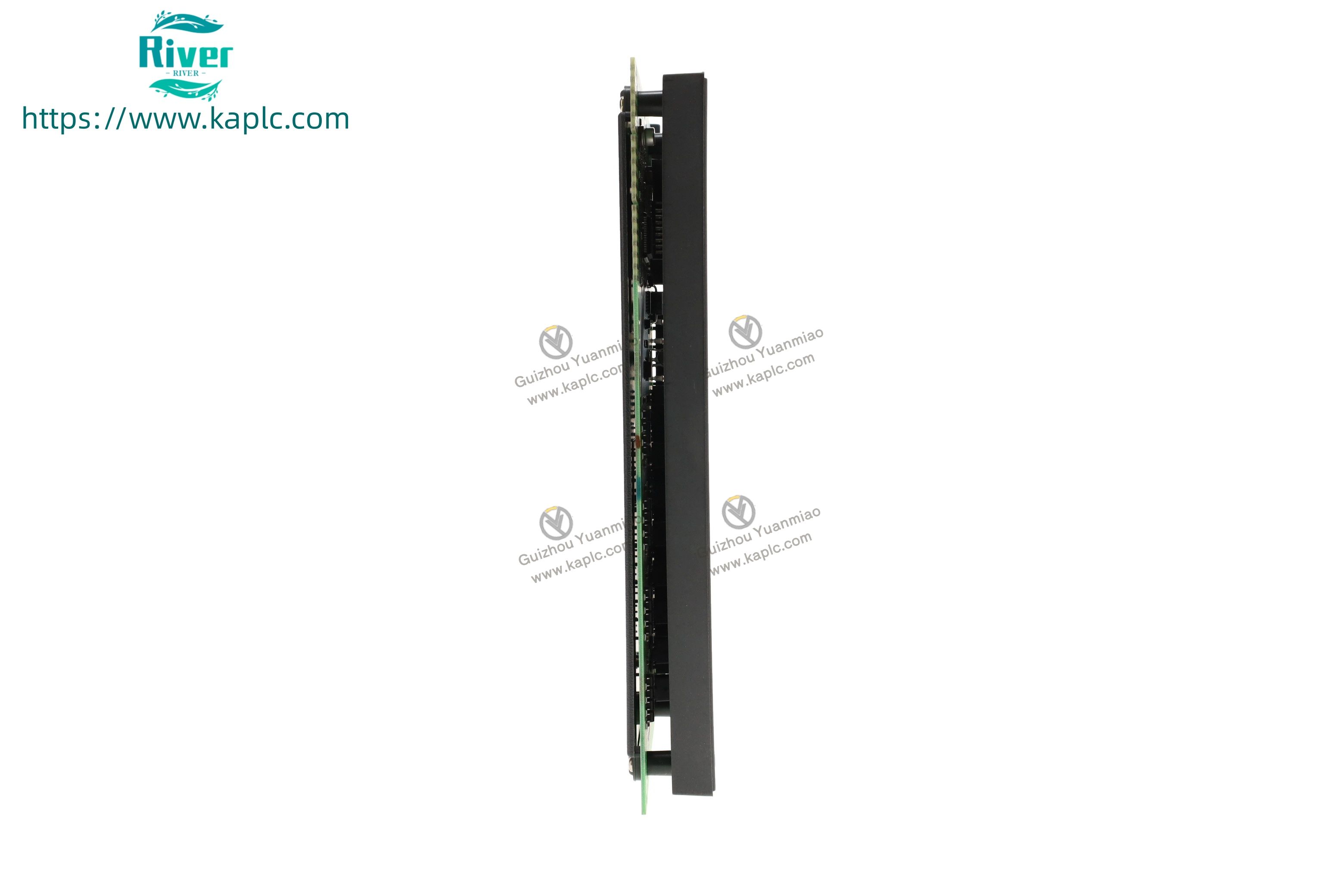

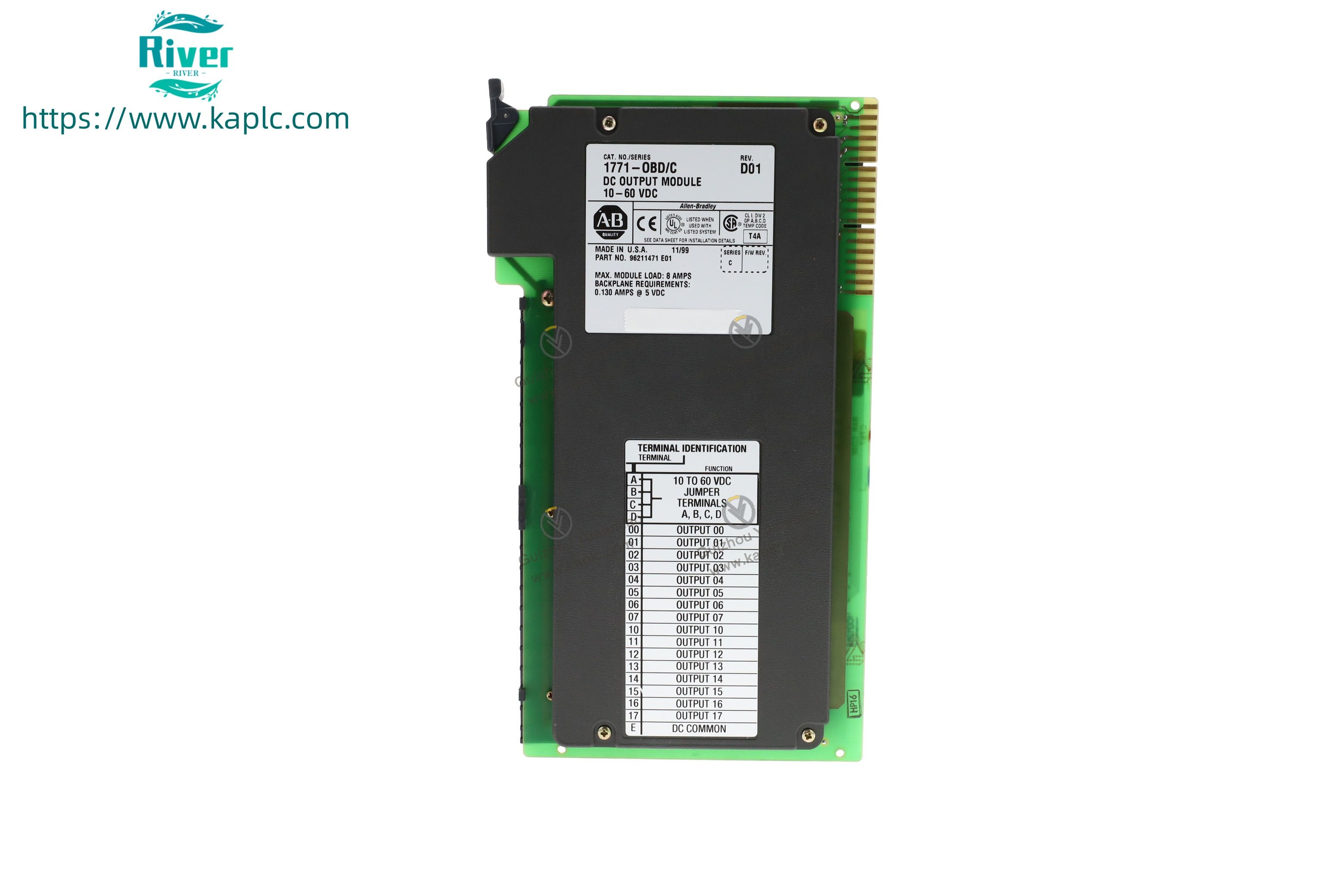

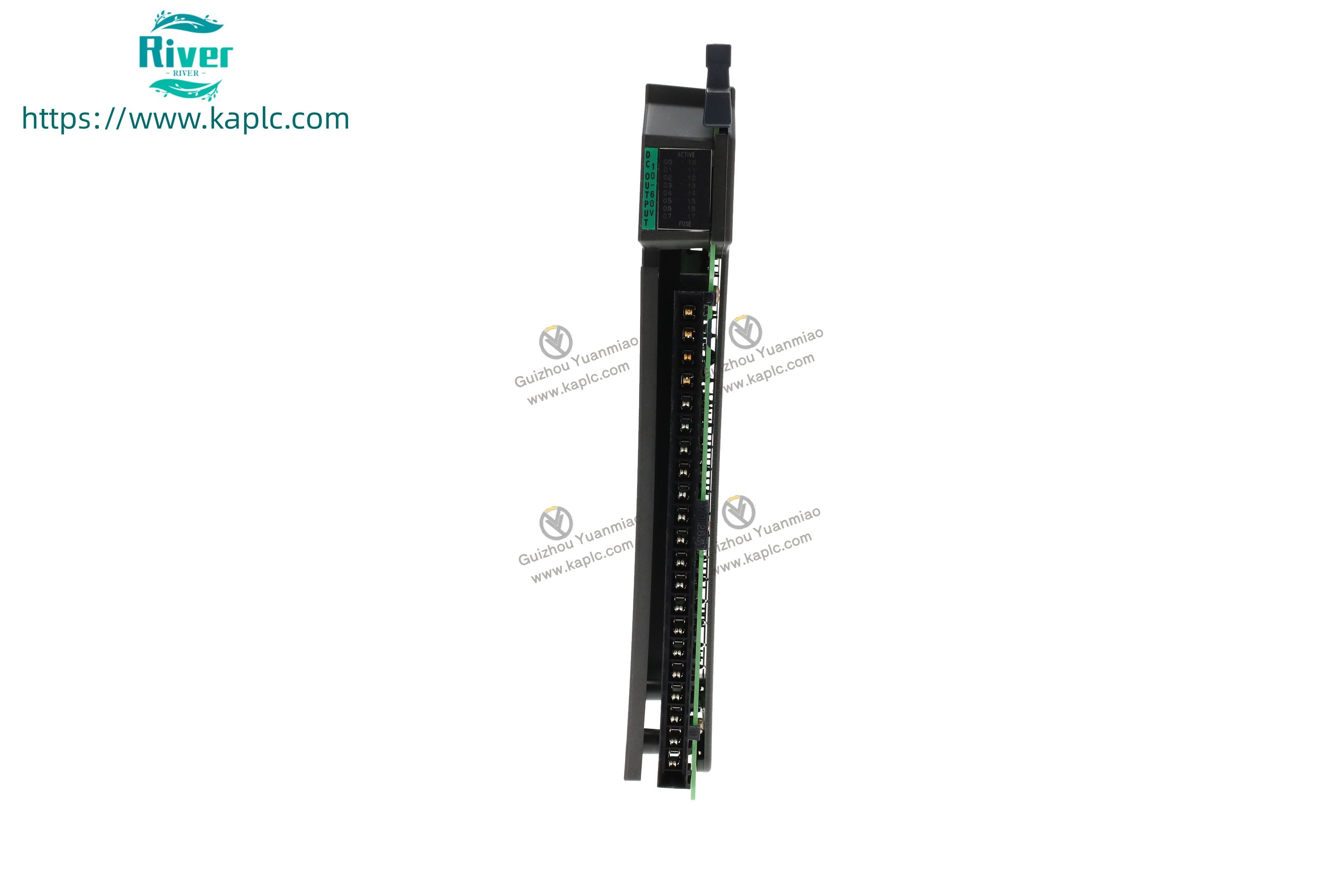

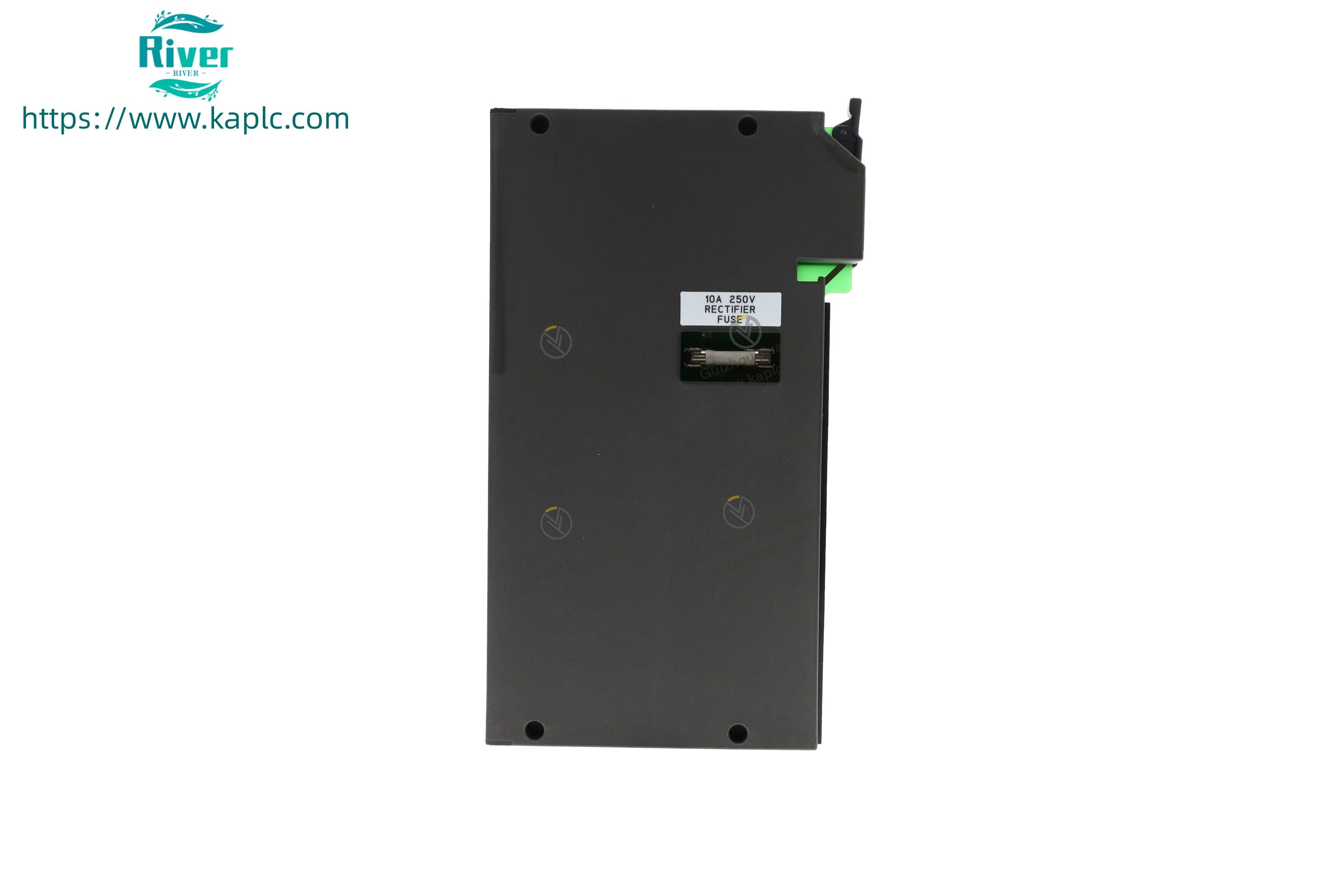

Allen Bradley 1771-OBD PLC-5 series 16 point DC digital output module 10-60VDC sourcing 2A per channel original refurbished 12 month warranty

Product Overview

• 1771-OBD is 16 point DC digital output module for Allen Bradley 1771 PLC-5 series
• Sourcing type outputs for driving 10-60VDC field loads like solenoids, relays, lamps
• Ideal for medium-voltage DC control in industrial process and manufacturing lines

• Discontinued original module for legacy 1771 system maintenance and spare parts

•


Core Features

• 16 independent sourcing DC output channels
• Wide voltage range 10-60VDC, nominal 48VDC
• 2A per channel resistive load, 8A max per module
• 0.2A per channel pilot duty rating
• Fuse protected outputs with short-circuit overload protection
• LED status indicators for each channel

• 1500V AC channel-to-backplane isolation

•


Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1771-OBD
• Series: 1771 PLC-5
• Type: DC Digital Output Module
• Channel: 16 Points (Sourcing)
• Output Voltage: 10-60VDC
• Output Current: 2A/channel (resistive), 0.2A/channel (pilot duty)
• Backplane Current: 220mA @5VDC
• Isolation Voltage: 1500V AC (channel-to-backplane)
• Operating Temperature: 0°C ~ 60°C
• Weight: Approx. 0.5-0.7kg
• Condition: Original Discontinued Refurbished

• Warranty: 12 Months

Applications

• PLC-5 system 10-60VDC load control
• Driving DC relays, solenoid valves, contactors and indicator lights
• Industrial machinery, packaging equipment and production line output control

• Legacy 1771 PLC-5 system upgrade, module replacement and spare parts

•


Our Advantages

• Fully tested and calibrated before delivery stable performance
• Sufficient stock fast global shipping
• Professional technical support for installation and wiring
• Competitive bulk wholesale price
• 12 month standard warranty
