Allen Bradley 1771-OZL PLC-5 series 8 point dry-reed relay output module 0-24V AC/DC 100mA per channel original discontinued refurbished 12 month warranty

Product Overview

• 1771-OZL is an 8-point Form A (normally open) dry-reed relay output module for Allen Bradley 1771 PLC-5 series
• Designed for 0-24V AC/DC low-power field loads, ideal for low-voltage control in industrial automation
• Hermetically sealed dry-reed relay contacts provide high isolation and reliability in harsh environments

• Discontinued original module for legacy 1771 system maintenance, spare parts and migration backup

•


Core Features

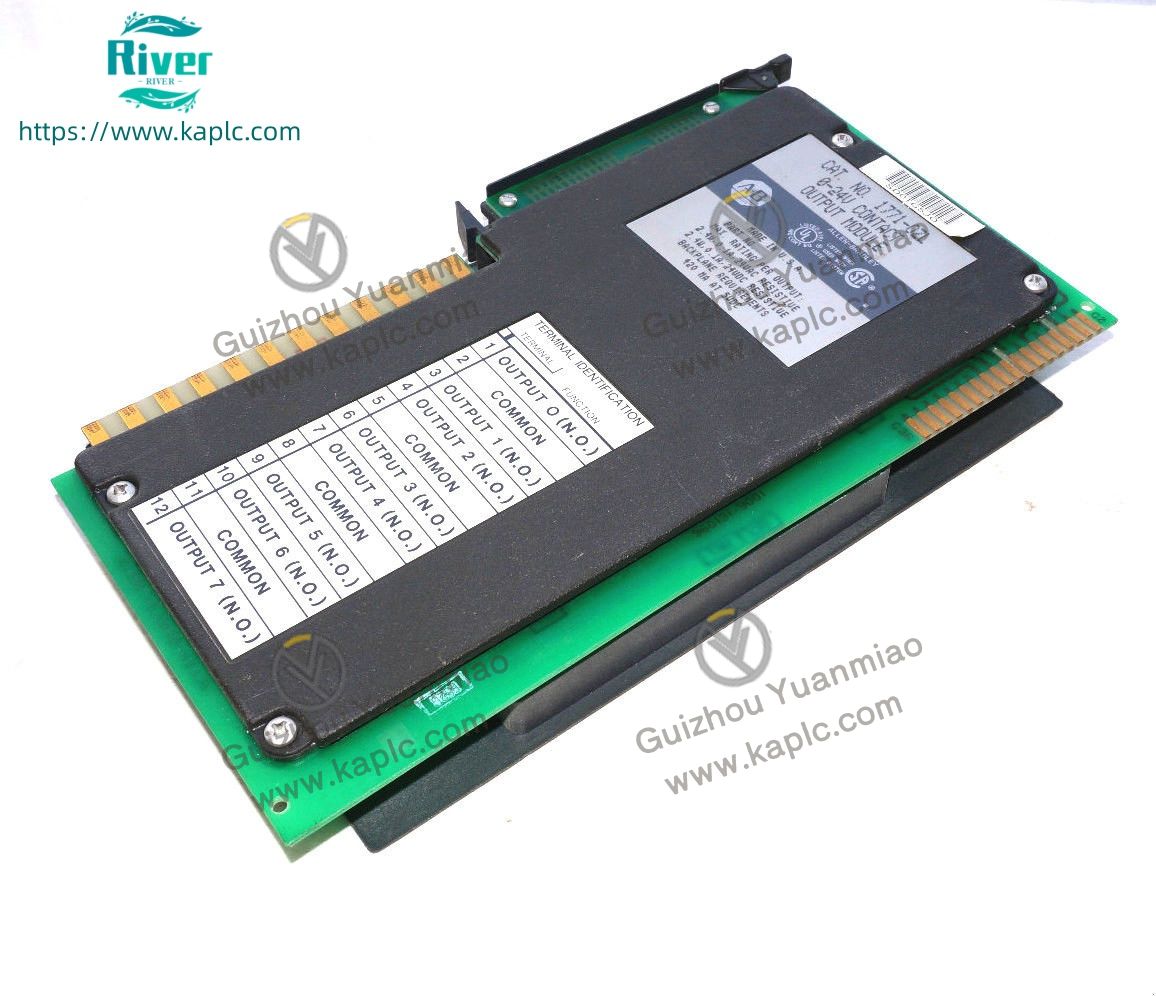

• 8 independent Form A (N.O.) dry-reed relay outputs (4 groups × 2 channels)
• 0-24V AC/DC operating voltage, suitable for low-voltage circuits

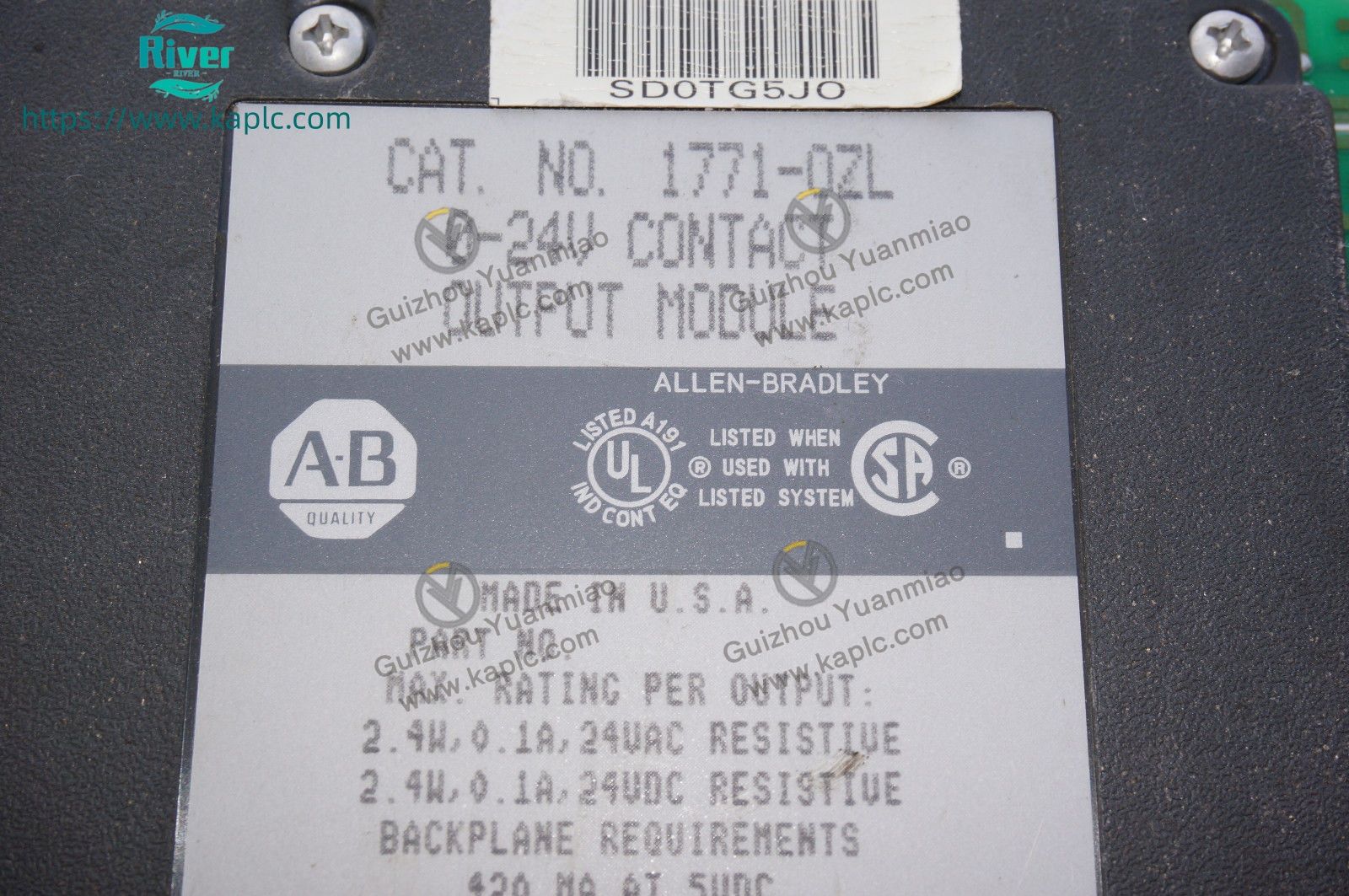

• 100mA continuous current per output; 2.4W power rating per output (resistive)
• 1500V AC isolation between coil and contacts; 1000V AC between open contacts
• LED status indicators for each channel; fast 1ms operate/release time

• Requires 1771-WD wiring arm for field connection

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1771-OZL
• Series: 1771 PLC-5
• Type: Dry-Reed Relay Contact Output Module
• Channel: 8 Points (4 groups × 2)
• Output Voltage: 0-24V AC/DC
• Output Current: 100mA per channel (max)
• Backplane Current: 420mA @5VDC
• Isolation Voltage: 1500V AC (coil-to-contact); 1000V AC (contact-to-contact)
• Operating Temperature: 0°C ~ 60°C
• Weight: Approx. 0.95kg
• Condition: Original Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• PLC-5 system low-voltage (24V AC/DC) load control
• Driving low-power relays, indicator lamps and small solenoid valves
• Chemical, pharmaceutical and food processing equipment with low-power control

• Legacy 1771 PLC-5 system upgrade, module replacement and spare parts

•
