Product Overview

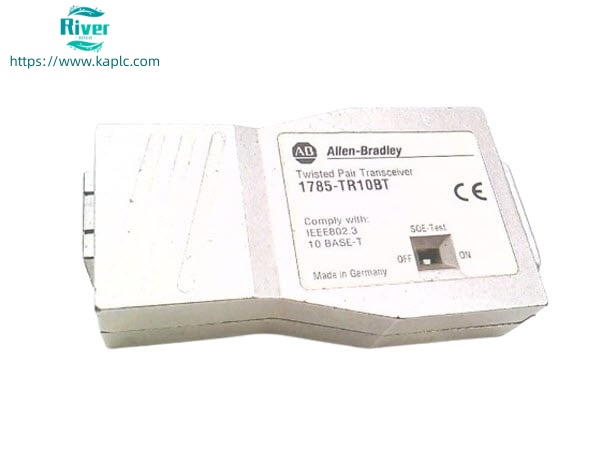

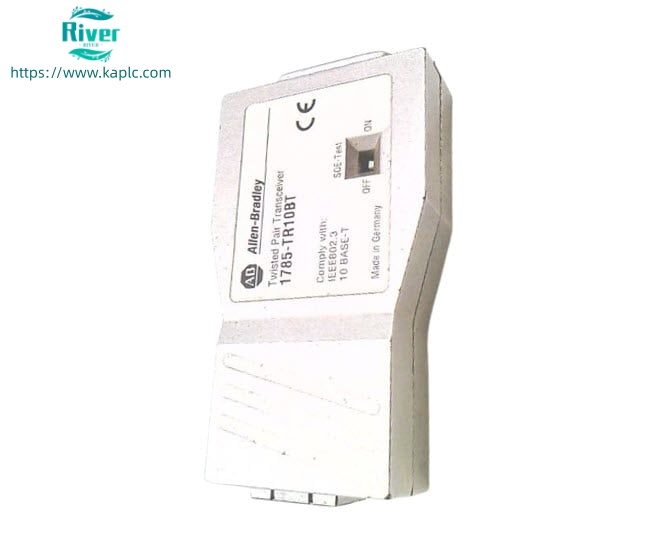

• 1785-TR10BT is a 10Base-T ethernet transceiver designed for Allen Bradley PLC-5 series system
• It converts standard AUI port to RJ45 twisted pair interface for ethernet communication
• Suitable for matching 1785-ENET ethernet module and other AUI port devices

• Widely used for legacy industrial network renovation equipment maintenance and spare parts replacement

•


Core Features

• Compliant with IEEE 802.3 standard supports 10Mbps network transmission speed

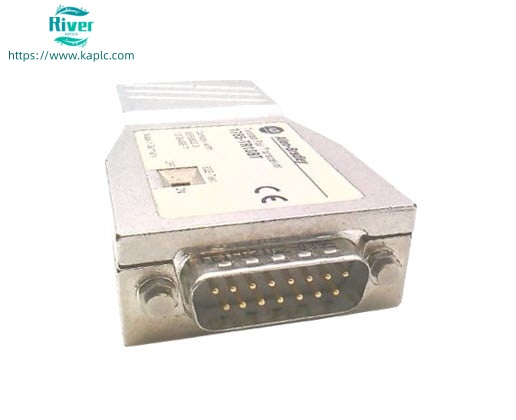

• Realizes stable signal conversion between 15 pin AUI port and RJ45 interface

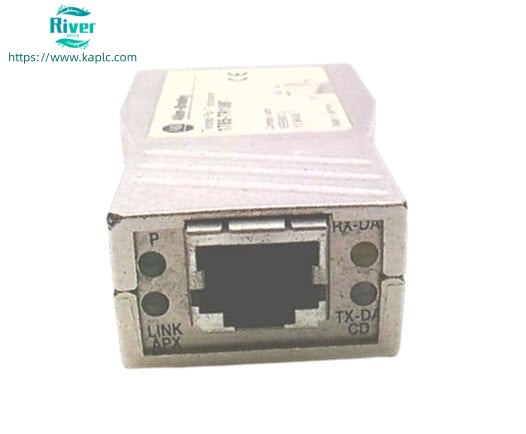

• Built in multiple LED indicators to show transmit receive and collision status
• Equipped with SQE test function and auto polarity correction function
• Supports jabber control and network conflict detection for safer network operation

• Powered by AUI interface easy installation without extra power supply

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1785-TR10BT
• Type: Ethernet Twisted Pair Transceiver
• Network Standard: 10Base-T
• Transmission Rate: 10 Mbps
• Interface: AUI 15Pin RJ45
• Working Voltage: 12V DC
• Operating Temperature: 0°C ~ 60°C
• Condition: Original Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• Network expansion connection for PLC-5 series control system
• Connect old industrial controllers to modern twisted pair ethernet network
• On site short distance industrial ethernet data transmission

• Replace traditional coaxial network to reduce wiring cost

•
