Product Overview

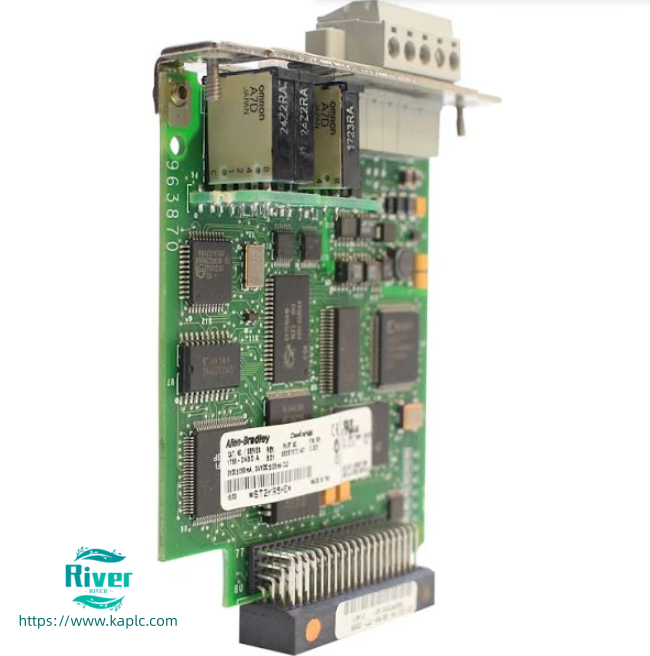

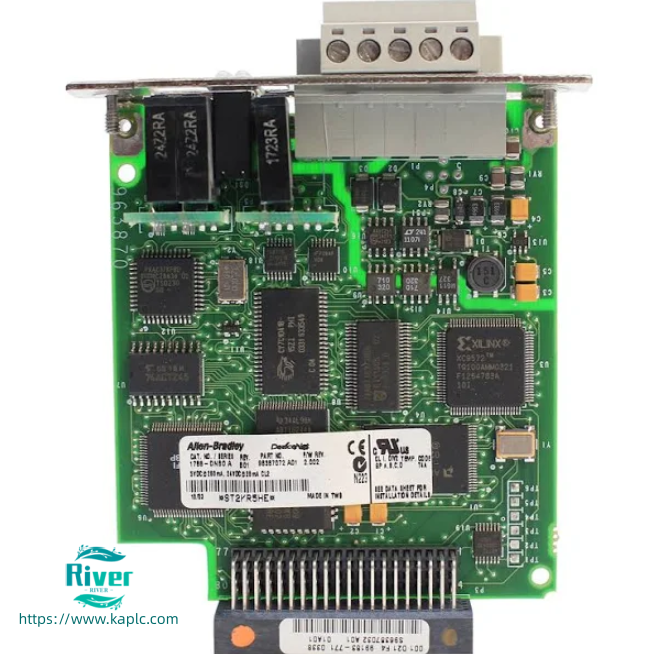

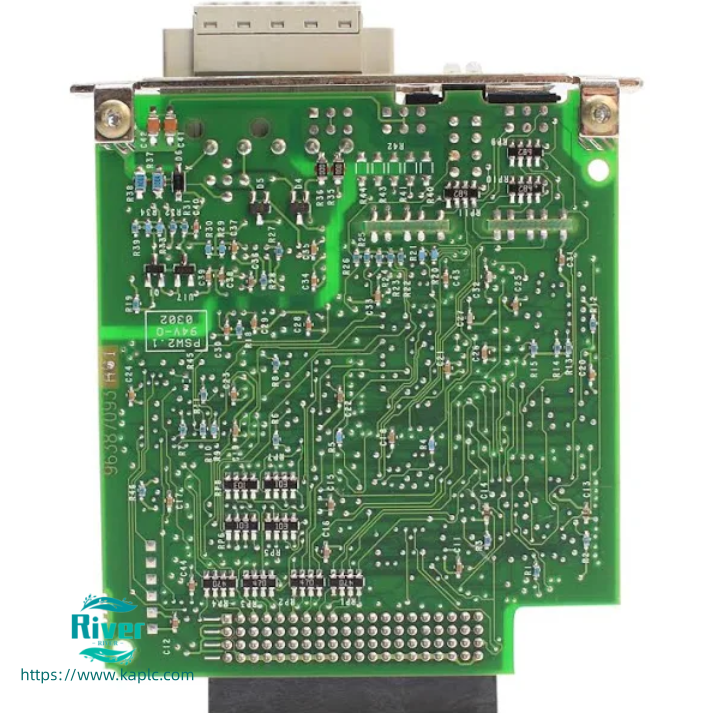

• 1788-DNBO is a DeviceNet option board/daughtercard for Allen Bradley FlexLogix 1794-L3x series controllers
• It provides a DeviceNet master/slave communication interface for connecting industrial devices on the DeviceNet network
• The board plugs directly into the controller’s expansion slot to add DeviceNet functionality without additional chassis

• Discontinued original model for legacy FlexLogix system maintenance replacement and spare parts backup

•


Core Features

• Supports DeviceNet communication with baud rates up to 1Mbps
• Operates as a DeviceNet scanner/master for I/O and slave device connections
• Compact daughtercard design fits directly into FlexLogix controller expansion port
• Built-in status LEDs for network activity and diagnostic monitoring
• Requires minimal power consumption low heat generation for continuous operation

• Compatible with RSLogix 500 programming software and RSLinx Classic

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1788-DNBO
• Type: DeviceNet Communication Daughtercard
• Compatible Controllers: FlexLogix 1794-L30 1794-L31 1794-L32 etc
• Protocol: DeviceNet
• Baud Rate: 125K 250K 500K 1Mbps selectable
• Power Consumption: 260mA typical at 5V DC
• Operating Temperature: 0°C ~ 60°C
• Weight: Approx 100g
• Condition: Original Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• Adding DeviceNet communication capability to FlexLogix PLC systems
• Connecting remote I/O modules sensors and actuators over DeviceNet network
• Legacy automation system expansion and device integration

• Spare parts replacement for FlexLogix controllers in production lines

•
