Product Overview

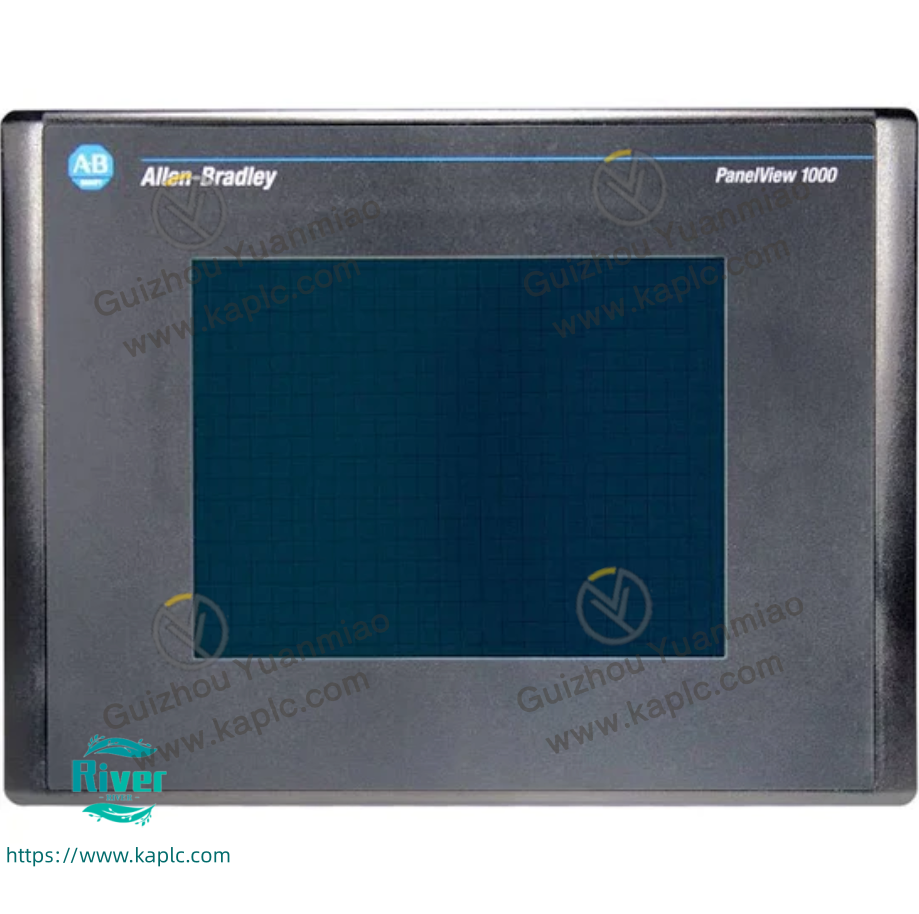

• 2711-T10C20 is a PanelView 1000 Standard series industrial HMI by Allen Bradley
• Equipped with 10.1 inch color TFT touchscreen 640×480 resolution for clear display
• Features integrated Ethernet and RS232 printer communication ports
• Wide voltage 85-264V AC power supply for flexible industrial environments

• Discontinued model available as refurbished/used for legacy system maintenance

•


Core Features

• 10.1 inch color active matrix TFT touchscreen with 640×480 VGA resolution
• Resistive touch design 384 touch points for reliable operation in harsh conditions
• Built-in Ethernet port for PLC connection and RS232 for printer
• NEMA 12/13 4X IP65 front panel for dust and water resistance
• Panel mount design for easy installation in control cabinets
• Green COMM and red Fault LED status indicators

• Long-life LED backlight up to 100000 hours

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 2711-T10C20
• Series: PanelView 1000 Standard
• Display Size: 10.1 inch
• Display Type: Color Active Matrix TFT
• Resolution: 640×480
• Input: Resistive touchscreen
• Communication: Ethernet RS232
• Power Supply: 85-264V AC 47-63Hz
• Memory: 256KB application memory
• Enclosure: NEMA 12/13 4X IP65 front panel
• Operating Temperature: 0°C~55°C
• Storage Temperature: -20°C~70°C
• Humidity: 5%~95% non condensing
• Condition: Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• Real-time monitoring of production line data and parameters
• Touch control for PLC5 SLC500 MicroLogix CompactLogix ControlLogix systems
• On-site fault alarm display and equipment status monitoring
• Industrial process visualization and operator input

• Old factory automation system renovation and replacement

•


Our Advantages

• Full functional and compatibility testing before shipment
• Fast worldwide delivery with secure anti-static packaging
• Professional technical support for installation and configuration
• Competitive pricing for wholesale and retail orders
