Product Overview

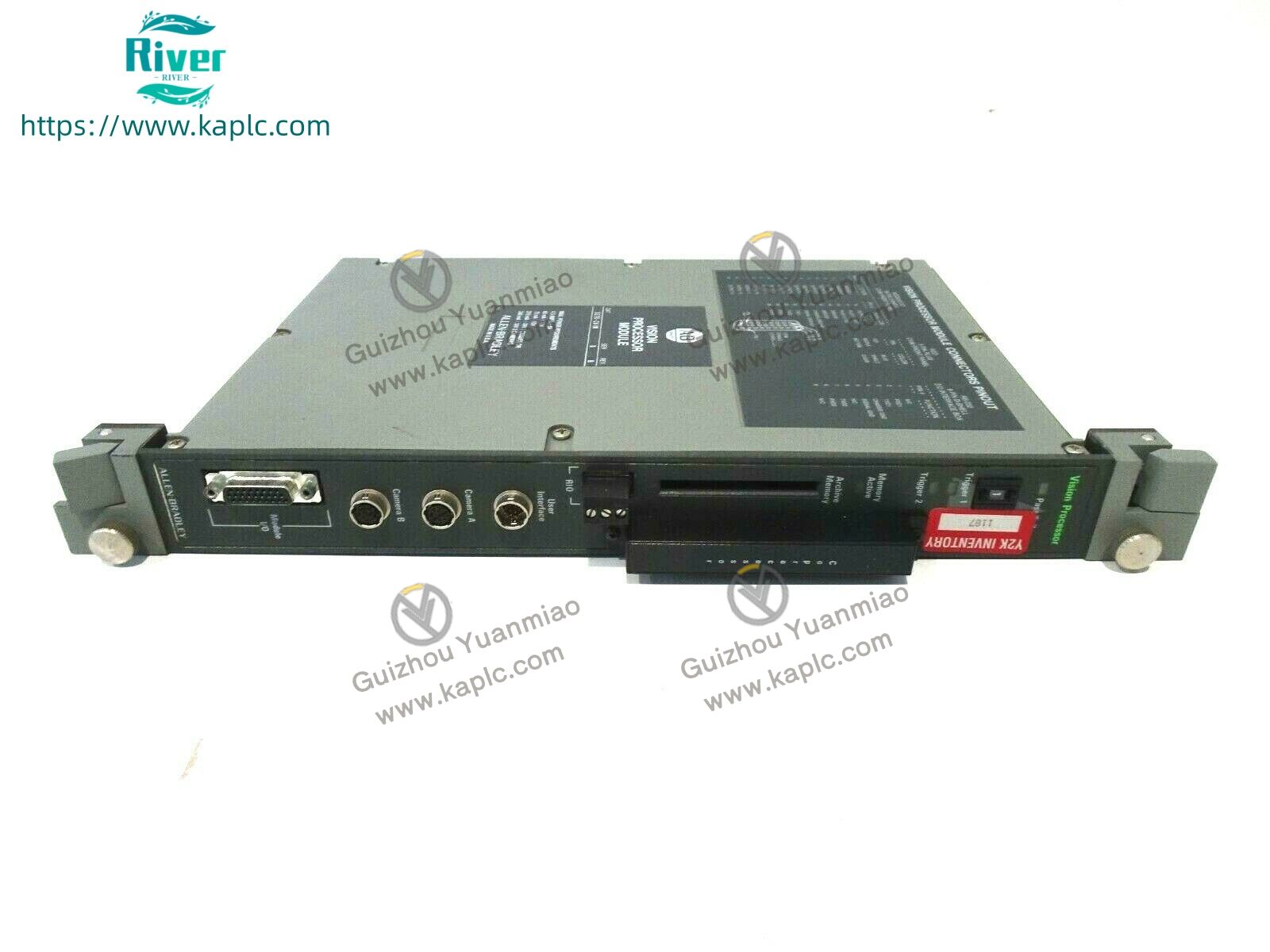

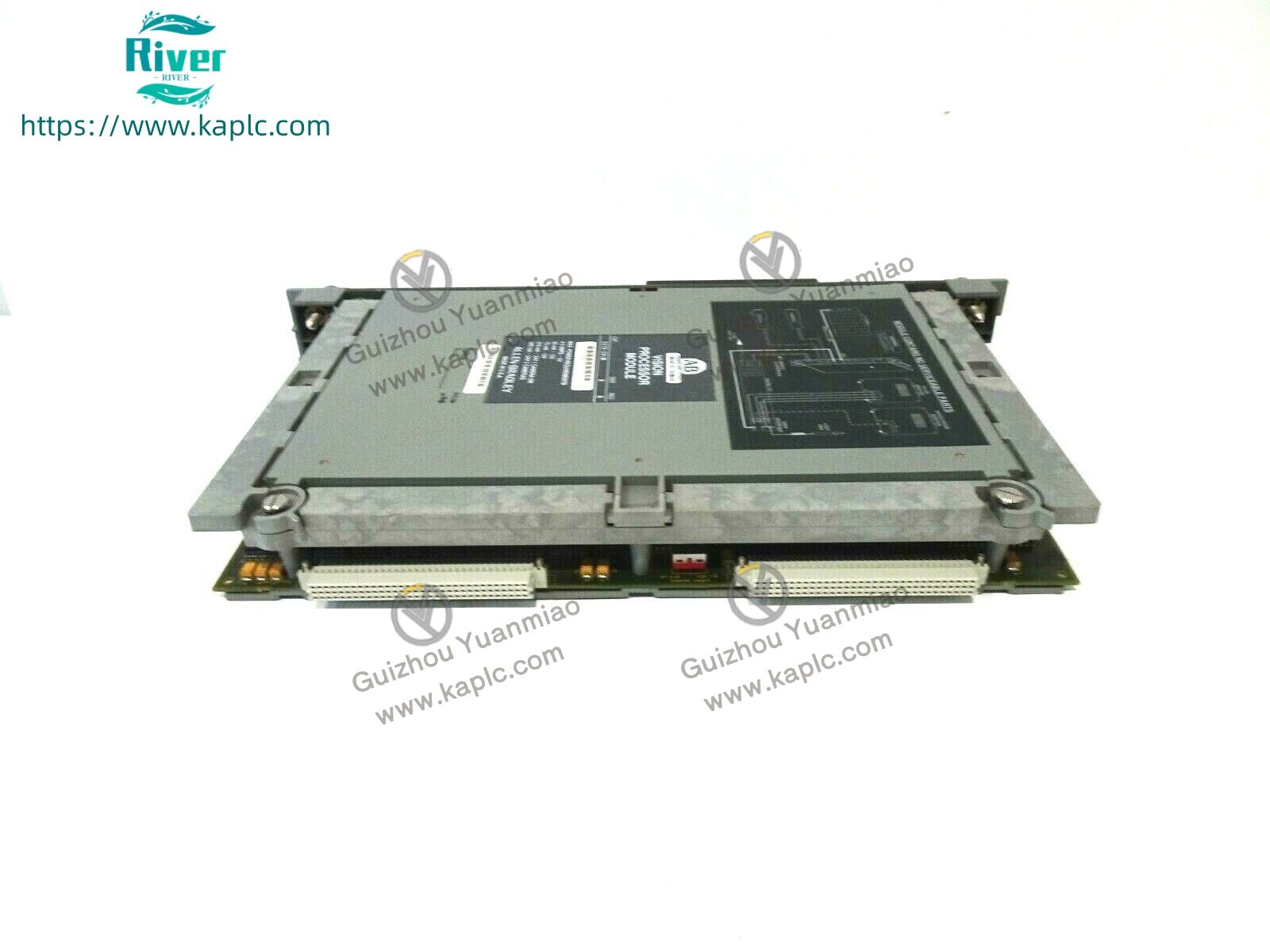

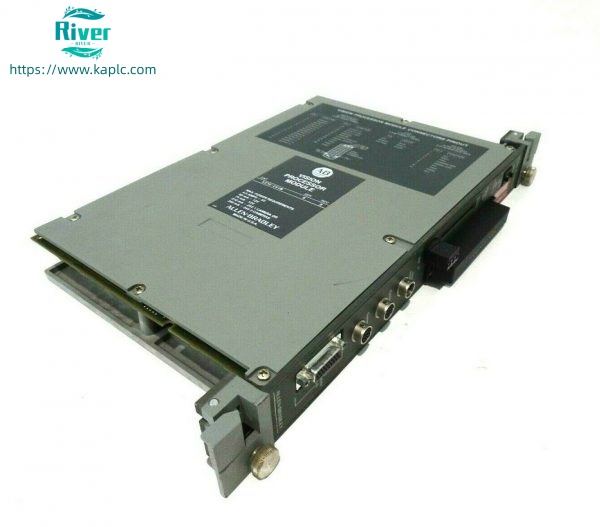

• 5370-CVIM belongs to Allen Bradley bulletin 5370 series vision processing module
• It acts as core control unit of classic industrial CVIM vision system
• Matches perfectly with 2801 series vision cameras to complete image collection and analysis
• Installed inside pyramid chassis to realize stable vision signal processing and data transmission

• This model has been phased out of production for old vision system maintenance and replacement

•


Core Features

• Able to connect and drive one or two industrial vision cameras
• Built in stable power supply circuit to provide power for external cameras
• High speed image data calculation and real time signal output function
• Equipped with complete status indication lights for easy fault checking
• Support memory card storage to save vision detection programs

• Industrial grade stable performance adapts to long time continuous operation

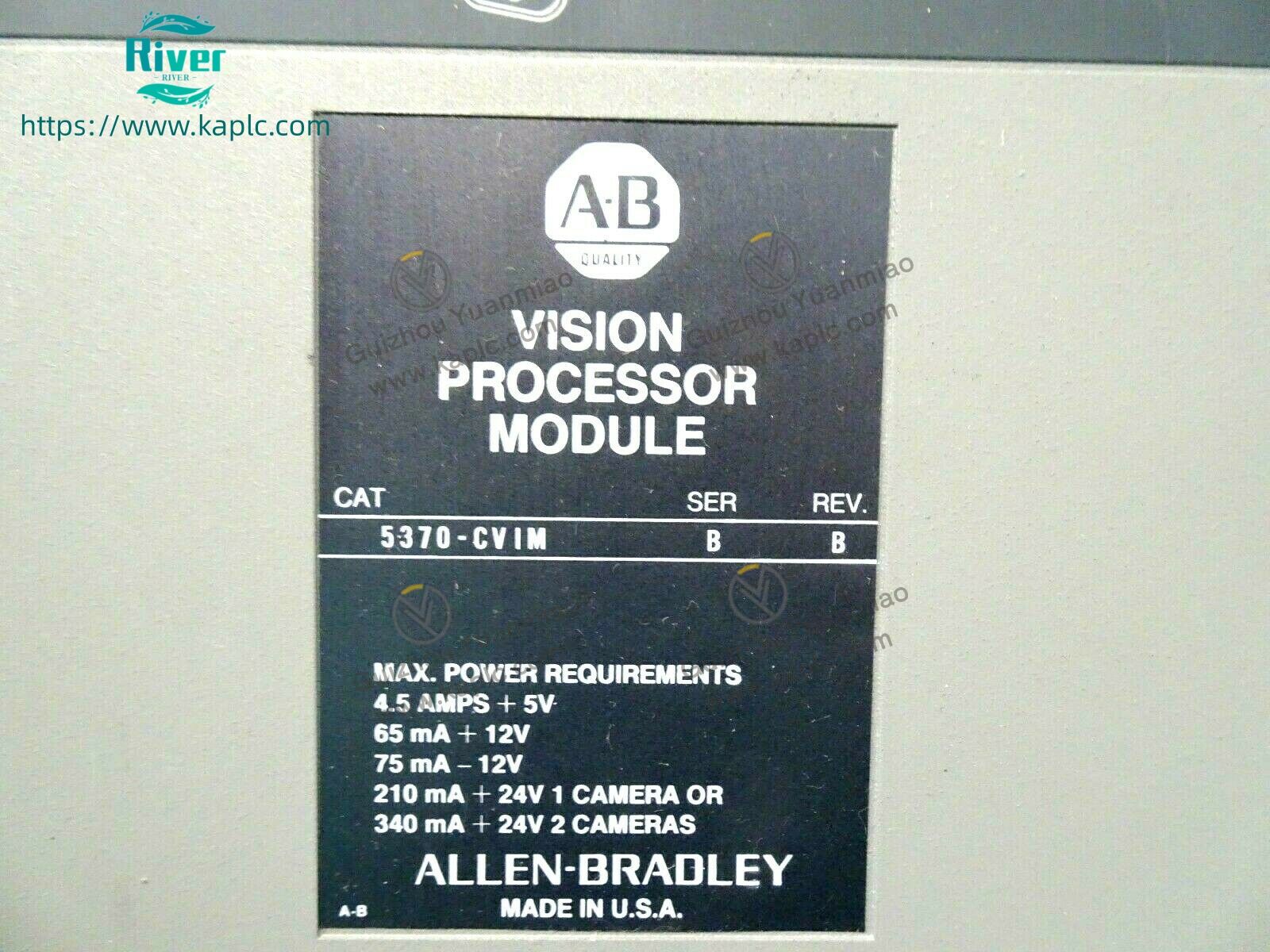

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 5370-CVIM
• Series: Bulletin 5370
• Applicable Device: 2801 series vision camera
• Working Voltage: 24VDC
• Installation Method: Chassis plug in type
• Working Temperature: 0°C~55°C
• Matching Accessory: 2801-MD4 memory card
• Condition: Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• Production line product appearance defect detection
• Automatic size measurement and position positioning
• Industrial assembly line visual identification and sorting
• Old factory automatic vision inspection system renovation

• Complete set matching use of CVIM vision control system

•


Our Advantages

• Strict function aging test before delivery
• Adequate stock support fast delivery
• Provide professional system matching guidance
• Cost effective price for long term cooperation
