Product Overview

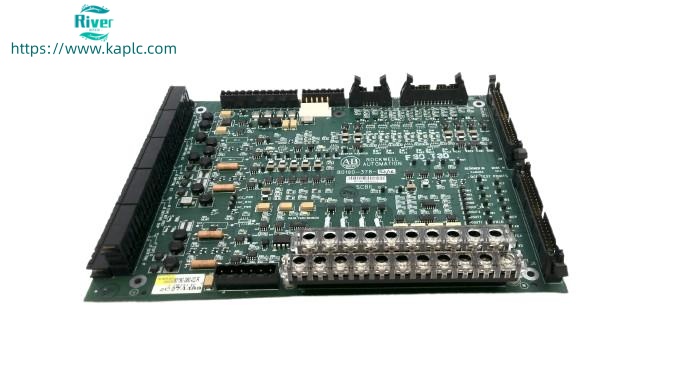

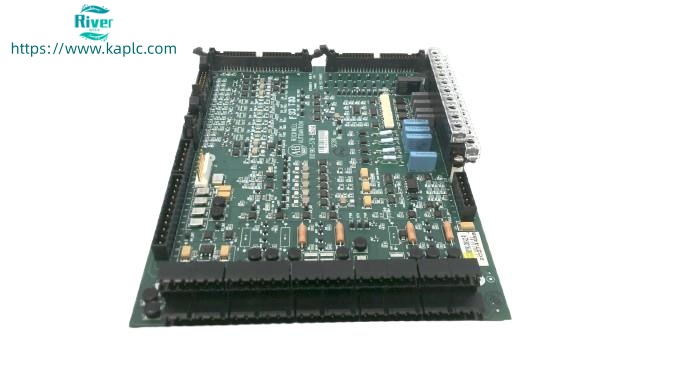

• 80190-378-51/12 is an industrial control/drive PCB board from Allen Bradley 80190 series
• Used for PLC I/O processing, inverter, servo drive or motion control units
• Designed for high-reliability signal conditioning and drive control in harsh environments

• Discontinued legacy part, available as refurbished/used for system maintenance

•


Core Features

• 4-layer industrial PCB design, integrated logic, signal conditioning and drive circuits
• Multi-channel digital/analog I/O, supports 16-point input/output
• 24V DC power supply, compatible with standard industrial voltage
• 12-bit resolution for analog signals, 0–10V DC / 4–20mA input range
• 500V AC signal isolation, NEMA 4X/12 protection rating

• Heavy-duty components for long-term stable operation in factory conditions

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 80190-378-51/12
• Series: 80190
• Board Type: Industrial control/drive PCB
• Power Supply: 24V DC ±10%
• Analog Input: 0–10V DC / 4–20mA, 12-bit resolution
• Digital I/O: 120V AC compatible
• Isolation Voltage: 500V AC
• Operating Temperature: 0°C~60°C
• Protection Rating: NEMA 4X/12
• Dimensions: 420×380×30mm
• Weight: 3.2kg
• Condition: Discontinued Refurbished/Used

• Warranty: 12 Months

•


Applications

• ControlLogix PLC system I/O expansion
• Inverter and servo drive control core board
• Industrial machine motion control interface
• Process control signal processing unit

• Legacy automation system replacement and repair

•
