Product Overview

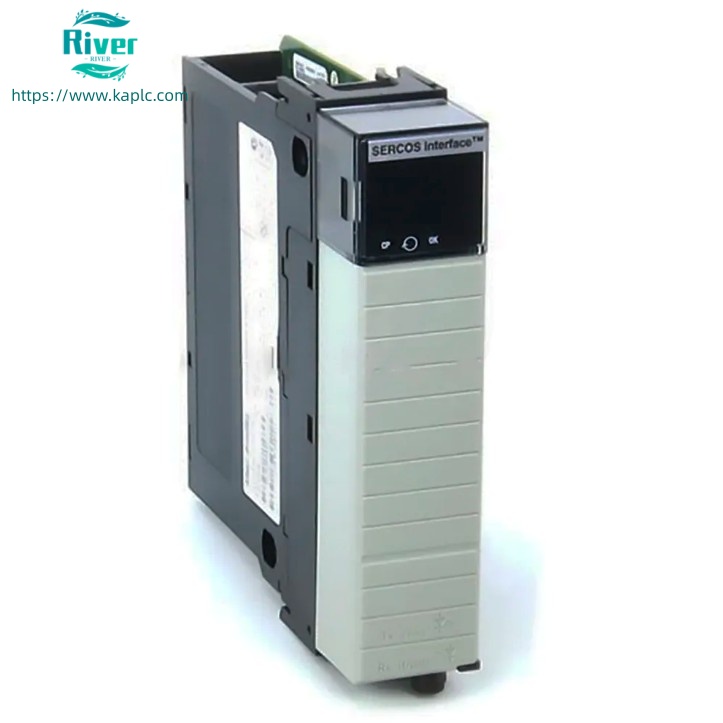

• 1756-M16SE is a high‑performance motion module from Allen‑Bradley ControlLogix series
• Provides SERCOS III fiber optic interface for up to 16 servo axes in one slot
• Designed for high‑speed, synchronized motion control with Kinetix drives
• Fits all 1756 ControlLogix chassis (A4/A7/A10/A13/A17)

• Commonly used for new builds and legacy system upgrades

•


Core Features

• SERCOS III fiber communication 4 Mbps or 8 Mbps
• Controls up to 16 axes per module
• Single‑mode fiber with ST connectors
• Synchronized motion update rate up to 2 kHz
• Supports position, speed, torque control modes
• Compatible with Kinetix 6000/6200/6500 servo drives
• Studio 5000/RSLogix 5000 programming
• Backplane communication over ControlLogix chassis
• No external power needed, draws power from chassis

• LED indicators for network and axis status

Technical Parameters

• Brand: Allen‑Bradley (Rockwell Automation)
• Part Number: 1756-M16SE
• Series: ControlLogix
• Module Type: Motion Control / SERCOS Interface
• Number of Axes: 16
• Communication: SERCOS III (IEC 61491)
• Data Rate: 4 Mbps / 8 Mbps selectable
• Interface: Fiber optic, ST connectors
• Compatible Drives: Kinetix 6000, 6200, 6500
• Chassis: 1756 series, 1 slot
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to +70°C
• Dimensions (H×W×D): approx 145 × 35 × 145 mm
• Weight: approx 0.36 kg
• Certification: UL, CE, cULus
• Condition: Discontinued / New Surplus / Refurbished

• Warranty: 12 Months

•


Applications

• Multi‑axis synchronized motion control
• High‑speed packaging and material handling
• Robotics and automated assembly lines
• CNC machine tools and metalworking
• Printing, converting and web handling
• Food & beverage processing machinery
