Product Overview

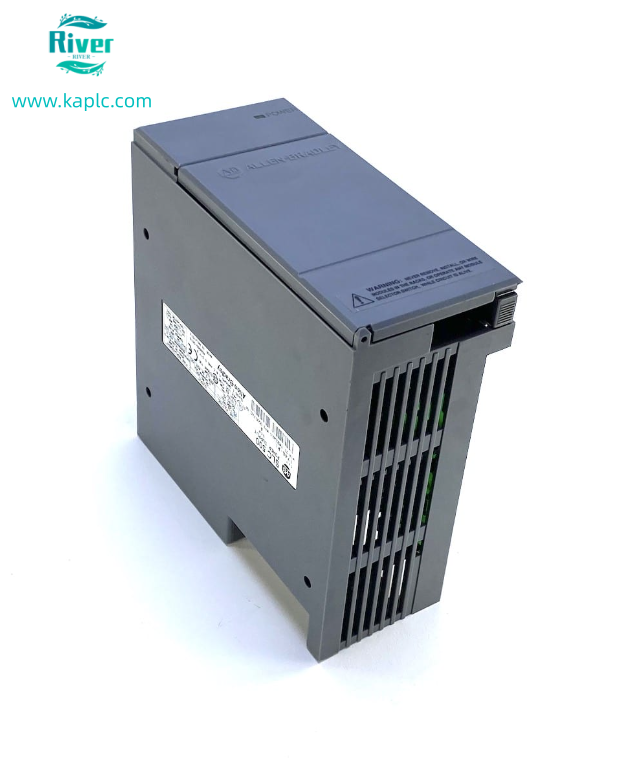

• 1746-P1 is a rack mounted power supply for SLC 500 series PLC
• Supplies stable power to backplane and all installed I/O modules
• Mounts on the left side of chassis without occupying I/O slots

• Mainly used for maintenance and replacement of legacy automation systems

•


Core Features

• Wide AC input voltage range for universal application
• Built in auxiliary 24VDC output for field devices
• LED indicators for power status and fault diagnosis
• Overload and short circuit protection for reliable operation

• Replaceable internal fuse for easy maintenance

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1746-P1
• Series: SLC 500
• Input Voltage: 85-132VAC / 170-265VAC
• Frequency: 47-63Hz
• Backplane Output: 5VDC 2A, 24VDC 0.46A
• Auxiliary Output: 18-30VDC 200mA
• Power Rating: 135VA typical
• Isolation Voltage: 1800VAC RMS 1 second
• Operating Temperature: 0°C~60°C
• Weight: 0.4kg
• Condition: Discontinued Refurbished

• Warranty: 12 Months

•


Applications

• Power supply for SLC 500 PLC control system
• Industrial cabinet power distribution
• Old production line equipment maintenance

• Spare part replacement for legacy control systems

•


Our Advantages

• Full performance test before delivery
• Sufficient stock and fast global delivery
• Reasonable price and stable performance
