Product Overview

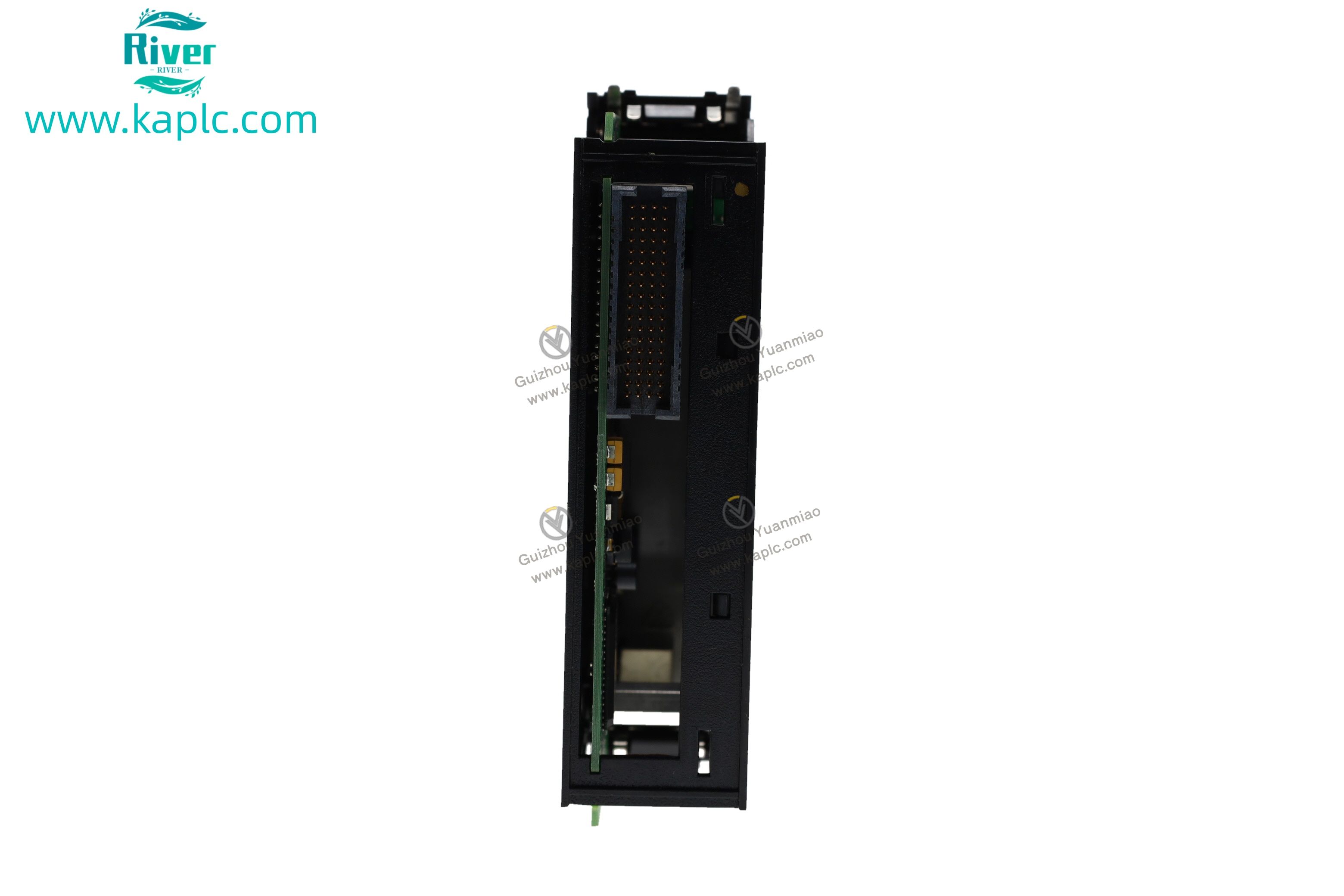

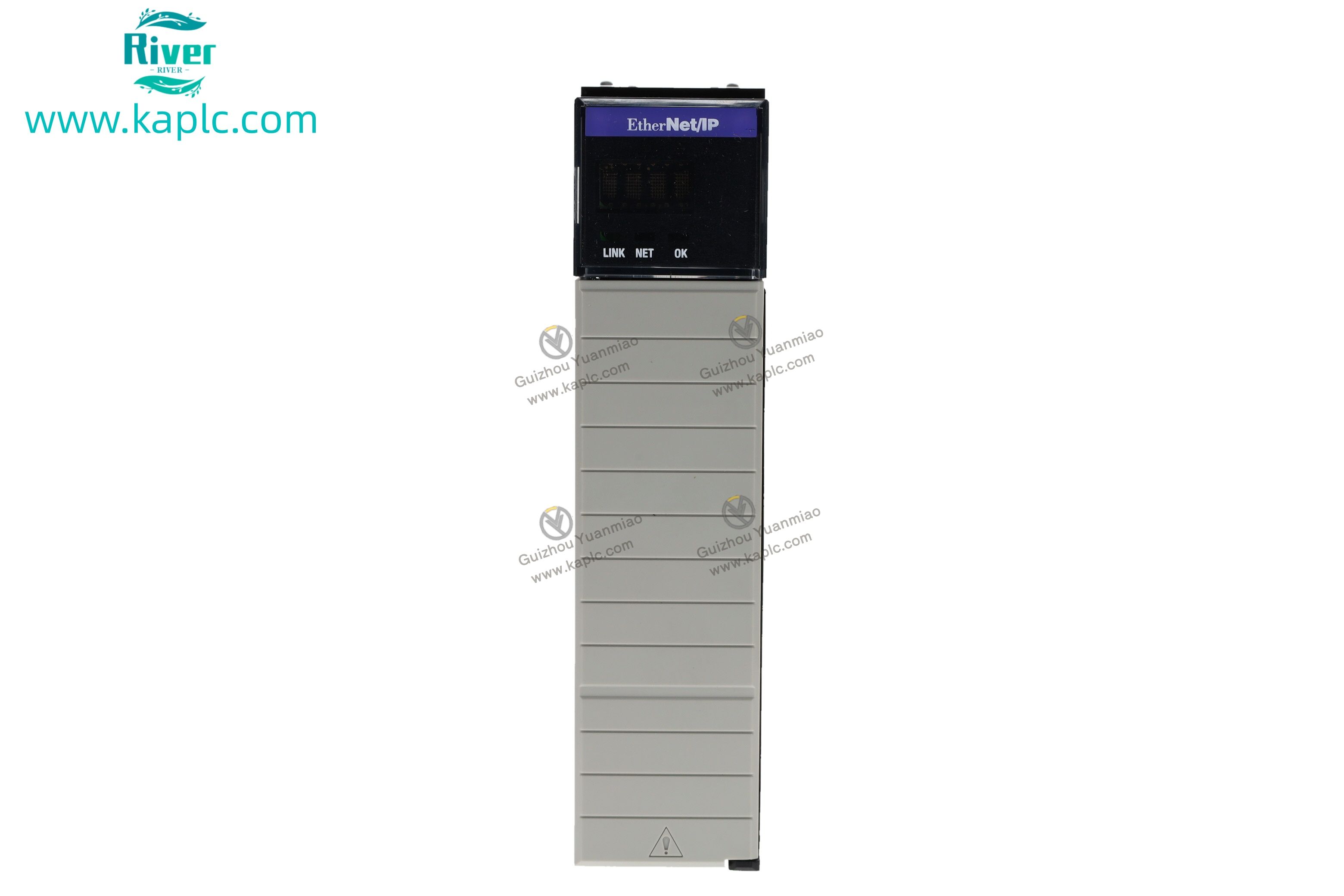

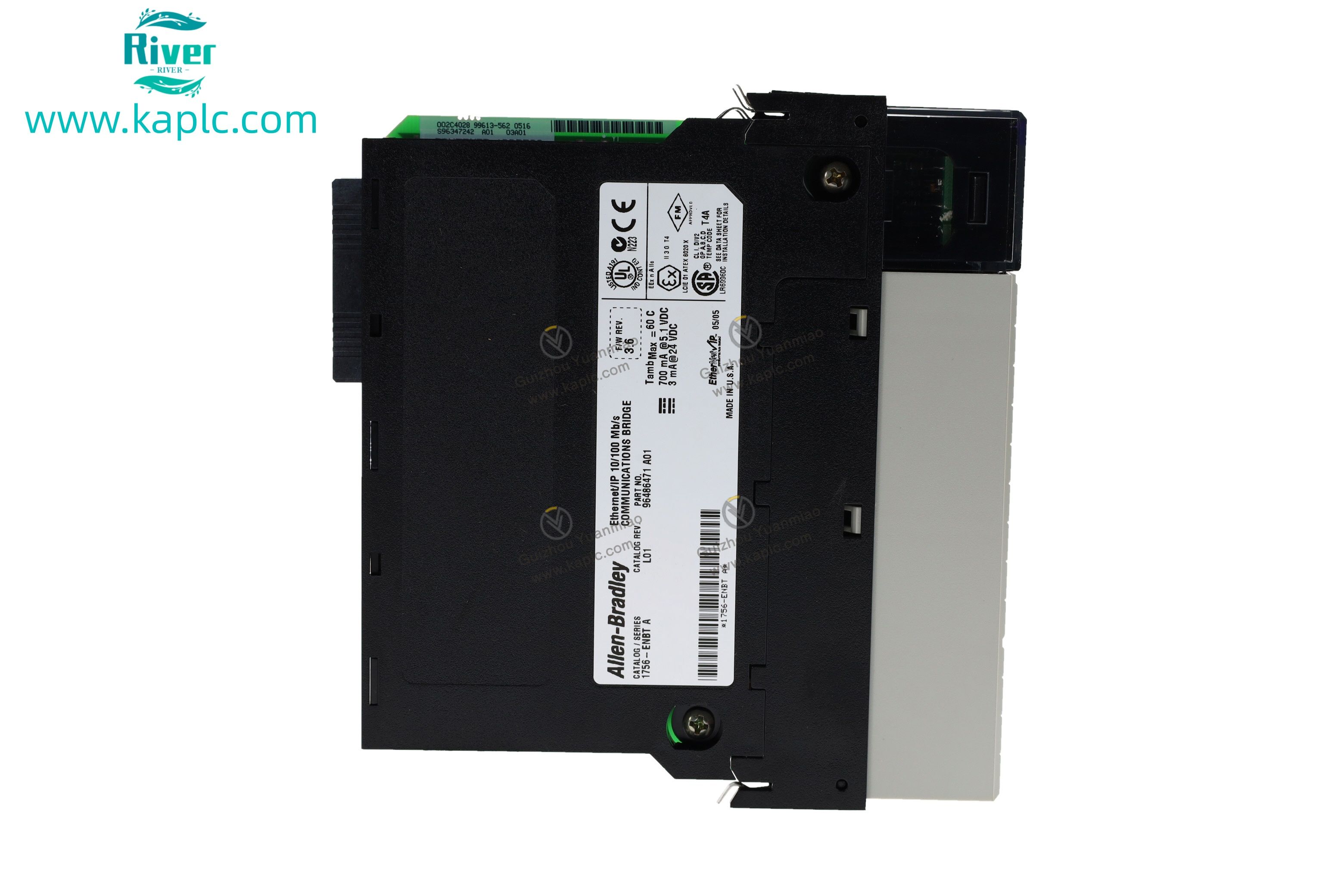

• 1756-ENBT/A is an EtherNet/IP bridge module for ControlLogix series
• Equipped with one RJ45 port for industrial Ethernet communication
• Supports data exchange between controllers, HMI and remote devices

• Product status: Discontinued, available as refurbished and surplus parts

•


Core Features

• 10/100 Mbps auto negotiation Ethernet port
• Supports up to 128 CIP connections and 64 TCP/IP connections
• Built in web server for remote configuration and diagnosis
• USB port for local parameter setting
• LED indicators for network link, activity and fault status

• Stable performance for long term industrial operation

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1756-ENBT/A
• Series: ControlLogix
• Port: 1 x RJ45, 1 x USB 1.1
• Communication Protocol: EtherNet/IP
• Backplane Current: 700mA @5.1VDC, 3mA @24VDC
• Power Dissipation: 3.7W
• Operating Temperature: 0°C~60°C
• Storage Temperature: -40°C~85°C
• Relative Humidity: 5%~95% non-condensing
• Weight: 0.32kg

• Certifications: CE, UL, CSA, RoHS

•


Applications

• Network connection for ControlLogix PLC systems
• Communication between PLC, HMI and SCADA system
• Distributed I/O and remote data transmission

• Transformation and maintenance of old automation networks

•


Our Advantages

• Full functional testing before delivery
• Sufficient stock and fast global delivery
• Competitive price and reliable quality
• 12 month warranty and technical support
