Product Overview

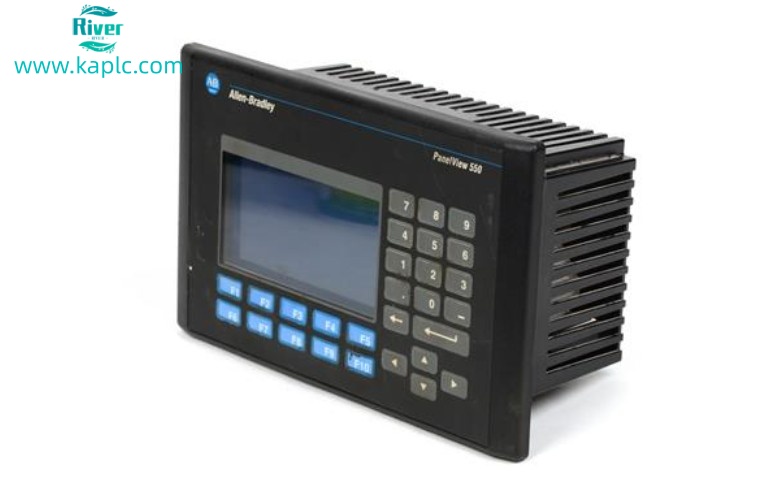

• 2711-K5A1 is a PanelView 550 series industrial HMI terminal by Allen‑Bradley

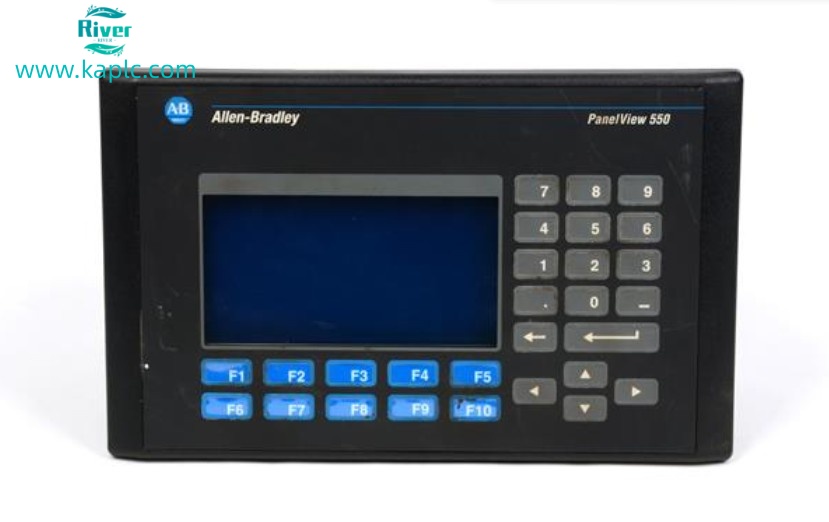

• 5.5‑inch monochrome STN display with physical keypad for process control
• Equipped with Remote I/O (RIO) and RS‑232 printer port; AC powered

• Status: Obsolete/Discontinued – available as refurbished or surplu

•


Core Features

• 5.5" monochrome display (256×128 pixels)
• Integrated 24‑key keypad with 10 programmable function keys (F1–F10)
• Remote I/O (RIO) communication interface
• RS‑232 port for printer connection or data transfer
• 85–264V AC wide‑range power supply
• Panel mount design for industrial control panels

• Memory: 170 KB application runtime, 240 KB nonvolatile RAM

Technical Parameters

• Brand: Allen‑Bradley / Rockwell Automation
• Part Number: 2711-K5A1
• Series: PanelView 550
• Display: 5.5" monochrome STN, 256×128 pixels
• Input: 24‑key tactile keypad (F1–F10 programmable)
• Communication: Remote I/O (RIO), RS‑232
• Power Supply: 85–264V AC, 50/60 Hz
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C
• Humidity: 5%–95% non‑condensing
• Dimensions (W×H×D): 266 × 167 × 106 mm
• Weight: ~1.2 kg

• Certifications: CE, UL, CSA

•


Applications

• Industrial machine control and process monitoring
• Manufacturing lines, material handling, and packaging equipment
• Retrofit and replacement for older Allen‑Bradley HMI systems

• Factory floor operator interface with keypad input preference

•


Compatibility & Replacement

• Compatible with Allen‑Bradley PLCs via RIO (ControlLogix, PLC‑5, SLC 500)
• Direct replacement for earlier PanelView 550 keypad models
• Common replacements: 2711‑K5A2, 2711P‑K4M20D8 (PanelView Plus)
