Product Overview

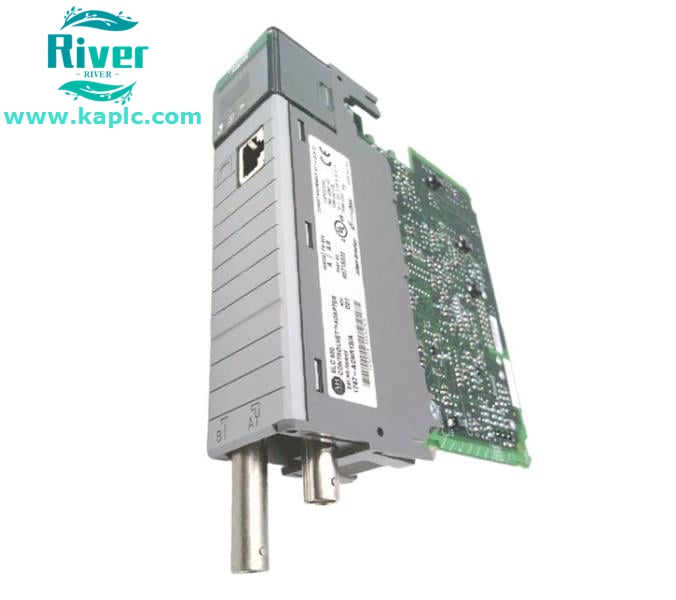

• 1747-ACNR15 is a ControlNet redundant media adapter for SLC 500 series
• Connects 1746 I/O racks to ControlNet industrial network
• Equipped with dual BNC ports for redundant network connection

• Product status: Discontinued, available as refurbished and surplus parts

•


Core Features

• Supports ControlNet protocol with 5 Mbps communication speed
• Dual BNC ports for redundant network to enhance system reliability
• Built-in NAP port for convenient network expansion
• Rotary switch for easy network address setting
• LED indicators for network link and fault diagnosis

• Strong anti-interference performance for industrial environments

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 1747-ACNR15
• Series: SLC 500
• Protocol: ControlNet
• Communication Speed: 5 Mbps
• Ports: 2 x BNC, 1 x NAP
• External Power: 19.2-31.2VDC
• Backplane Current: 900mA @5VDC
• Isolation Voltage: 850VDC
• Operating Temperature: 0°C~60°C
• Storage Temperature: -40°C~85°C
• Relative Humidity: 5%~95% non-condensing
• Weight: 1.0kg

• Certifications: CE, UL, CSA, RoHS

•


Applications

• Network connection for SLC 500 and 1746 I/O systems
• Construction of high-reliability redundant ControlNet network
• Remote data transmission and distributed I/O control

• Maintenance and retrofit of legacy automation equipment

•


Our Advantages

• Full functional testing before delivery
• Sufficient stock and fast global delivery
• Competitive price and reliable quality
• 12 month warranty and technical support
