Product Overview

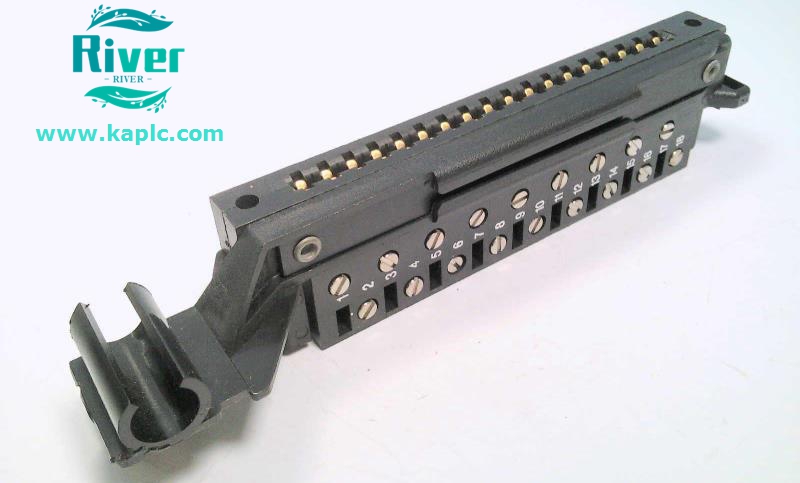

• 1771-WF is a field wiring arm for Allen Bradley 1771 PLC-5 series I/O modules
• Used for quick and secure field wiring connection, simplifies module replacement

• Product status: Discontinued, available as refurbished and surplus units

•


Core Features

• 18 terminals, gold-plated contacts for high signal integrity
• No external power required, passive wiring component
• Conformal-coated PCB for durability in harsh environments
• Keyed connectors to prevent mismating with incompatible modules

• Allows module hot-swap without disconnecting field wiring

Technical Parameters

• Brand: Allen Bradley Rockwell Automation

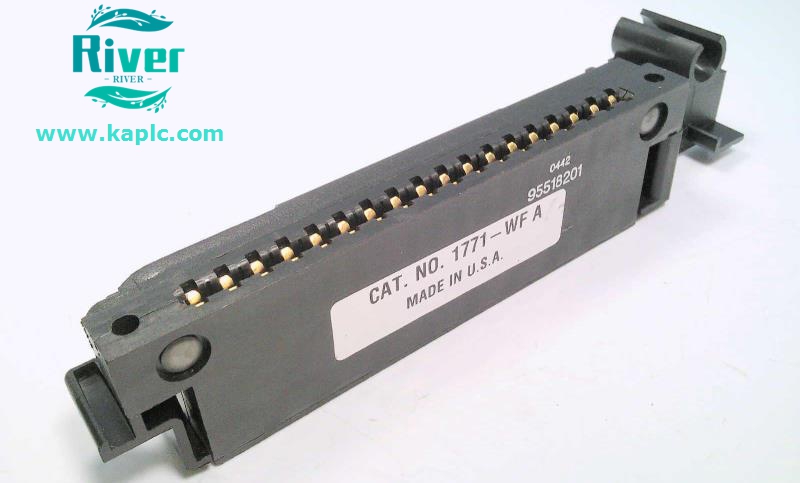

• Part Number: 1771-WF
• Series: 1771 PLC-5
• Terminal Count: 18
• Contact Material: Gold-plated
• Dimensions: 115×317×160mm
• Weight: 0.1kg

• Compatibility: 1771-IAN, 1771-IR, 1771-OBN, etc.

•


Applications

• Field wiring termination for 1771 series digital/analog I/O modules
• Industrial automation control panels, process control systems
• Equipment maintenance and module replacement scenarios

• Legacy PLC-5 system wiring optimization and upgrade

•


Our Advantages

• Tested and in good working condition
• In stock with fast global delivery
• Competitive price and reliable quality
• 12 month warranty and technical support
