Product Overview

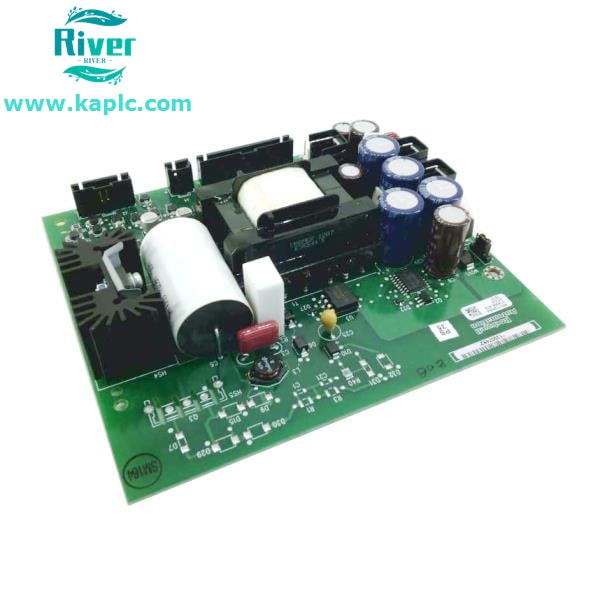

• 314066-A02 is a power supply board for Allen Bradley PowerFlex 700 series AC drives
• It provides stable internal DC power for the drive control system and logic circuits

• Product status: Discontinued, available as refurbished and surplus units

•


Core Features

• Designed for PowerFlex 700 Frame 6–8 high power drives
• Converts AC input to regulated DC voltages for control and communication boards
• Built-in over voltage over current and short circuit protection
• Conformal coated PCB for reliability in harsh industrial environments

• Compact plug in design for easy replacement

Technical Parameters

• Brand: Allen Bradley Rockwell Automation
• Part Number: 314066-A02
• Series: PowerFlex 700
• Type: Power Supply Board
• Compatibility: PowerFlex 700 400/480V Frame 6–8
• Input Voltage: 380–480VAC
• Output Voltage: 24VDC 5VDC
• Weight: 0.2kg

• Mounting: Plug in to drive backplane

•


Applications

• PowerFlex 700 drive systems for pumps fans conveyors and compressors
• Industrial automation and process control panels

• Maintenance and retrofit of legacy PowerFlex 700 installations

•


Our Advantages

• Full functional testing before delivery
• In stock with fast global shipping
• Competitive price and reliable quality
• 12 month warranty and technical support
