Product Overview

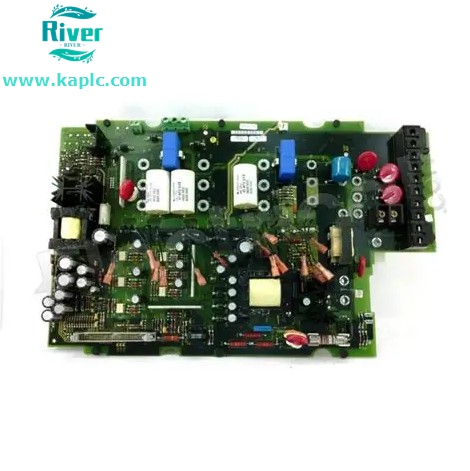

• 1336-BDB-SP11C is a gate driver PCB manufactured by Allen Bradley Rockwell Automation
• It converts low level control signals into drive pulses to control IGBT modules inside the drive
• Suitable for 1336 series AC drives with 7.5HP 460VAC Frame B and Series C and above

• Product status discontinued available as refurbished and surplus units

•


Core Features

• Professional gate driver board for 1336 series variable frequency drives
• Amplifies control signals to ensure stable operation of IGBT modules
• Matches 7.5HP power rating and 460VAC working voltage
• Standard interface for easy installation and replacement

• Industrial circuit design adapts to harsh working conditions

Technical Parameters

• Brand Allen Bradley Rockwell Automation
• Part Number 1336-BDB-SP11C
• Type Gate Driver PCB
• Compatible Drive 1336 series AC drive Frame B Series C+
• Rated Power 7.5HP
• Rated Voltage 460VAC

• Weight approx 1.3kg

•


Applications

• Repair and replacement of 1336 series AC drives
• Motor control for fans pumps conveyors and compressors

• Maintenance of legacy industrial automation systems

•


Our Advantages

• Full function testing before delivery
• Fast global shipping and competitive price
• 12 month warranty for refurbished products
• Professional technical support for installation
