Product Overview

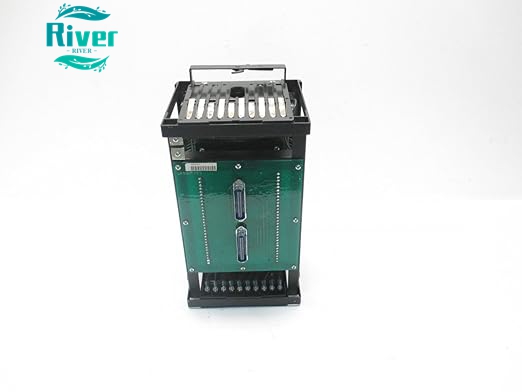

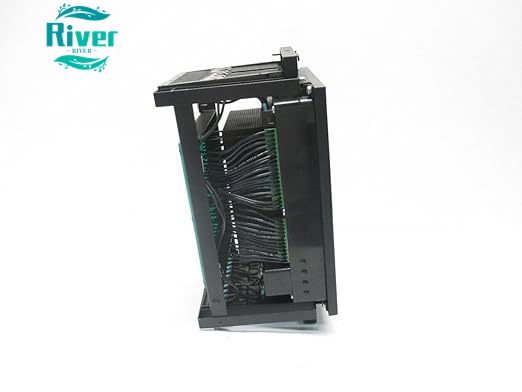

• 269 PLUS-D/O-100P-125V belongs to GE Multilin 269Plus intelligent motor management relay series made in USA
• D/O stands for digital output contact configuration 100P refers to built-in 100Ω platinum RTD temperature detection port operating auxiliary supply 125VDC

• Integrates motor protection real time monitoring fault record and Modbus communication functions original production phased out stock includes new surplus used and fully calibrated refurbished units

•


Core Features

• Multi protection logic covers overload short circuit phase loss phase unbalance under over voltage stall locked rotor protection with 8 selectable overload thermal curves
• 100Ω PT100 RTD input to monitor motor winding temperature avoid thermal burnout

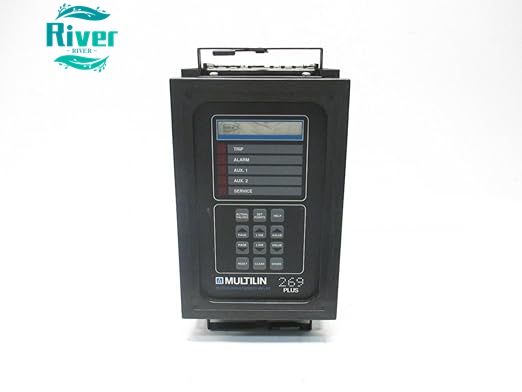

• Onboard LED display plus 12 key local keypad for parameter setting fault check and running data reading
• Modbus RTU communication for remote access upper DCS PLC system data upload and remote control

• Built in digital output relay contacts for external trip alarm signal driving cabinet interlock loop

Technical Parameters

• Brand GE Multilin General Electric
• Part Number 269 PLUS-D/O-100P-125V
• Type Digital Motor Protection Relay
• Auxiliary Control Power 125VDC
• RTD Specification 100Ω Platinum PT100
• Communication Modbus RTU
• Working Frequency 50/60Hz for three phase motor
• Working Temperature -40℃~+70℃
• Mounting Standard panel cutout installation

• Approximate Weight 0.75kg

•


Applications

• Pump fan compressor conveyor three phase motor protection for power plant metallurgy petrochemical water treatment industry
• Legacy GE motor control center MCC cabinet spare replacement and system retrofit

• Critical equipment motor safety monitoring for factory production line and substation auxiliary system

•


Our Advantages

• Full function calibration and aging test before shipment
• 12 month warranty for refurbished goods
• Global fast delivery competitive unit cost
• Professional parameter setup and onsite matching technical support
