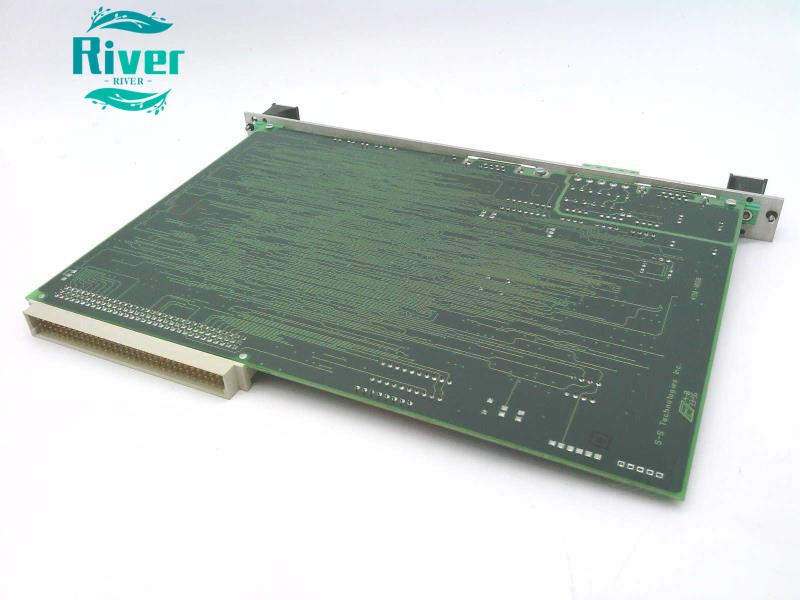

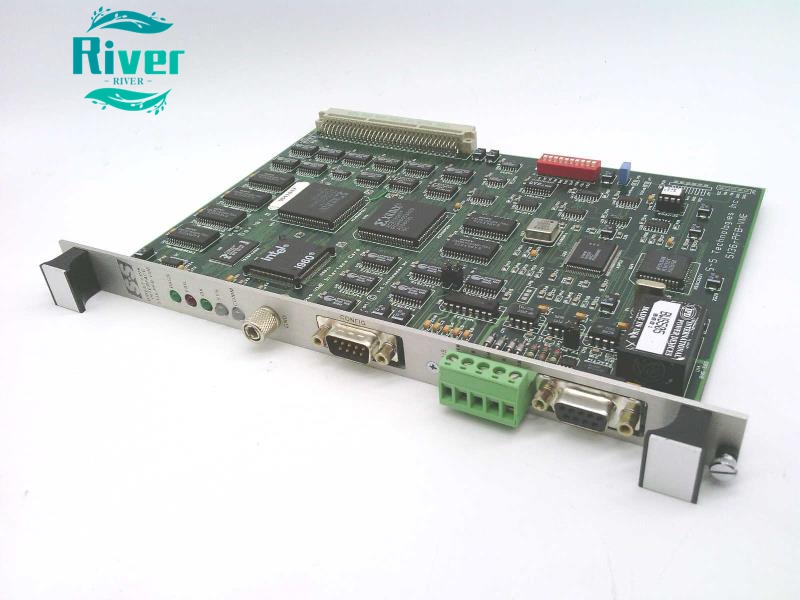

5136-PFB-VME SST PROFIBUS VME interface board, multi-mode DP master/slave/FDL, onboard i960 CPU, full test refurbished & new surplus for legacy VME DCS retrofit

Product Overview

• PN：5136-PFB-VME | Brand：SST(Molex/Woodhead, GE Fanuc compatible)
• Standard 6U VME form factor VMEbus to PROFIBUS DP gateway card, discontinued original production, supply new surplus & fully tested refurbished units

• Realize data exchange between VME backplane host system and field PROFIBUS DP slave devices; supports simultaneous DP Master, DP Slave & FDL Layer2 communication operation

•


Core Features

• Onboard Intel i960 32-bit RISC processor + 512KB local RAM, independent protocol processing to offload VME CPU load
• Full PROFIBUS baud rate coverage:9.6K/19.2K/93.75K/187.5K/500K/750K/1.5M/3M/6M/12Mbps
• 1×DB9 PROFIBUS DP field port + VME P1 backplane connector; 256KB shared memory for VME data mapping
• Onboard diagnostic LED indicators for bus status, power & communication fault detection; anti-interference industrial circuit design

• Compliant with VMEbus Rev.C.1 & certified PROFIBUS conformance, CE/RoHS approved

Technical Parameters

• Part No:5136-PFB-VME
• Form Factor:6U VME standard board
• Power Input:+5VDC from VME backplane
• Interface:1×DB9 PROFIBUS-DP, VME P1/J1 bus interface
• Working Temp:-40℃ ~ +85℃, non-condensing 5~95%RH
• Approx Weight:0.5kg

• Dimension:160×100×233mm

•


Applications

• Power plant, metallurgy, petrochemical legacy VME DCS/PLC system PROFIBUS field bus expansion
• GE Fanuc VME control rack retrofit, drive & remote IO PROFIBUS communication spare replacement

• Railway, heavy machinery old VME automation cabinet maintenance upgrade

•


Our Advantages

• Full function aging & communication test before shipment
• 12-month warranty for refurbished modules
• Global DHL/Fedex fast delivery, competitive pricing
• Technical support for driver configuration & site commissioning
