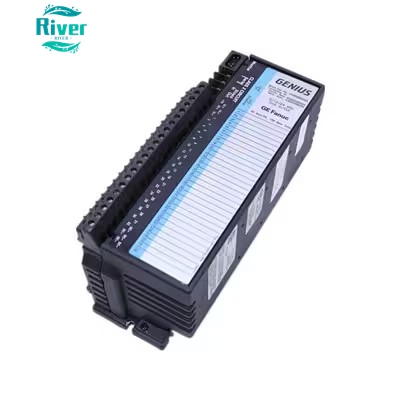

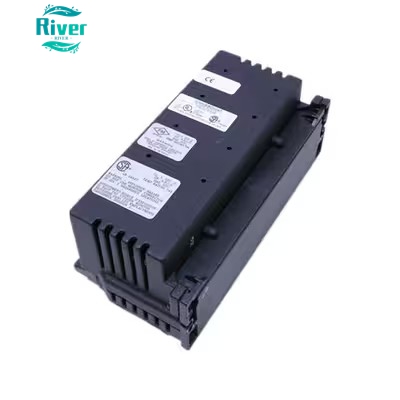

IC660BBD025 GE Genius 32CH Sink Mixed I/O Block In Stock

Short Description:

IC660BBD025 GE Fanuc Genius distributed sink digital I/O block, 32 configurable

Send email to us

Product Detail

IC660BBD025 GE Fanuc Genius distributed sink digital I/O block, 32 configurable I/O 5/12/24VDC, compatible Series90-30/90-70 PLC, fully tested refurbished with 12-month warranty ready stock

Product Overview

PN：IC660BBD025｜Brand：GE Fanuc / Emerson｜Series：Genius Distributed I/O System
Core: 32-channel sink-type mixed discrete I/O block for Genius fieldbus, all channels freely software-configured as input/output arbitrary combination, build remote distributed I/O stations paired with GE 90-30/90-70/RX3i/RX7i main PLC
Original production discontinued, supply fully-tested refurbished & new surplus spare parts for legacy equipment maintenance replacement

Core Features

32 universal sink I/O points, flexible IO partition by programming without hardware modification; support 5VDC TTL /12VDC /24VDC three standard industrial DC signal
Built-in Genius bus terminal + HHM handheld monitor port for on-site parameter debugging; max bus communication distance up to 2286m
Independent per-channel self-resetting short-circuit/overload/overheat protection, single faulty channel isolated without whole block shutdown; 850V block-to-bus isolation anti-interference
Individual LED indicator per I/O channel + RUN/COMM/FAULT block status LED for rapid field troubleshooting; optional input filter 1~100ms to eliminate field signal jitter
DIN rail mounting, compact modular design for on-machine nearby installation to shorten field wiring length

Technical Parameters

Part No: IC660BBD025
I/O Count:32 configurable sink discrete channels
Supported Voltage:5VDC(4.9~5.3V) /12/24VDC(10~30V)
Single channel output current:0.5A continuous, peak inrush 4A(10ms max); total max output 16A
Input response time:1.4ms typical
Power dissipation:Min11W(8IN), Max18W(32OUT)
Operating Temp:0℃~+60℃, Storage:-40℃~+100℃, 5~95%RH non-condensing
Approx Net Weight:0.39kg
Certification:UL, CE, CSA certified

Applications

Petrochemical, power plant, water treatment Genius bus remote cabinet spare replacement
Metallurgy, packaging, textile old production line distributed I/O renovation
GE Series90 PLC system expansion, field sensor/valve/motor contact signal collection & drive control

Our Advantages

Full channel function aging + communication calibration before delivery
12-month global warranty for refurbished units
DHL/Fedex global door-to-door fast shipment
Professional wiring, Genius address setup & channel configuration technical support
