IC670CHS001 GE Field Control Barrier I/O Base Discontinued Refurbished & New Surplus In Stock

Short Description:

IC670CHS001 GE Fanuc Field Control barrier-type I/O terminal base, holds 2pcs IC

Send email to us

Product Detail

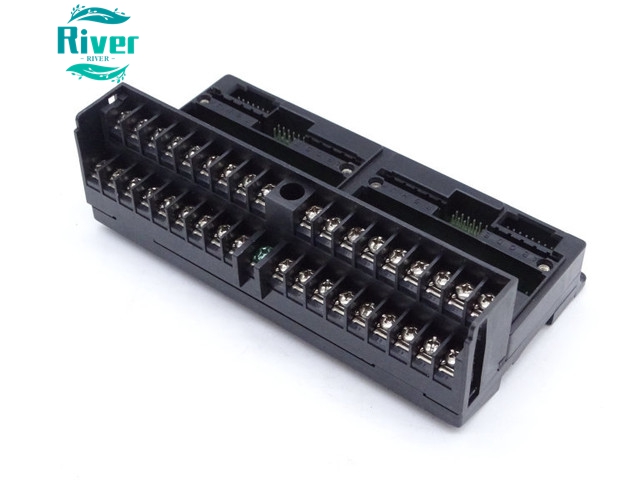

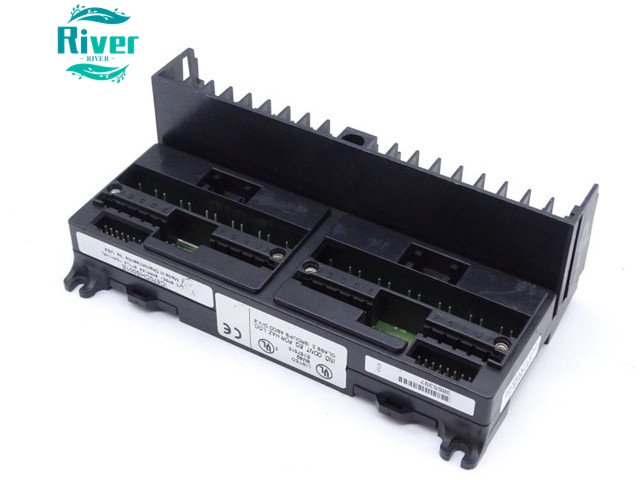

IC670CHS001 GE Fanuc Field Control barrier-type I/O terminal base, holds 2pcs IC670 discrete/analog I/O modules with 37 wiring terminals, DIN rail mount, fully tested refurbished with 12-month global warranty ready stock

Product Overview

PN：IC670CHS001｜Brand：GE Fanuc / Emerson｜Series：Field Control Distributed I/O System
Core: Barrier style I/O carrier base, physical carrier + field wiring terminal + internal backplane bus integration; single base supports 2 pieces IC670 series pluggable I/O modules (discrete/analog mixed optional)
Original production discontinued; supply tested refurbished & new surplus for legacy equipment maintenance replacement

Core Features

Total 37 barrier wiring terminals, each terminal accepts max 2 copper wires (AWG14~AWG22 solid/stranded cable), recommended screw torque:8 in-lb
Module fixed by bolt locking, replace single I/O card directly without disconnecting field wiring, convenient field maintenance
Built-in internal backplane bus connector, multiple bases cascaded to expand remote I/O station; horizontal DIN rail or direct cabinet panel mounting
IP20 industrial grade, anti-vibration sealed structure, wide temperature adapt for harsh factory environment

Technical Parameters

Part No: IC670CHS001 (common suffix: E / H / CAG)
Max module capacity: 2 slots per base
Terminal quantity:37pcs barrier terminals
Single terminal rated current:10A max
Operating Temp:0℃~+60℃; Storage:-40℃~+85℃, RH5%~95% non-condensing
Net Weight:≈0.34kg
Dimension:205×156×56.5mm
Certification:UL, CE, CSA certified

Applications

Power plant, water treatment, petrochemical FieldControl remote I/O cabinet spare replacement
Packaging, textile, metallurgy old production line distributed I/O retrofit
GE RX3i/Series90 PLC matching remote field I/O station construction
