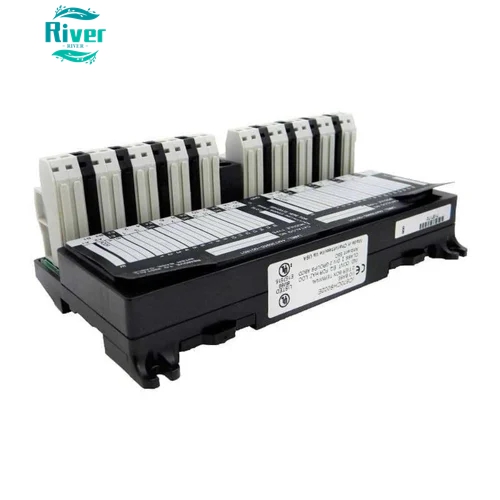

IC670CHS002 GE Field Control Box-Type I/O Base Hot-Swap Terminal Base Discontinued Refurbished & New Surplus In Stock

Short Description:

IC670CHS002 GE Fanuc box terminal I/O base, 2-slot for IC670 series discrete/ana

Send email to us

Product Detail

IC670CHS002 GE Fanuc box terminal I/O base, 2-slot for IC670 series discrete/analog modules, 37 box screw terminals, full hot-swap support, DIN rail mount, tested refurbished with 12-month warranty available stock

Product Overview

PN：IC670CHS002｜Brand：GE Fanuc/Emerson｜Series：Field Control Distributed Remote I/O
Core：Box enclosed screw terminal type I/O carrier base，holds 2pcs IC670 series pluggable I/O modules(digital/analog mixed optional), built-in backplane bus & field wiring terminal integration, core upgrade vs barrier-type IC670CHS001: support online hot swap I/O modules under powered status
Original production phased out; supply tested refurbished & new surplus spare for legacy equipment maintenance replacement

Core Features

Total 37 box-style enclosed screw terminals, single terminal: 1×AWG14 or 2×AWG18~AWG22 wires, recommended tightening torque:4.5 in-lb, max terminal rated current 10A
Full hot swap function: install/uninstall upper I/O modules without cutting field power, reduce field downtime during maintenance
Modules fixed by locking screw against factory vibration; multiple bases cascaded via internal bus to expand remote I/O station; DIN rail or cabinet direct panel mounting
IP20 industrial grade, enclosed terminal structure prevents loose wire short circuit, better dustproof than CHS001 barrier base

Technical Parameters

Part No: IC670CHS002 (common suffix: E/F/V)
Slot quantity: 2 slots per base
Terminal:37 box screw terminals
Ambient temp:0℃~+55℃; Storage:-40℃~+85℃, RH5%~95% non-condensing
Net weight:≈0.3kg
Dimension:202×153×55mm
Certification:UL, CE, CSA

Compatibility

Match all IC670 series I/O modules: IC670MDL discrete input/output, IC670ALG analog I/O series
Cooperate with IC670PBI001 Genius bus interface module to build remote FieldControl station for GE RX3i / Series90-30 PLC system

Applications

Power plant, petrochemical, water treatment, metallurgy old FieldControl remote I/O cabinet spare replacement
Packaging & textile production line PLC remote IO retrofit project
