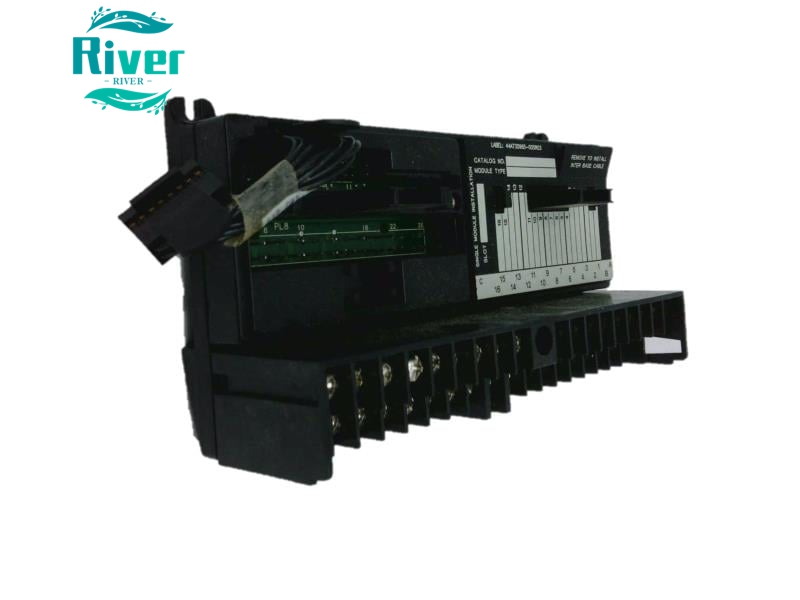

IC670CHS101 GE Field Control Barrier Hot-Swap I/O Base Discontinued Refurbished & New Surplus In Stock

Short Description:

IC670CHS101 GE Fanuc barrier type hot-swappable I/O base, 2-slot for IC670 serie

Send email to us

Product Detail

IC670CHS101 GE Fanuc barrier type hot-swappable I/O base, 2-slot for IC670 series I/O modules,37 barrier terminals, online hot swap support, DIN rail mount, tested spare with 12-month warranty available stock

Product Overview

PN：IC670CHS101｜Brand：GE Fanuc/Emerson｜Series：Field Control Distributed Genius Remote I/O
Core：Barrier-style hot-swap I/O carrier base, fits max 2pcs IC670 discrete/analog/RTD I/O modules, integrated backplane bus + field wiring terminal, upgrade of IC670CHS001 with full hot swap function
Original production discontinued; supply tested refurbished & new surplus for legacy equipment maintenance replacement

Core Features

Total 37 barrier isolated terminals, terminals A/B reserved for station power supply, rest for field signal wiring
Wire spec:1×AWG14 or 2×AWG18~AWG22 copper wire, tightening torque:8 in-lb, single terminal rated current 10A
Full online hot swap: replace upper I/O modules under powered without cutting field power, reduce plant downtime
Barrier isolated terminal design, prevent short circuit between adjacent wiring, better anti-interference vs box terminal CHS002
Locking screw fixed module, anti-vibration; multiple bases cascaded via internal bus for remote I/O expansion; DIN rail or cabinet panel installation
IP20 industrial grade, dustproof and moisture resistant for harsh factory environment

Technical Parameters

Part No: IC670CHS101 (common suffix:A/C/ACA1)
Slot quantity:2 slots per base
Terminal count:37 barrier terminals
Operating temp:0℃~+55℃; Storage:-40℃~+85℃, RH5%~95% non-condensing
Net weight:≈0.51kg
Dimension:206×155×57mm
Certification:UL, CE, CSA

Compatibility

Compatible with full IC670 series modules:IC670MDL digital I/O,IC670ALG analog I/O,IC670RTD thermal module
Match IC670PBI001 Genius bus adapter to build remote I/O station for GE RX3i / Series90-30 PLC system

Applications

Petrochemical, power plant, water treatment old FieldControl remote I/O cabinet spare replacement
Metallurgy, packaging, textile legacy production line PLC remote IO retrofit project
