Product Overview

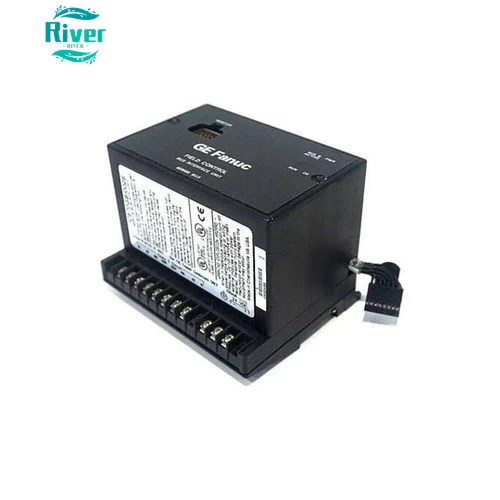

• PN：IC670GBI002｜Brand：GE Fanuc/Emerson｜Series：FieldControl Genius distributed I/O
• Core：Genius bus interface unit(BUI), serves as station head module to connect local IC670 I/O rack to Genius fieldbus network, data relay between host PLC(90-30/RX3i) and field I/O modules
• Original OEM production stopped, available with brand new surplus and fully tested refurbished units for obsolete equipment maintenance replacement

Core Features

• Compliant with standard Genius bus protocol, baud rate fixed at 153.6Kbps, support Genius datagram communication mode
• Single unit drives up to 8 IC670 series I/O modules installed on CHS bases, 128 bytes input +128 bytes output data per bus scan cycle
• Hot-swap compatible, replace module under powered cabinet without system shutdown, reduce field maintenance downtime
• Built-in hardware diagnostic circuit, LED indicators for power, run, bus fault and module error status
• Support host redundant CPU configuration, fit for high-reliability redundant control system layout
• Internal backplane outputs 6.5VDC/1.4A power to feed mounted I/O modules, short-circuit protection onboard
• DIN rail installation, match mechanical dimension of all IC670CHS series terminal bases

Technical Parameters

• Part No: IC670GBI002
• External supply:18~30VDC(nominal 24VDC), total power consumption 16.8W
• Max loaded I/O quantity:8 modules per GBI002 base station
• Data capacity:128B IN /128B OUT per scan
• Operating temp:0℃~+55℃; Storage:-40℃~+85℃, RH5%~95% non-condensing
• Net weight:0.31kg
• Dimension:206×155×57mm
• Certification:UL, CE, CSA approved

Compatibility

• Full compatible with IC670CHS002/CHS101 all terminal bases, IC670MDL discrete, IC670ALG analog, IC670RTD thermal modules
• Communicate with GE Series90-30, RX3i PLC via Genius bus cable, match IC670CPU350 standalone station CPU

Applications

• Petrochemical, power plant, water treatment old Genius remote I/O cabinet spare replacement
• Metallurgy, cement, textile obsolete FieldControl distributed control system renovation project

Our Advantages

• Full power-on aging and communication test before delivery
• 12-month global warranty for refurbished stock
• DHL/Fedex worldwide door-to-door shipping
• Professional Genius bus wiring and station layout technical support
