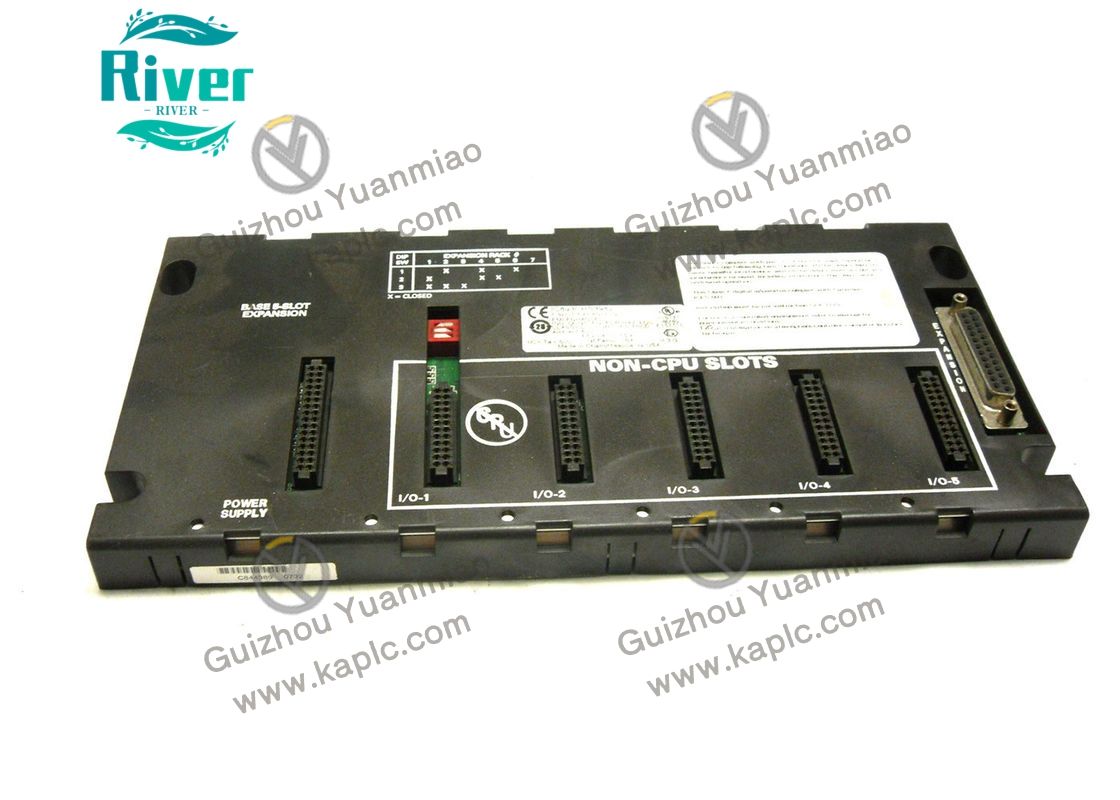

IC693CHS398 GE Series90-30 5-Slot Compact Expansion Baseplate Discontinued Surplus & Refurbished In Stock

Short Description:

IC693CHS398 GE Fanuc compact 5-slot expansion rack for Series90-30 PLC, dedicate

Send email to us

Product Detail

IC693CHS398 GE Fanuc compact 5-slot expansion rack for Series90-30 PLC, dedicated PSU slot plus 4 universal I/O slots, 25pin D-sub expansion port, tested surplus spare with 12-month global warranty for compact cabinet retrofit

Product Overview

PN: IC693CHS398｜Brand: GE Fanuc / Emerson｜Series: Series90-30 PLC
Definition: Compact 5-slot expansion-only baseplate without CPU slot, mini-size design for narrow cabinet space extension, factory discontinued, supply new surplus and fully tested refurbished units for legacy equipment maintenance, must link to main rack IC693CHS391 via expansion cable and cannot run standalone

Core Features

One exclusive left slot for Series90-30 power supply module IC693PWR321/330, remaining four slots for standard discrete, analog and regular communication I/O modules
Right side fitted with 25pin female D-sub connector for daisy chain connection with main rack or extra expansion baseplates
Built-in DIP switch on board to set unique rack address, common ground terminal required for anti-interference wiring
Intelligent modules including CMM, PCM, high-speed positioning modules are prohibited to install on this baseplate, these parts have to be mounted on main CPU rack CHS391
Compact reinforced PCB backplane with industrial bus circuit, fixed via panel mounting holes

Technical Parameters

Part No: IC693CHS398
Slot layout: 1 dedicated PSU slot + 4 general I/O slots (total 5 slots)
Backplane rated current: 170mA @5VDC
Overall dimension:232×130×142mm
Net weight:0.38kg
Operating ambient:0℃~+60℃; storage:-40℃~+85℃, 5%~95%RH non-condensing, IP20 indoor installation only
Max single expansion cable length:≤15m
System expansion limit:max 4 expansion racks for low end CPU 331/340/341; max7 racks for high end CPU 350 and above
Approval certification: UL, CE, CSA

Compatibility

Compatible with all regular Series90-30 standard I/O and analog modules
Connectable with IC693CHS391 main rack, IC693CHS392 10-slot expansion base via IC693CBL300/CBL301 series expansion cables

Applications

Compact cabinet I/O extension for packaging machinery, small water treatment, local auxiliary control of power plant legacy Series90-30 PLC
Spare replacement and cabinet space limited renovation for obsolete GE Fanuc automation equipment
