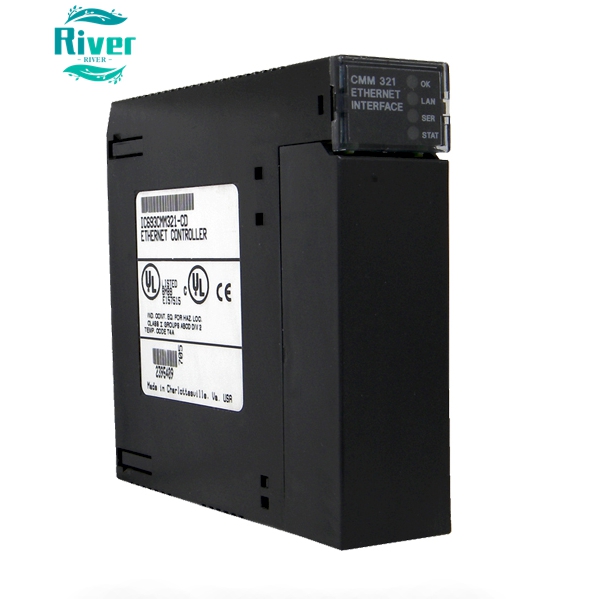

IC693CMM321 GE Series90-30 Ethernet Communication Module Discontinued Surplus & Refurbished In Stock

Short Description:

IC693CMM321 GE Fanuc single-slot Ethernet interface module for Series90-30 PLC,

Send email to us

Product Detail

IC693CMM321 GE Fanuc single-slot Ethernet interface module for Series90-30 PLC, AAUI network port plus RS232/RS485 serial ports, supports Modbus TCP, SRTP, EGD, tested spare with 12-month global warranty for old system retrofit

Product Overview

PN: IC693CMM321｜Brand: GE Fanuc / Emerson｜Series: Series90-30 PLC
Definition: Single-slot intelligent Ethernet communication coprocessor, original manufacturer full discontinued, supply unused surplus and fully bench-tested refurbished units for legacy automation maintenance, installs only on main CPU baseplate IC693CHS391, max two pieces per single PLC rack

Core Features

Three built-in ports: AAUI Ethernet port requires external transceiver to convert to standard RJ45; RJ11 RS232 station manager port for local configuration and firmware upgrade; 15pin D-sub RS485 loader port for program download
Four front panel LED indicators: OK, LAN, SER, STAT for real time module, network and serial port fault diagnosis
Client/server dual working mode, supports up to 16 concurrent Ethernet server connections via COMMREQ ladder instruction
Multiple industrial protocols: SRTP private GE protocol, Modbus TCP (available on V3.10+ firmware), EGD, TCP/IP, UDP, SNMP
1500VAC optoelectronic isolation between backplane bus and external communication circuits for anti-interference

Technical Parameters

Part No: IC693CMM321
Slot occupation: 1 standard Series90-30 slot
Backplane power draw: 450mA @5VDC
Ethernet rate: fixed 10Mbps half duplex, no 100Mbps compatibility
Net weight:0.28kg
Overall dimension:115×103×37mm
Standard working temp:0℃~+55℃; LT version:-20℃~+60℃; storage:-40℃~+85℃, RH5%~95% non-condensing, IP20 indoor mounting
Compatible CPU: all Series90-30 CPU models, full protocol functions require CPU firmware V6.50 or above
Certification: UL, CE, CSA certified

Compatibility

Matches full range Series90-30 CPU and baseplate series (CHS391/CHS392/CHS398)
Programming software: VersaPro, Logicmaster90-30
External accessory: AAUI-to-RJ45 transceiver and matching AAUI cable

Applications

Plant-wide Ethernet networking for petrochemical, water treatment, power and packaging legacy Series90-30 PLC
Data exchange between PLC and SCADA/HMI, cross-plant inter-PLC EGD data sharing, distributed remote I/O communication upgrade
