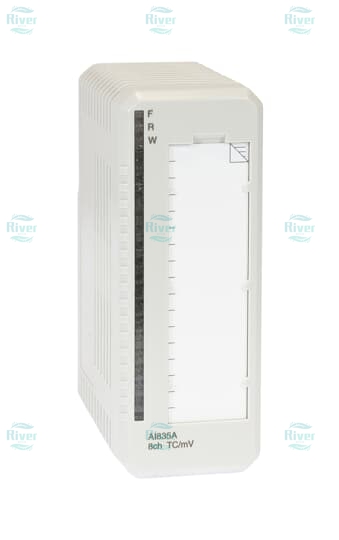

AI835 ABB S800 I/O Thermocouple Analog Input Module Original In Stock

Short Description:

AI835 ABB 8-channel thermocouple mV input module of S800 I/O series, original in

Send email to us

Product Detail

AI835 ABB 8-channel thermocouple mV input module of S800 I/O series, original industrial spare in stock, full pre-functional test with 12-month global warranty for ABB 800xA DCS system maintenance replacement

Product Overview

PN:AI835｜Brand:ABB｜Series:S800 I/O｜Type:Thermocouple Analog Input Module
Definition:8-channel temperature acquisition module specially designed for thermocouple signals, compatible with multiple standard thermocouple types and low mV linear signals, matches S800 terminal base units, serves as core signal collecting component for ABB AC800M and 800xA distributed control system, original spare for legacy process control cabinet overhaul and on-site fault replacement

Core Features

8 input channels in one group, supports B/C/D/E/J/K/L/N/R/S/T/U all common thermocouple types and -30~75mV linear low voltage signals
15-bit high resolution A/D conversion, built-in cold junction compensation circuit for accurate temperature measurement
Group galvanic isolation design, effectively restrain ground loop interference in power, petrochemical and metallurgy harsh industrial environment
Hot pluggable modular structure, can be replaced without system power cut, equipped with front panel LED indicators for power supply and channel fault quick diagnosis
Standard DIN rail installation via supporting S800 terminal base, communicates with controller through station bus

Technical Specs

Auxiliary supply:24VDC ±10% control power supply
Input impedance:greater than 1MΩ
Operating temp:-20℃~+70℃｜Storage:-40℃~+85℃,RH5%~95% non-condensing
Net weight:0.38kg｜Dimension:192×116×33mm
HS Code:85389091
Certification:CE, UL certified

Compatibility

Matches all standard S800 I/O terminal base units, applicable to ABB AC800M controller and 800xA DCS platform; incompatible with S600 I/O series, ACS frequency converters and IRC5 robot controllers

Application

Spare replacement for thermal power plant, chemical plant, metallurgy factory old ABB DCS control cabinet
Temperature signal collection renovation for furnace, reactor and heating pipeline of process production lines

Our Advantage

Full channel signal calibration and continuous aging testing before shipment
12-month global warranty for all stocked products
DHL/Fedex worldwide door-to-door delivery
Free technical support for terminal base matching, wiring and parameter debugging
