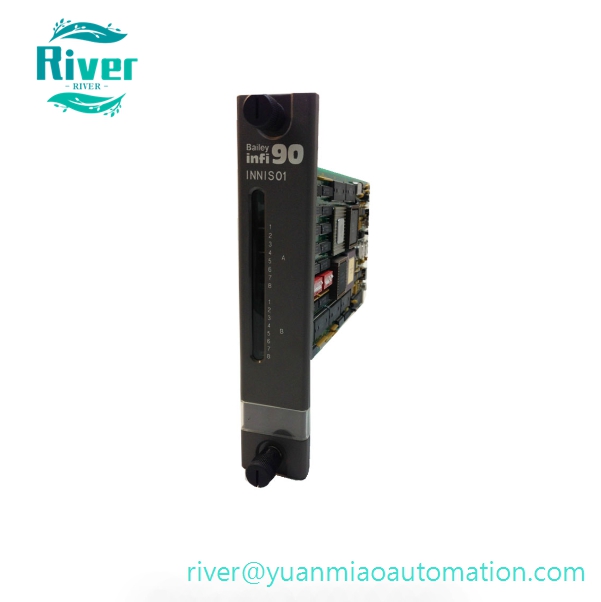

• PN: INNIS01
• Brand: ABB (Bailey)
• Series: INFI 90 / Symphony DCS Distributed Control System
• Type: Network Interface Slave Module (NIS)

• Function: Serves as the communication bridge between process control unit (PCU) and INFI-NET plant-wide control loop, works with NPM network processing module to realize high-speed inter-node data transmission, realizes real-time upload of field analog/digital signals, control logic interaction and multi-control cabinet networking communication.

•


Core Features

1. Support optional communication rate: 2Mbps / 10Mbps, deterministic industrial communication, stable data transmission under complex electromagnetic interference environment
2. Equipped with 208KB RAM + 64KB ROM, powerful data processing capacity, supports up to 250 nodes in single loop and 62500 nodes for the whole system
3. Single-slot hot-swappable design, no system shutdown required for online replacement and maintenance
4. DIP switch for flexible configuration of node address, loop address and communication mode, convenient on-site parameter setting
5. Dual-channel redundant loop communication design, effectively avoids single-line communication failure and improves system operation reliability

6. Built-in hardware self-diagnosis function, real-time monitoring module running status, network communication fault and abnormal address configuration

7.


Technical Specs

• Communication Interface: Dual INFI-NET redundant loop
• Baud Rate: 2 Mbaud / 10 Mbaud optional
• Memory: 208KB RAM, 64KB ROM
• Power Supply: +5VDC 900mA, +15VDC 5mA, -15VDC 200mA
• Operating Temperature: 0℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃, 5%~95% RH non-condensing
• Dimension: 36 × 315 × 177mm
• Net Weight: 0.93kg
• HS Code: 8538900000

• Certification: CE certified

•


Compatibility

• Applicable Equipment: ABB INFI90 standard MMU module rack
• Matching Module: INNPMxx series Network Processing Module (NPM)
• Compatible System: INFI90, Symphony DCS distributed control system

• Not Compatible: Third-party PLC, DCS racks and non-INFI-NET communication modules

•


Application

• Centralized communication networking for thermal power, petrochemical, pulp & paper, cement plant DCS control systems
• Data interaction between on-site PCU control cabinets and central operation monitoring station
• Old DCS system renovation, communication fault spare replacement and control cabinet expansion project

• Stable communication guarantee for large industrial process safety control and automatic production scheduling

•


Our Advantage

• Full communication stability test, continuity and aging test completed before delivery
• 12-month warranty for new original and fully tested surplus modules
