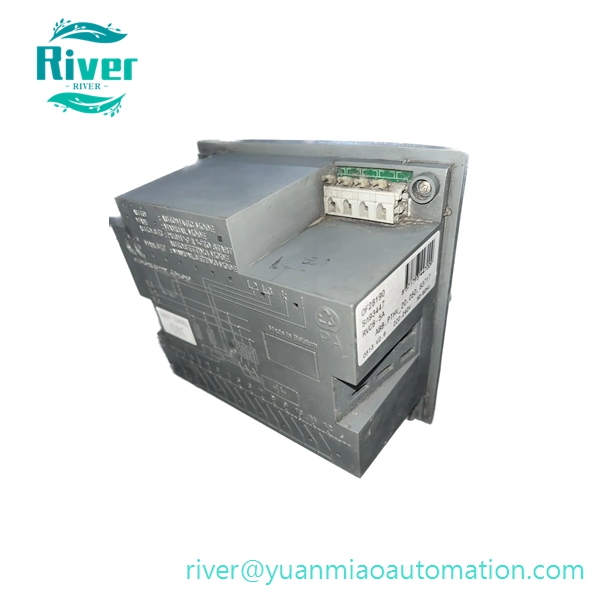

• PN: RVC6-5A
• Brand: ABB
• Series: RVC Power Factor Controller Series
• Type: 6-stage Reactive Power Compensation Controller

• Function: Real-time detects grid power factor, voltage, current and harmonic parameters, automatically switches 6 groups of capacitor contactors to adjust reactive power, stabilizes power factor within the set range, reduces grid reactive loss, avoids penalty charges for low power factor, monitors harmonic distortion and provides overvoltage/undervoltage protection for capacitor banksABB Group.

•


Core Features

1. 6 relay output channels, supports automatic cyclic/sequential capacitor switching to extend service life of capacitors and contactors
2. Built-in LCD display, real-time viewing of power factor, voltage, current, THD voltage/current and other electrical parameters
3. Supports 5A CT current input, applicable for 100–440V AC low-voltage power distribution systems
4. Multiple protection functions: overvoltage, undervoltage, overharmonic, overcurrent protection with fault alarm contact output
5. One-key automatic parameter setting, simple field commissioning, anti-harmonic interference design

6. 144×144mm panel embedded installation, front panel IP40 protection grade

7.


Technical Specs

• Control Output: 6 relay outputs
• Rated Current Input: 5A
• Operating Voltage: 100–440V AC
• Frequency: 50/60Hz automatic adaptation
• Relay Contact Capacity: Continuous 1.5A, peak 5A
• Operating Temperature: -10℃ ~ +70℃
• Storage Temperature: -30℃ ~ +85℃
• Dimension: 144 × 144 × 80mm
• Net Weight: 0.8kg
• HS Code: 8536200000

• Certification: CE certified

•


Compatibility

• Matching Equipment: Low voltage reactive power compensation capacitor banks, AC contactors
• Applicable Scenarios: Industrial factory, commercial building, substation low-voltage distribution cabinets
• Supporting Devices: Current transformer (CT), low voltage power distribution system

• Not Compatible: High-voltage power distribution systems, non-capacitor reactive compensation equipment

•


Application

• Automatic reactive power compensation for industrial, commercial and municipal low-voltage power distribution systems
• Power factor optimization for factories, water treatment plants, cement, chemical and mining enterprises
• Prevent power grid harmonic pollution, reduce line energy consumption and electricity fine

• Old power distribution cabinet renovation and faulty compensation controller spare replacement

•


Our Advantage

• Full function parameter calibration, relay action test and aging test completed before delivery
• 12-month warranty for new original and fully tested surplus units
