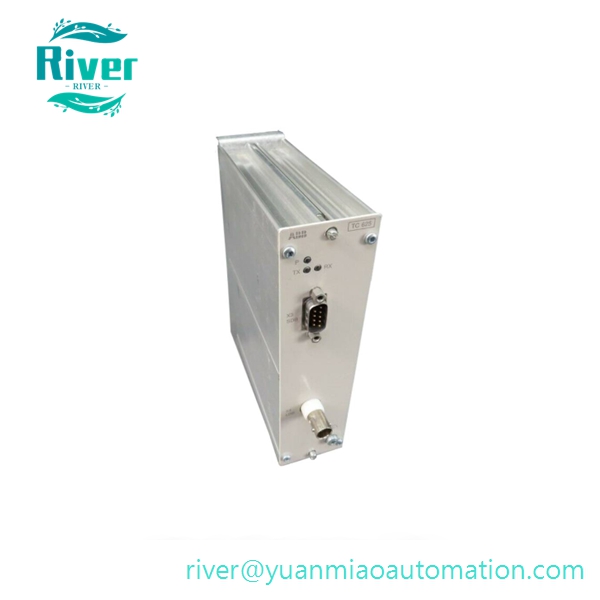

• PN: TC625, Part No: 3BSE002224R1
• Brand: ABB
• Series: Advant Master, MOD300, System 800xA DCS
• Type: AF100 Coaxial Fieldbus Modem

• Function: TC625 is a dedicated signal conversion modem for ABB AF100 fieldbus system. It works with CI520, CI522, CI526 communication interface cards to convert electrical signals into coaxial bus signals, realizing reliable bidirectional transmission of process data, control commands and fault alarm information between central controllers, remote I/O cabinets and monitoring workstations. Adopting coaxial cable transmission, it features strong anti-electromagnetic interference capacity, which is suitable for long-distance bus networking in power plants, petrochemical and other harsh industrial sites.

•


Core Features

1. Compliant with AF100 proprietary fieldbus protocol, maximum communication rate up to 10 Mbps, supporting ring and bus topology network layout
2. Equipped with DB9 serial interface and coaxial port, standard DIN rail mounting, convenient field wiring and cabinet installation
3. Built-in hardware self-diagnosis and signal noise suppression circuit; front panel LED indicators quickly display power, data transmission and bus fault status
4. Supports redundant AF100 bus configuration, ensuring continuous system communication when single line fails and improving overall control system stability
5. 24VDC auxiliary power supply, wide industrial temperature design, stable continuous operation in dusty and high-electromagnetic-interference control rooms

6. Widely applied in legacy ABB Advant DCS renovation projects, serving as common spare part for AF100 communication network fault replacement

7.


Technical Specifications

• Communication Protocol: Advant Fieldbus 100 (AF100)
• Max Transmission Rate: 10 Mbps
• Transmission Medium: Coaxial Cable
• Auxiliary Power Supply: 24 VDC
• Operating Temperature: 0℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃, 5%~95% RH non-condensing
• Dimension: 117 × 45 × 148.5 mm
• Net Weight: 0.73 kg
• Protection Class: IP20
• HS Code: 85389091
• Certifications: CE, UL

• Product Status: Discontinued original production, supplied with tested surplus spare parts

•


Compatibility

• Matched Communication Cards: CI520, CI522, CI526 AF100 interface modules
• Applicable DCS Systems: ABB Advant Master, MOD300, System 800xA
• Compatible Field Devices: S800 series distributed remote I/O stations, industrial monitoring workstations

• Not Compatible: AC800M PLC, AC500 PLC, INFI90 Symphony DCS and third-party fieldbus control systems

•


Application

1. Long-distance distributed I/O communication for thermal power, petrochemical, pulp & paper and metallurgical industries
2. Construction of redundant AF100 fieldbus network for large-scale process DCS control systems
3. Retrofit and maintenance of obsolete ABB Advant DCS control systems, replacement of faulty communication modules

4. Real-time stable data communication for industrial fields with severe electromagnetic interference

5.


Our Advantage

• Strictly passed AF100 bus communication stability test, signal compatibility test and continuous aging test before delivery
• 12-month warranty provided for brand new original and fully tested surplus modules
