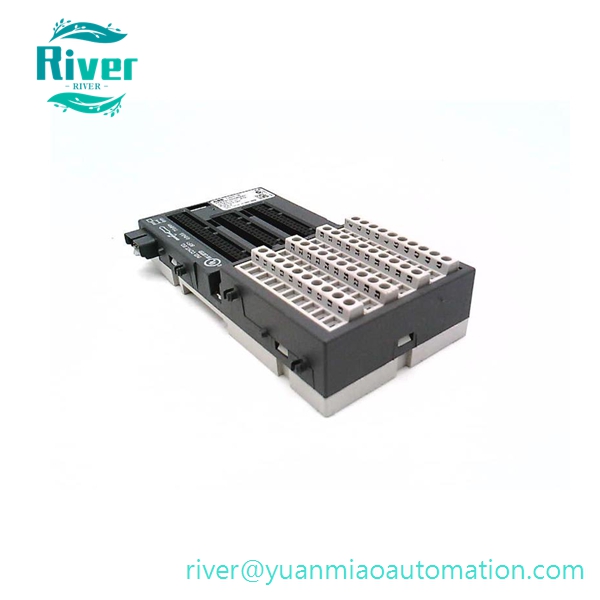

• PN: TU515, Part No: 1SAP212200R0001
• Brand: ABB
• Series: S800 I/O System, System 800xA DCS
• Type: Screw Terminal Unit

• Function: TU515 is a standard screw wiring terminal base matched with S800 series analog and 24VDC digital I/O modules. It realizes reliable electrical connection between field sensors, actuators and I/O modules, undertakes signal distribution, power transmission and wiring management tasks. Adopting screw terminal design, it ensures stable wiring for long-term industrial operation, and supports hot swapping of upper I/O modules without system shutdown, greatly facilitating on-site equipment maintenance and module replacement.

•


Core Features

1. Standard screw terminal wiring mode, suitable for analog input/output and 24VDC digital I/O modules of S800 series
2. Supports hot swap function, allowing replacement of I/O modules online without interrupting the whole control system operation
3. Compact DIN rail mounting structure, convenient for centralized layout inside industrial control cabinets
4. Built-in signal isolation and anti-interference design, effectively suppress signal crosstalk in strong electromagnetic industrial environments
5. Clear terminal number marking, convenient for field wiring debugging and later circuit inspection and maintenance

6. Wide temperature industrial design, stable continuous operation in power, chemical, metallurgy and other harsh industrial scenarios

7.


Technical Specifications

• Part Number: 1SAP212200R0001
• Wiring Type: Screw Terminal
• Applicable Module Type: S800 analog modules, 24VDC digital I/O modules
• Rated Power Supply: 24VDC
• Operating Temperature: 0℃ ~ +60℃
• Storage Temperature: -40℃ ~ +85℃, 5%~95% RH non-condensing
• Dimension: 135 × 67.5 × 28 mm
• Net Weight: 0.232 kg
• Protection Class: IP20
• HS Code: 85389091
• Certifications: CE, UL

• Product Status: Mass production available, brand new original and tested surplus units are supplied

•


Compatibility

• Matched I/O Modules: S800 series AI810, AO810, DI810, DO810 and other standard analog & digital modules
• Applicable Control System: ABB System 800xA, AC800M PLC, Advant OCS DCS
• Matching Base Station: RF615 communication module, RC610 base unit for remote I/O station

• Not Compatible: S500 I/O modules, AC500 PLC terminal bases, third-party proprietary I/O systems

•


Application

1. Distributed field signal wiring connection for thermal power, petrochemical, water treatment and metallurgical automation projects
2. Centralized I/O cabinet construction of S800 remote station in large-scale DCS control systems
3. On-site maintenance, wiring transformation and faulty terminal base replacement of old ABB automation control cabinets

4. Signal acquisition and control output wiring for fan, pump, compressor and other process equipment

5.


Our Advantage

• Strictly passed wiring continuity, insulation resistance and hot swap compatibility tests before delivery
• 12-month warranty provided for brand new original and fully tested surplus terminal units
