Product Overview

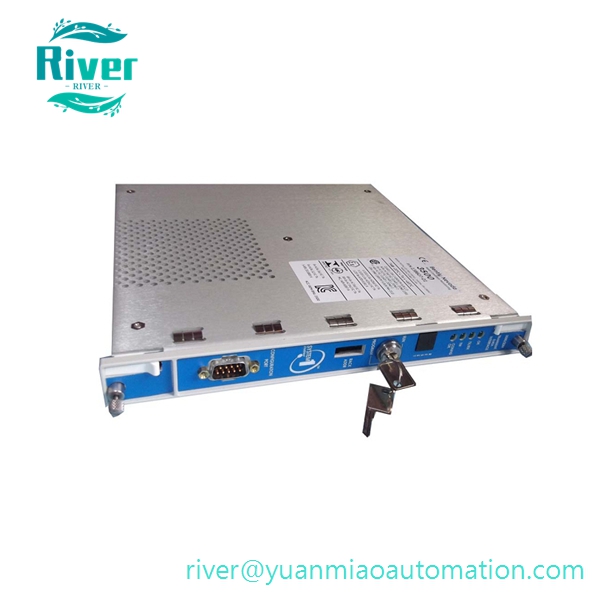

• PN: 3500/22M, Part No: 138607-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Turbomachinery Protection TSI System
• Type: Standard Transient Data Interface (TDI) Front Module
• Function: Mandatorily mounted in the first slot adjacent to rack power supply units. It combines the functions of traditional 3500/20 rack interface module and TDXnet data acquisition processor. It interacts with all M-series monitoring modules through backplane bus, downloads system configuration parameters, collects real-time measured values, alarm logs and fault codes, captures high-resolution transient vibration waveforms during unit startup, trip and abnormal operation, and transmits all data to System 1 predictive maintenance platform through matched rear I/O card. It only undertakes data forwarding tasks, and the hardwired safety interlock of each channel will not be affected even if communication is interrupted。

Core Features

• Occupies a single rack slot without extra space for separate communication equipment
• Front panel equipped with RJ45 Ethernet port, RS232 serial debugging port and USB configuration interface
• Front panel key lock prevents unauthorized modification of rack system configuration
• Multi-group LED indicators clearly display power supply status, bus communication and data recording status
• Supports hot swapping under dual redundant power supply configuration without system power cut
• Onboard storage caches historical alarm records and transient event waveforms for offline equipment fault analysis
• Auto-adaptive 10/100Mbps Ethernet, supports proprietary Bently protocol and Modbus TCP dual communication modes
• Fully compatible with all 3500/05 rack frames and full range M-series monitoring front cards
• Cannot be used together with 3500/92 communication gateway within one rack

Technical Specifications

• Rated Power Consumption: 10.5 W
• Ethernet Standard: IEEE 802.3 10/100Base-TX
• Max Serial Baud Rate: 115.2 kbaud
• Operating Temperature: -40℃ ~ +85℃
• Overall Dimension: 241.3 × 24.4 × 241.8 mm
• Net Weight: 0.82 kg
• HS Code: 8538900000
• Certifications: CE, UL
• Product Status: OEM discontinued production; brand new original sealed and fully inspected refurbished modules available

Compatibility

• Mandatory Matching Rear I/O Card: 146031-01 twisted pair Ethernet rear terminal module
• Applicable Chassis: All 3500/05 12-slot and 14-slot standard rack frames
• Compatible Software: Official 3500 rack configuration tool, Bently Nevada System 1 diagnostic software
• Supported Front Modules: 3500/40M, 3500/42M, 3500/44M, 3500/65 and other series monitor cards

Application

• Centralized parameter configuration and remote commissioning for steam turbine, gas turbine and centrifugal compressor 3500 protection cabinets in power and petrochemical industries
• Real-time data uploading and vibration waveform acquisition for rotating equipment condition monitoring and fault diagnosis
• Network gateway connecting on-site monitoring rack and factory central control DCS/SCADA system
• Spare replacement and system upgrade transformation for legacy 3500 series monitoring racks
