Product Overview

• PN: YPK112A
• Alternative part code: 3ASD573001A133
• Brand: ABB
• Series: Advant and legacy 800xA automation control system
• Type: Fieldbus Communication Module

• Function: It is the core gateway communication board for ABB early Advant control system. It works as a signal bridge between APC advanced process control station and Advant Fieldbus 100 fieldbus. It conducts two-way transmission of real-time process parameters, control commands and equipment fault data, finishes protocol conversion and data forwarding between upper control layer and field I/O devices, and guarantees steady data interaction of the entire distributed control system.

•


Core Features

• Galvanic isolation circuit between bus and control side, isolation voltage reaches 2500VAC to eliminate ground loop interference
• Supports proprietary Advant Fieldbus 100 protocol with maximum transmission speed 1Mbps

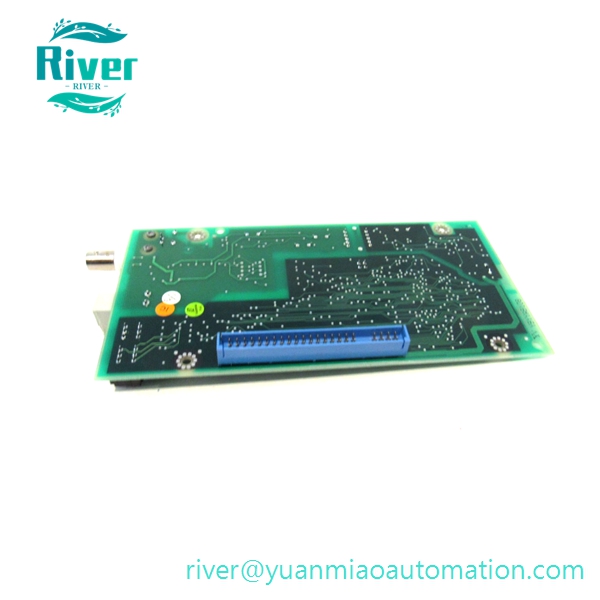

• Equipped with BNC coaxial bus port and backplane pin connector, stable connection and anti-vibration performance
• Onboard LED indicators to show power status, bus communication state and module faults clearly
• PCB with conformal coating for dustproof, moistureproof and anti-corrosion performance, suitable for long term operation in industrial control rooms
• Standard plug-in card design, allows hot swap under redundant rack power supply without system shutdown

• Built-in short circuit and overvoltage protection to prevent backflow damage to main control backplane

•


Technical Specifications

• Input power: 24VDC ±15%
• Max power consumption: 5W
• Operating temperature: -25℃ ~ +60℃
• Storage temperature: -40℃ ~ +85℃
• Communication interface: Advant Fieldbus 100 via BNC coaxial port
• Installation: Insert into designated slot of system rack backplane
• Dimensions: 185×84×28mm
• Net weight: Around 0.1kg
• HS Code: 85389091
• Certification: CE

• Supply status: Discontinued by original manufacturer; brand new sealed original stock and fully tested refurbished spare parts are available.

•


Compatibility

• Applicable system: ABB Advant DCS system, AC800M controller adopting Fieldbus100 bus structure
• Matching devices: APC advanced process control cabinet, rack power supply, fieldbus terminal equipment
• Replacement note: YPK112A (3ASD573001A133) can directly replace older revisions of the same model

• Limitation: Cannot be directly applied to S800 I/O Profibus DP expansion without protocol adaptation

•


Application

• Communication networking and expansion for legacy Advant DCS cabinets in petrochemical and chemical plants
• Fieldbus gateway for boiler and turbine monitoring & control systems in thermal power units
• Onsite maintenance replacement and spare part stocking for ABB old generation distributed automation control systems
• Renovation and upgrading of fieldbus communication links for industrial waste gas and wastewater environmental control equipment
