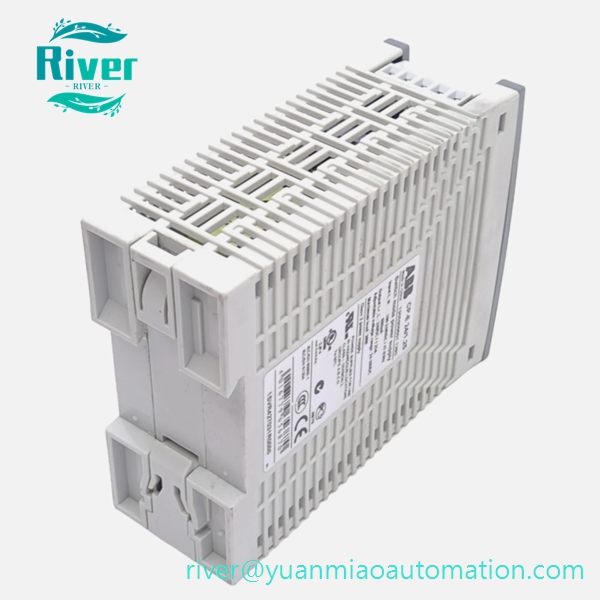

Product Overview

• Part No: CP-E 24/1.25
• Order code: 1SVR427031R0000
• Brand: ABB
• Series: CP-E economic industrial power supply series
• Type: DIN rail mounted primary switching mode power supply

• Function: Converts AC mains to stable 24V DC power supply for PLC, sensors, relays, small control modules and field instruments inside automation cabinets. It supports voltage fine tuning to offset cable voltage drop, can be paralleled for redundant power supply, and sends transistor level DC OK signal for upper system monitoring.

•


Core Features

• Ultra-wide input range: 85~264V AC universal mains, also supports 90~375V DC input

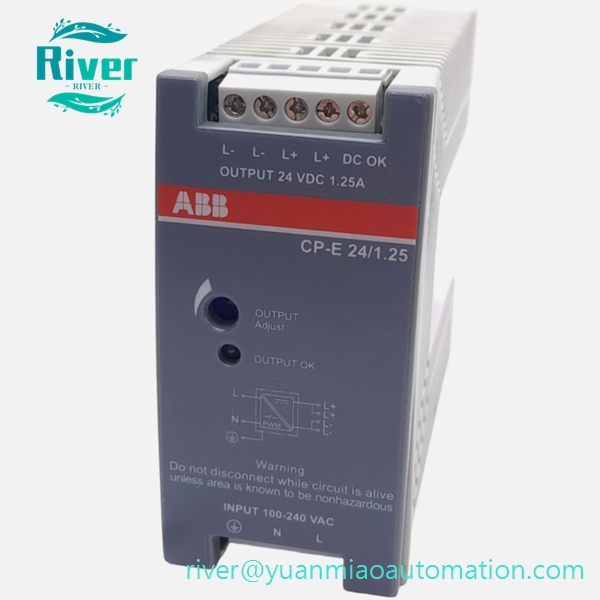

• Output voltage adjustable via front potentiometer from 24V to 28V DC
• Built-in non-replaceable slow-blow input fuse for circuit protection
• Complete protection against no-load, overload, continuous short circuit
• Green LED indicator for normal output status, transistor DC OK signal output
• Natural convection cooling without fan, low heat generation and high efficiency up to 90%
• Wide working temperature from -40℃ to +70℃; current derating 2.5% per ℃ above 60℃
• Standard IEC DIN rail snap-on installation, easy assembly and disassembly
• Input and output electrical isolation conforming to SELV safety standard

• Multiple units can be connected in parallel; matched with CP-RUD redundancy module for backup power system

•


Technical Specifications

• Rated input: 100~240V AC (47~63Hz), DC 90~375V
• Rated output: 24V DC 1.25A, total power 30W
• Output voltage tolerance: ±1%
• Max inrush current: 40A within 3ms
• Hold-up time: minimum 30ms during power failure
• Startup time under full load: less than 1 second
• Dimension: 40.5mm(W) × 90mm(H) × 114mm(D)
• Net weight: 0.27kg
• HS Code: 85044090
• Certifications: CE, UL, CSA

• Supply status: Mass production available, brand new original sealed products and tested spare parts in stock

•


Compatibility

• Mounting: Standard 35mm DIN rail inside control cabinet
• Load devices: ABB S800 I/O modules, various brand PLC, proximity sensors, solenoid valves, signal lamps, small relays
• Expansion mode: Multiple power supplies parallel connection; optional redundancy module for dual power backup

• Wiring: Input terminal with PE grounding port for protective earthing

•


Application

• 24V DC power distribution for DCS and PLC control cabinets in petrochemical, power plant, water treatment industry
• Power supply for on-site detection sensors and execution components of automated production lines
• Small cabinet auxiliary power for machinery equipment, packaging machines and conveyor systems
• Replacement and spare stocking for old automation system power modules
