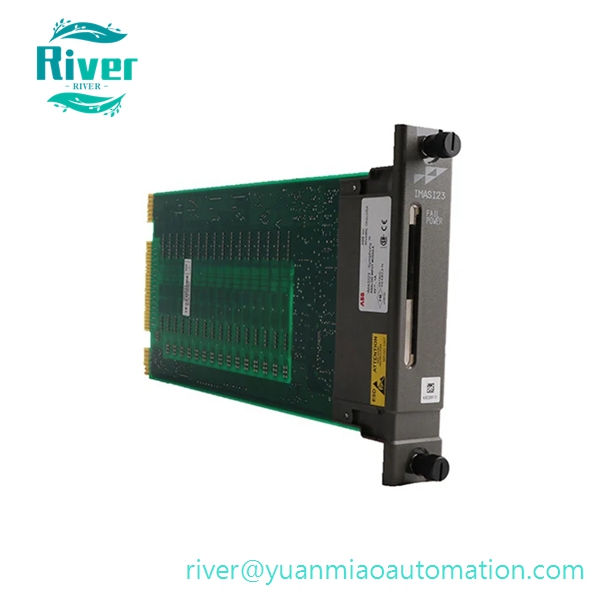

Product Overview

• PN: IMASI23
• Brand: ABB Bailey
• Series: Symphony / INFI90 Harmony Distributed Control System
• Type: Rack-mounted intelligent isolated analog input slave module

• Function: It is the core signal acquisition unit of Harmony rack I/O station. It receives field analog signals from temperature, pressure, flow and liquid level transmitters, converts analog quantities into high-precision digital signals through independent 24-bit A/D conversion per channel, and uploads data to the main controller via I/O Expander Bus. The module integrates on-chip microcontroller to complete cold junction compensation, wire resistance correction, overrange/underrange/open circuit fault diagnosis and engineering unit conversion, reducing main controller computing load. It needs to be matched with supporting terminal base for field wiring access.

•


Core Features

1. Total 16 fully isolated input channels, each channel can be independently configured for signal type via jumper and system software
2. Ultra-high 24-bit analog-to-digital conversion, excellent anti-interference ability against industrial field ground loop and electromagnetic noise
3. Built-in comprehensive fault detection: open circuit, signal overrange, underrange, terminal cable disconnection alarm for each channel
4. DIP switch on board to set module station address and trigger self-test function
5. PCB conformal coating process, dustproof, moistureproof and anti-corrosion, suitable for long-term stable operation in power, chemical control rooms
6. Standard single-slot plug-in structure with front panel locking buckle, supporting hot swapping under redundant rack power supply

7. Automatically complete thermocouple cold junction compensation and RTD three-wire lead resistance compensation without extra auxiliary modules

8.


Technical Specifications

• Working power supply: 5VDC 500mA
• Sampling cycle: Max 1.5s full channel scanning
• Supported signal types: 4~20mA, ±10VDC, ±100mV; multi-type thermocouple (E/J/K/R/S/T/N/U etc.); 3-wire platinum/copper/nickel RTD
• Isolation mode: Channel group electrical isolation
• Operating temperature: -25℃ ~ +70℃
• Storage temperature: -40℃ ~ +85℃
• Net weight: About 0.44kg
• HS Code: 85389081
• Certification: CE

• Supply status: Original manufacturer discontinued production; brand new original sealed stock and fully tested refurbished spare parts are available

•


Compatibility

• Applicable system: ABB Symphony, INFI90 Harmony rack DCS control system
• Matching accessories: Harmony standard rack mounting unit MMU, dedicated terminal unit TU and signal wiring cable
• Communication mode: I/O Expander Bus backplane bus connection with Harmony series controllers

• Replacement note: IMASI23 can replace compatible old revision analog input modules of the same system architecture

•


Application

• Temperature, pressure, flow, liquid level analog signal collection for thermal power plant boiler and turbine DCS control system
• Process parameter monitoring and closed-loop control signal acquisition for petrochemical refining and chemical production lines
• Spare part replacement and cabinet maintenance renovation for on-site INFI90/Symphony old-generation distributed control system
• Data acquisition for environmental protection flue gas denitrification, desulfurization and wastewater automatic control equipment
