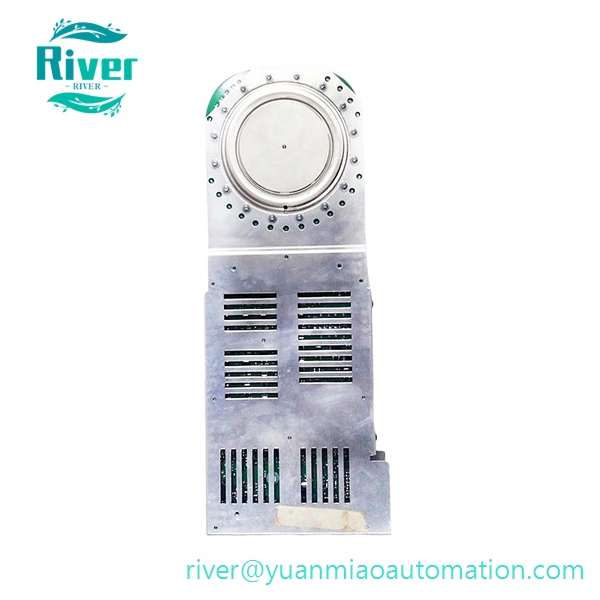

Product Overview

• PN: 5SHY35L4510
• Alternative part number: 3BHE014105R0001, 5XSE02-138
• Brand: ABB
• Series: IGCT symmetrical thyristor power semiconductor component
• Type: Bidirectional symmetrical IGCT module

• FunctionCore power switching device of ABB ACS5000 medium voltage four-quadrant frequency converter. It realizes bidirectional energy flow control between power grid and motor system, completes motor forward and reverse speed regulation, dynamic braking and regenerative energy feedback back to power grid. It undertakes high voltage large current chopping conversion in medium voltage drive unit, cooperates with drive trigger board to complete precise on-off control, ensures stable operation of heavy-load transmission equipment and avoids impact current damage to power grid and mechanical equipment.

•


Core Features

• Symmetrical bidirectional blocking structure, forward and reverse withstand voltage both reach 3500V
• Rated continuous working current 4500A, 10ms surge current tolerance up to 24kA, strong overload impact resistance
• Ultra-fast switching speed, turn-on time ≤3.5μs, turn-off time ≤7.5μs, low switching loss and high conversion efficiency
• Press-fit crimp packaging design, no internal welding points, good thermal conductivity and anti-vibration performance
• Must adopt forced liquid cooling mode with ethylene glycol deionized water mixed coolant to control junction temperature
• Built-in overcurrent, overvoltage and overtemperature inherent protection characteristics, reduce risk of module breakdown under abnormal working conditions
• Low on-state conduction loss, long service life under long-term continuous variable frequency operation

• Support parallel connection of multiple modules to expand overall power capacity of frequency conversion unit

•


Technical Specifications

• Bidirectional repetitive peak voltage VDRM/VRRM: 3500V
• RMS continuous on-state current ITGQM: 4500A
• 10ms non-repetitive surge current ITSM: 24000A
• Typical turn-on delay: ≤3.5μs
• Typical turn-off delay: ≤7.5μs
• Maximum allowable junction temperature: 125℃
• Cooling method: Liquid forced circulation cooling
• Operating ambient temperature: -20℃ ~ +40℃
• Storage temperature: -40℃ ~ +125℃
• Net weight: Approximately 2.8kg
• HS Code: 85412900
• Certification: CE

• Supply status: Original factory normal production supply; brand new original sealed products and tested disassembled spare parts are available

•


Compatibility

• Matched equipment: ABB ACS5000 series medium voltage four-quadrant inverter
• Supporting drive unit: GVC736CE101 trigger control board
• Application unit types: Mine hoist, conveyor, steel rolling mill main drive, large water pump and fan medium voltage variable frequency cabinet
• Replacement instruction: Same part number 5SHY35L4510 can be directly replaced on site after cooling system inspection

• Alternative model reference: 5SHY35L4520

•


Application

• Regenerative medium voltage drive system for mine inclined shaft conveyors and lifting equipment
• Main transmission frequency conversion power unit for metallurgical steel rolling production line
• Variable frequency speed regulation and energy feedback control of large pumps and blowers in thermal power plants
• Starting and frequency conversion control for hydropower unit auxiliary equipment
• Spare parts replacement and maintenance reserve for ACS5000 medium voltage inverter cabinet on industrial sites
