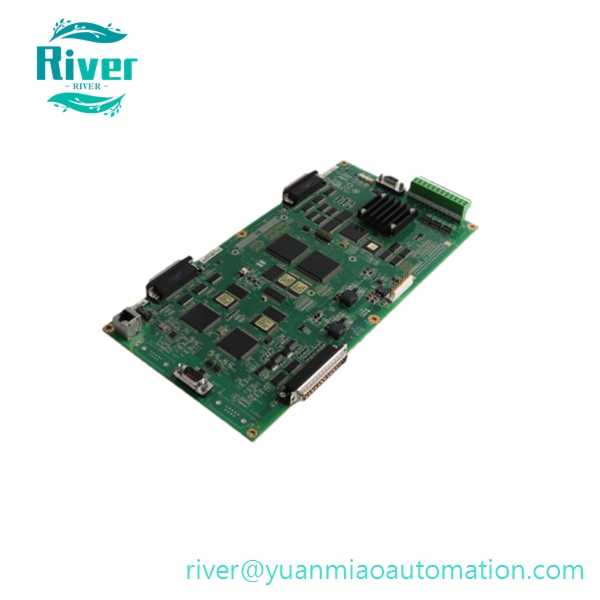

Product Overview

• Part No: IS210MACCH2AKH
• Base Model: IS210MACCH2A
• Brand: GE General Electric
• Series: Mark VI / Mark VIe Speedtronic Turbine Control System
• Type: MAC Machine Access Controller Multi-channel I/O Module
• Function
• Collect analog and digital signals from turbine field sensors and transmitters
• Complete signal filtering, scaling and isolation preprocessing
• Exchange real-time data with main processor board via rack backplane bus

• Output control commands to on-site actuators and safety interlock loops

•


Core Features

• Multi-channel mixed AI/AO/DI/DO integrated design for turbine multi-signal collection
• Galvanic isolation between field side and system bus to resist strong electromagnetic interference
• Built-in hardware self-diagnosis with front LED indicators for channel and module fault alert
• Conformal coated PCB for dustproof, moistureproof and anti-corrosion performance
• Standard rack plug-in card, hot-swappable under redundant power supply

• Support redundant signal path for safety critical turbine control

•


Technical Specifications

• Power Supply: 24VDC via rack backplane
• Operating Temperature: -20℃ ~ +70℃
• Net Weight: Approx 0.4kg
• Protection Class: IP20, cabinet internal installation only
• HS Code: 85389091

• Supply: Brand new original & fully tested refurbished modules available

•


Compatibility

• Exclusive matching GE Mark VI and Mark VIe turbine control rack
• Compatible with IS210MACC1ACC main processor card

• Direct replacement for identical part number during cabinet maintenance

•


Application

• Signal acquisition and interlock control for gas turbine, steam turbine and combined cycle units in thermal power plants
• Spare part replacement and inventory backup for power station Mark VIe control cabinets
• Auxiliary equipment monitoring for oil & gas power generation stations
