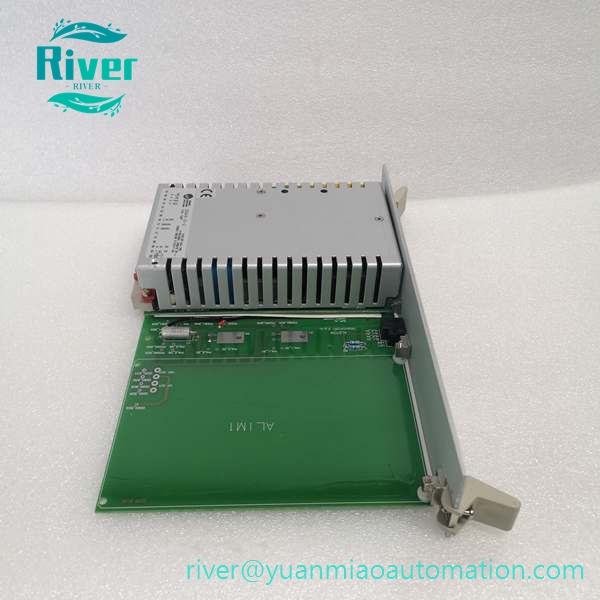

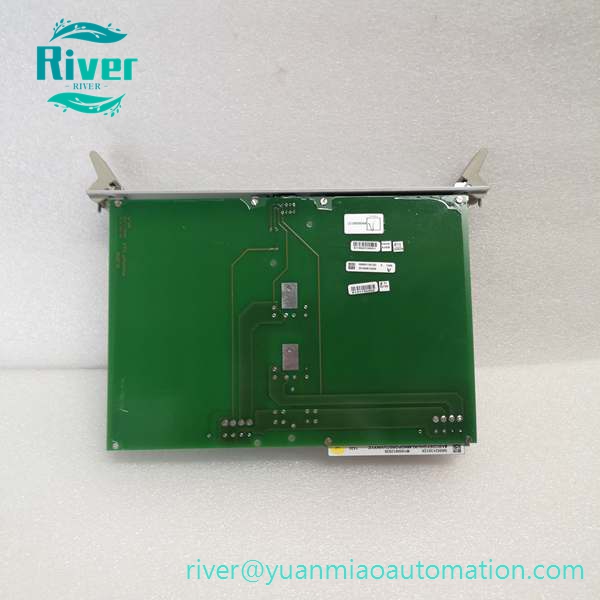

Product Overview

• Part No: N895313512X
• Brand: ALSTOM

• Category: Multifunctional SUP-AL Control ModuleN895313512X is a standard Eurocard draw-out control module belonging to ALSTOM legacy turbine control product family. It integrates analogue signal conditioning, digital logic processing and backplane bus communication interfaces. The module acquires field sensor signals including pressure, temperature, displacement and vibration, converts raw analogue measurements into digital data and exchanges real-time process information with system master controllers. Equipped with built-in filtering, galvanic isolation and surge suppression circuits, it maintains stable operation under severe electromagnetic interference inside power plant control cubicles. It serves as critical replacement spare for steam turbine governing cabinets and distributed control systems of thermal power stations and combined-cycle power plants.

•


Core Features

• Integrated analogue signal sampling and digital logic processing for multiple process variables
• Galvanically separated input channels to reduce signal crosstalk and external interference
• On-board self-diagnostic function with front panel LED indicators for rapid fault diagnosis
• Standard Eurocard draw-out structure supporting fast on-site module replacement
• Reliable backplane bus communication for data interaction with other rack modules
• Reinforced multilayer PCB layout with ESD and transient overvoltage protection

• Passed EMC, vibration and wide-range thermal cycling reliability qualification

•


Technical Specifications

• Operating Supply: 24 VDC
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy steam turbine governing control platforms and DCS systems
• Widely deployed in thermal power plants, combined-cycle power facilities and captive power stations
• Applied for turbine parameter acquisition, closed-loop process control and auxiliary system signal processing
