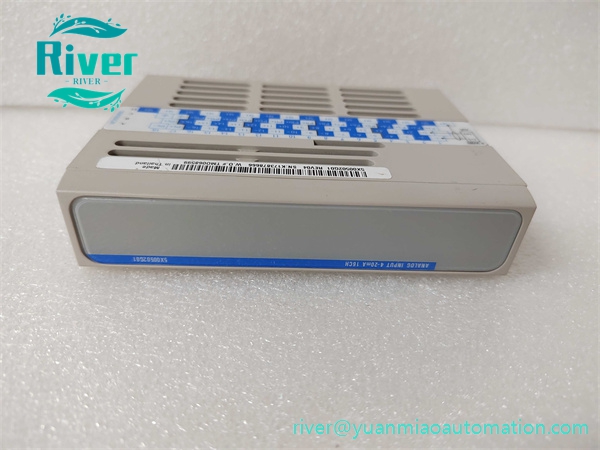

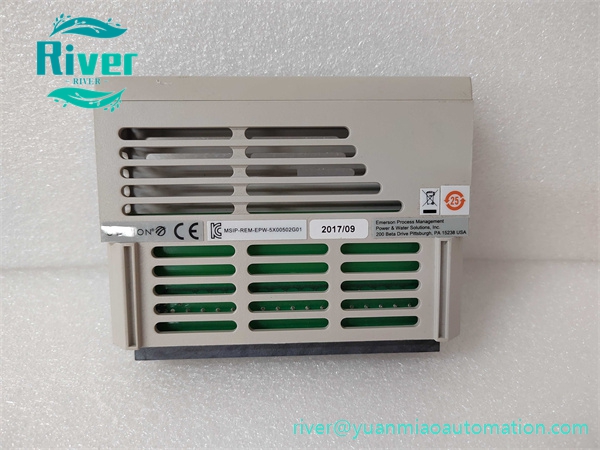

Emerson 5X00502G01 Ovation DCS analog input module, 16 differential channels supporting 4–20mA signals, 16-bit high precision acquisition, channel-to-channel galvanic isolation, collects pressure, flow and temperature transmitter data, key spare for power plant Ovation control system.

Product Overview

• Part No: 5X00502G01
• Brand: EMERSON / Westinghouse Ovation

• Category: 16-Channel Differential Analog Input Module 5X00502G01 is a high-density analog input module developed for Emerson Ovation distributed control system. It acquires 4–20mA DC analog signals from field smart transmitters, converting analog measurements into digital data for Ovation controllers to execute monitoring and closed-loop regulation. Adopting differential signal sampling architecture, it effectively suppresses common-mode interference and ground loop noise in power plant environments. Each channel supports independent configuration of filtering parameters and signal scaling. Built-in comprehensive channel diagnostics detect open-circuit, short-circuit and out-of-range faults to support predictive maintenance. The module supports hot-swap operation to enable online replacement without interrupting unit operation. Front panel LED indicators display module operating status and channel fault alarms for fast on-site troubleshooting. Widely used maintenance spare for boiler and turbine process parameter monitoring loops in thermal power plants.

•


Core Features

• 16 independent differential analog input channels
• Primary support for 4–20mA field transmitter signals
• 16-bit high-resolution A/D conversion for stable precise measurement
• Galvanic isolation between channels and between field circuits and backplane
• Software configurable digital filtering, signal scaling and engineering unit conversion
• Built-in self-diagnosis: open circuit, short circuit, signal overrange detection
• Hot-swap capable for online maintenance without system shutdown
• Front panel multi-status LED indicators for module and channel fault information
• Standard plug-in design matching Ovation I/O base assembly
• Optimized hardware with high common-mode rejection ratio against industrial electromagnetic interference

• Compliant with strict industrial EMC standards for 24/7 continuous operation

•


Technical Specifications

• Input Channels: 16 differential analog input channels
• Supported Signal: 4–20mA DC
• Resolution: 16-bit
• Typical Accuracy: ±0.1% of full span
• Isolation Voltage: 500 VDC channel-to-channel and channel-to-backplane
• Input Impedance: 250 Ω nominal
• Power Supply: Powered via Ovation rack backplane
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Mounting: Ovation standard I/O rack slot installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson Ovation DCS controllers, I/O racks and matching base assemblies
• Widely deployed in thermal power plants, combined-cycle power stations and petrochemical facilities
• Applied for continuous collection of pressure, flow, liquid level and temperature signals from field transmitters
