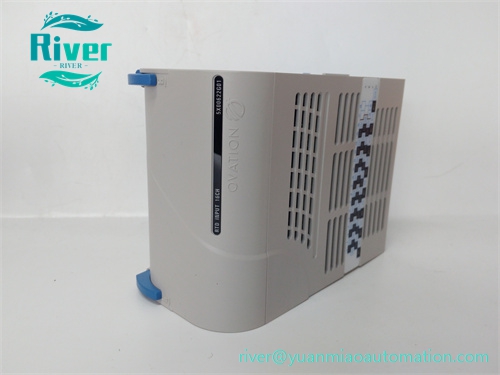

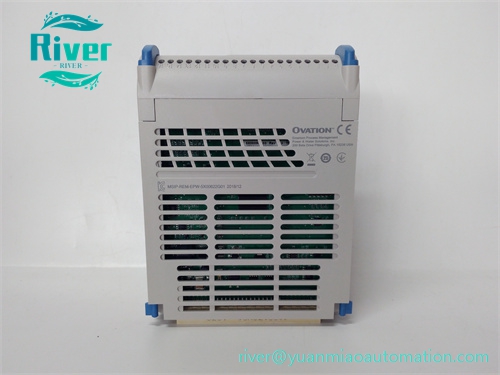

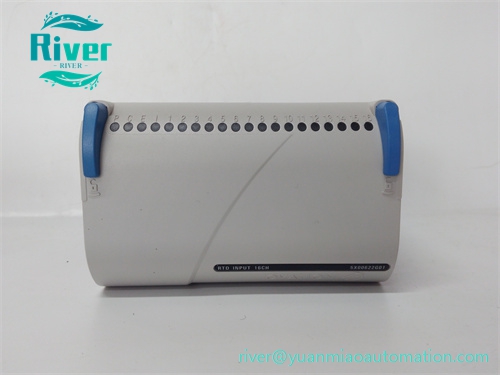

Emerson 5X00622G01 Ovation DCS RTD input module with 16 channels, supports 2/3/4-wire Pt100, Pt1000, Ni120, Cu10 RTD sensors, high-precision temperature acquisition for boiler, turbine thermal parameter monitoring, critical spare part for power plant Ovation control system.

Product Overview

• Part No: 5X00622G01
• Brand: EMERSON / Westinghouse Ovation

• Category: 16-Channel RTD Temperature Input Module 5X00622G01 is a high-density resistance temperature detector (RTD) input module developed for Emerson Ovation distributed control system. It collects resistance signals from field RTD temperature sensors and converts resistance values into accurate temperature data for Ovation controllers. Each channel can be independently configured for 2-wire, 3-wire or 4-wire sensor connection modes, compatible with mainstream RTD types including Pt100, Pt1000, Ni120 and Cu10. The module adopts automatic cold junction compensation and built-in linearization algorithm to guarantee stable measuring precision. Comprehensive channel diagnostics detect open circuit, short circuit and sensor abnormal faults to support equipment predictive maintenance. Hot-swap design enables online module replacement without interrupting temperature monitoring loops. Front panel LED indicators display module operating status and channel fault alarms for rapid field troubleshooting. Widely used maintenance spare for boiler flue gas, steam pipeline, bearing and generator winding temperature monitoring in thermal power units.

•


Core Features

• 16 independent RTD temperature measurement channels
• Supports 2-wire, 3-wire and 4-wire RTD wiring configurations
• Compatible with Pt100, Pt1000, Ni120, Cu10 standard resistance temperature sensors
• Automatic cold junction compensation and built-in temperature linearization processing
• 16-bit high-resolution A/D conversion for precise temperature measurement
• Galvanic isolation between field circuits and internal backplane bus
• Built-in self-diagnosis: sensor open-circuit, short-circuit and signal deviation detection
• Hot-swap capable for online maintenance without system shutdown
• Front panel LED status indicators for module running and channel fault information
• Standard plug-in design matching Ovation I/O base assembly
• Low excitation current design reduces RTD self-heating error

• Industrial hardware meets strict EMC standards for continuous 24/7 operation in power plant environments

•


Technical Specifications

• Input Channels: 16 RTD input channels
• Supported Sensor: Pt100, Pt1000, Ni120, Cu10
• Wiring Mode: 2-wire / 3-wire / 4-wire configurable per channel
• Measuring Range: -200°C ~ +850°C (depends on RTD type)
• Resolution: 0.01°C
• Typical Measurement Accuracy: ±0.1% full scale
• Isolation Voltage: 500 VDC channel-to-channel and channel-to-backplane
• Excitation Current: 0.5 mA nominal
• Power Supply: Powered via Ovation rack backplane
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Mounting: Ovation standard I/O rack slot installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson Ovation DCS controllers, I/O racks and supporting base assemblies
• Widely deployed in thermal power plants, combined-cycle power stations and petrochemical facilities
• Applied for continuous temperature monitoring of boiler pipelines, turbine bearings, generator windings and process equipment
