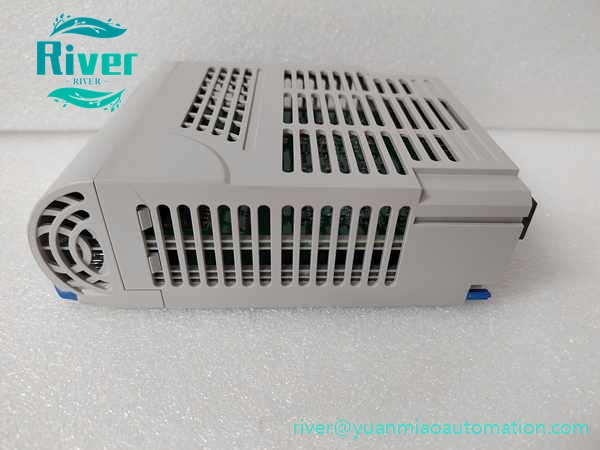

Emerson 1C31233G04 Ovation DCS SOE digital input module with millisecond-level timestamp function, supports 48VDC discrete signals, used for fault sequence tracking of unit trips, protection operations and breaker status, critical spare part for thermal power plant Ovation control system.

Product Overview

• Part No: 1C31233G04
• Brand: EMERSON / Westinghouse Ovation

• Category: SOE Sequence Of Events Digital Input Module 1C31233G04 is an upgraded hardware revision of 1C31233G01, dedicated SOE input module for Emerson Ovation distributed control system. It acquires discrete signals from field switches, protection contacts and breaker auxiliary contacts. Equipped with high precision onboard clock, the module generates millisecond-level timestamps for every signal state change to accurately record the sequence of events. During unit trip or emergency shutdown conditions, the sequential data supports rapid fault source identification. This module accepts 48VDC field contact signals and provides per-channel signal filtering to suppress contact bounce interference. Hot-swap capability enables online replacement without interrupting signal acquisition of remaining channels. Front panel LED indicators display module operation, communication and channel status for convenient on-site inspection and troubleshooting. It serves as essential maintenance spare for boiler, turbine and electrical system fault analysis in thermal power generating units.

•


Core Features

• Dedicated SOE module supporting high-precision millisecond event timestamping
• Accepts 48VDC discrete input signals from field contacts
• Per-channel configurable filtering to eliminate signal jitter
• Records chronological order of protection actions, breaker trips and equipment status changes
• Galvanic isolation between field circuits and internal backplane bus
• Comprehensive channel diagnostics for circuit fault detection
• Hot-swap supported for online maintenance without system shutdown
• Front panel LED indicators for module status and individual channel signals
• Standard plug-in design matching Ovation I/O base assembly

• Enhanced anti-interference hardware compliant with industrial EMC requirements for continuous 24/7 operation

•


Technical Specifications

• Input Type: Discrete contact input for SOE application
• Field Signal Level: 48VDC
• Timestamp Accuracy: Millisecond level
• Isolation: Galvanic isolation between field side and control backplane
• Power Supply: Powered via Ovation rack backplane
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Mounting: Ovation standard I/O rack slot installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson Ovation DCS controllers, I/O racks and matching base assemblies
• Widely deployed in thermal power plants and combined-cycle power stations
• Applied for event sequence recording of generator protection, breaker auxiliary contacts, boiler and turbine interlock signals during fault conditions
