Emerson 5X00500G01 Ovation DCS 32-channel digital output module, 24VDC current sourcing outputs with inductive load protection, drives field relays and solenoid valves, supports hot-swap, widely used spare part for thermal power plant sequential control and interlock systems.

Product Overview

• Part No: 5X00500G01
• Brand: EMERSON / Westinghouse Ovation

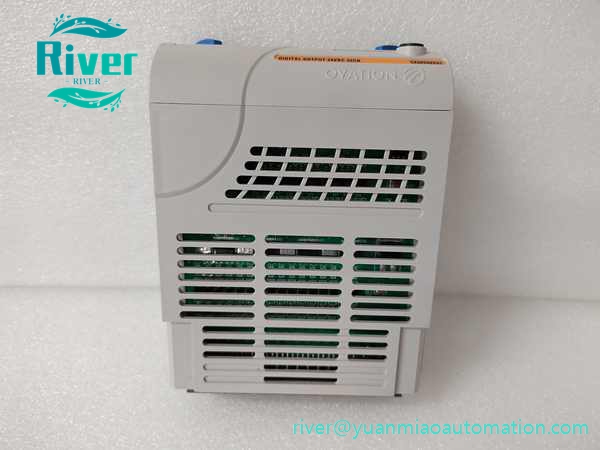

• Category: 32-Channel Digital Output Module 5X00500G01 is a high-density digital output module for Emerson Ovation distributed control system. It receives control commands from Ovation controllers and provides 32 independent 24VDC current-sourcing outputs to drive field loads including relays, solenoid valves and auxiliary equipment. Built-in protection circuits suppress voltage spikes generated by inductive loads to extend service life and avoid hardware damage. The module features galvanic isolation between field circuits and internal backplane bus to eliminate ground loop interference. Hot-swap capability enables online module replacement without interrupting operation of other control loops. Front panel LED indicators display module running status, communication health and individual channel state for fast on-site inspection and fault diagnosis. It serves as essential maintenance spare for boiler, turbine and electrical sequential control as well as safety interlock applications in power generation facilities.

•


Core Features

• 32 independent 24VDC current sourcing digital output channels
• Per-channel inductive kick protection for relay and solenoid loads
• Galvanic isolation between field side and control backplane bus
• Field power presence monitoring and comprehensive circuit diagnostics
• Software configurable communication timeout actions for output latch or reset
• Hot-swap supported for online maintenance without system shutdown
• Front panel multi-status LED indicators for module and channel information
• Standard plug-in design matching Ovation I/O base assembly

• Low power consumption with robust EMC performance for 24/7 continuous industrial operation

•


Technical Specifications

• Output Channels: 32 digital output channels
• Output Type: 24VDC current sourcing
• Rated Current: Max 500mA per channel; total maximum 2A
• Galvanic Isolation: ±1000 VDC between field and logic circuits
• Max Power Dissipation: 4.05 W
• Power Supply: Powered via Ovation rack backplane
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Humidity: 0%–95% non-condensing
• Mounting: Ovation standard I/O rack slot installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Fully compatible with Emerson Ovation DCS controllers, I/O racks and matching base assemblies
• Widely deployed in thermal power plants and combined-cycle power stations
• Applied for sequential equipment control, auxiliary motor drive, solenoid valve operation and safety interlock logic
