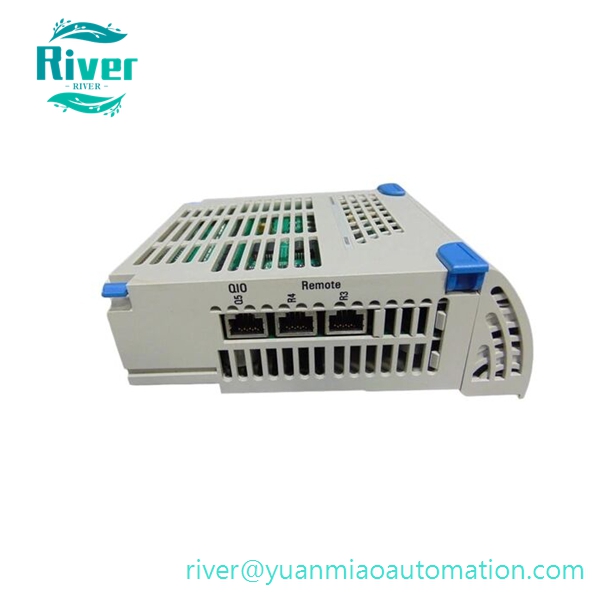

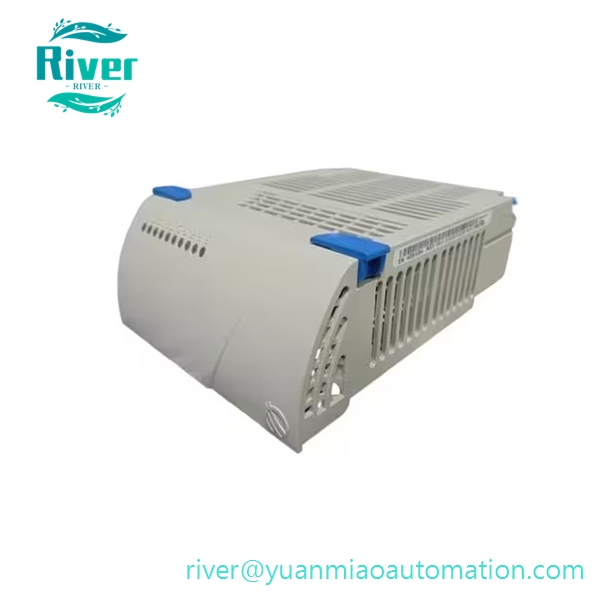

Emerson 5X00226G01 OCR1100 DCS process controller, early hardware revision with redundant bumpless failover, executes PID and interlock logic, key spare for power plant Ovation control system.

Product Overview

• Part No: 5X00226G01
• Brand: EMERSON / Westinghouse Ovation

• Category: OCR1100 Process Controller 5X00226G01 is an early hardware revision of the OCR1100 main process controller within Emerson Ovation distributed control system. It serves as the core processing unit to run continuous PID control, boolean logic, sequential control, safety interlock and advanced control algorithms. This controller supports 1:1 redundant hot standby configuration to achieve bumpless automatic switchover upon primary unit failure and improve system availability. It supports Ovation local I/O branches, Q-Line I/O and remote I/O nodes to deliver flexible I/O expansion schemes for medium and large-scale control applications. Multiple Ethernet communication ports enable connections to operator workstations, historians and third-party peripheral systems. The unit adopts fanless low-power architecture to extend service life and reduce maintenance frequency. Built-in comprehensive self-diagnosis continuously monitors hardware health, memory status and communication links. Front panel LED indicators display operation status, network activity and fault alarms for convenient field inspection. 5X00226G01 can be replaced by upgraded revision 5X00226G04 with compatible system software. It serves as essential maintenance spare for thermal power plants, combined-cycle facilities and petrochemical process control platforms.

•


Core Features

• Fanless OCR1100 process controller, early hardware revision for Ovation DCS platform
• Supports 1:1 redundant deployment with seamless bumpless automatic failover
• Executes closed-loop regulation, sequential control and equipment interlock algorithms
• Flexible I/O compatibility: local Ovation I/O, Q-Line I/O and remote I/O nodes
• Multiple RJ45 Ethernet interfaces for system networking and data exchange
• Low-power fanless hardware design for stable 24/7 continuous operation
• Comprehensive onboard diagnostics covering hardware, memory and communication faults
• Supports millisecond-level SOE sequence of events recording
• Standard rack plug-in structure for convenient replacement during maintenance

• Compliant with strict industrial EMC standards for control room environments

•


Technical Specifications

• Model: OCR1100, Part Number 5X00226G01
• Power Supply: 24 VDC nominal
• Maximum Power Consumption: 40 W
• Supported Local I/O: Up to 16 I/O branches, maximum 128 I/O modules
• Communication Interfaces: Multi-channel 10/100 Mbps Ethernet
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Humidity: 5%–95% non-condensing
• Mounting: Ovation standard controller rack installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with Ovation DCS supporting corresponding firmware; interchangeable with upgraded 5X00226G04
• Supports Ovation standard I/O modules, Q-Line I/O and remote node interface modules
• Widely deployed in thermal power plants, combined-cycle power stations and petrochemical facilities
• Applied for unit coordinated control, boiler and turbine regulation, auxiliary system sequential control and safety interlock protection
