Emerson 5X00226G02 OCR1100 DCS controller, mid-version hardware supporting redundant bumpless failover, executes PID and interlock logic, key Ovation spare for power plants.

Product Overview

• Part No: 5X00226G02
• Brand: EMERSON / Westinghouse Ovation

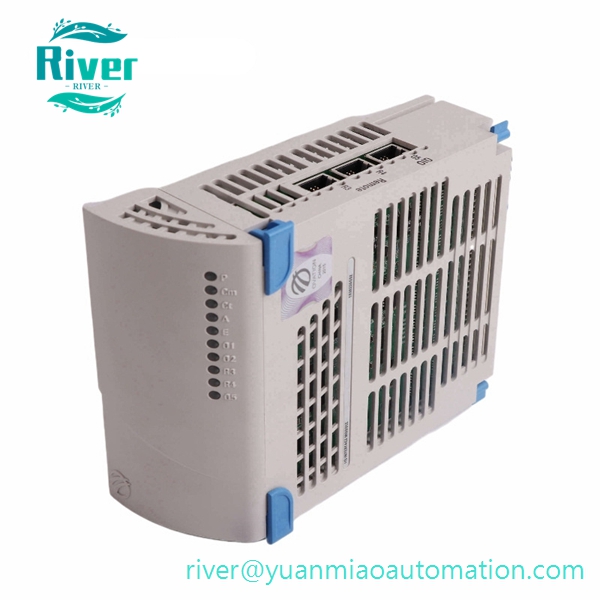

• Category: OCR1100 Process Controller 5X00226G02 is the mid hardware revision of OCR1100 main controller for Emerson Ovation distributed control system. It acts as core processing unit to run PID closed-loop regulation, boolean logic, sequential control and safety interlock algorithms. The controller supports 1:1 redundant hot standby with bumpless automatic switchover upon primary unit failure. It is compatible with local Ovation I/O branches, Q-Line I/O and remote I/O nodes. Multiple Ethernet ports connect operator stations, historians and third-party systems. Fanless low-power architecture ensures long-term stable operation. Built-in self-diagnostics continuously monitor hardware, memory and communication links. Front panel LEDs display operation status, network activity and fault alarms. This revision can be replaced by upgraded 5X00226G04 with matched system firmware. It serves as essential maintenance spare for thermal power and combined-cycle power plants.

•


Core Features

• Fanless OCR1100 process controller, mid hardware revision for Ovation DCS
• Supports 1:1 redundant deployment with seamless bumpless automatic failover
• Executes closed-loop regulation, sequential control and equipment interlock algorithms
• Compatible with local Ovation I/O, Q-Line I/O and remote I/O nodes
• Multi-channel RJ45 Ethernet interfaces for system networking
• Low-power fanless design for 24/7 continuous stable operation
• Comprehensive onboard diagnostics for hardware and communication faults
• Supports millisecond-level SOE sequence of events recording
• Standard rack plug-in structure for convenient field replacement

• Compliant with strict industrial EMC standards for control room environments

•


Technical Specifications

• Model: OCR1100, Part Number 5X00226G02
• Power Supply: 24 VDC nominal
• Maximum Power Consumption: 40 W
• Supported Local I/O: Up to 16 I/O branches, maximum 128 I/O modules
• Communication Interfaces: Multi-channel 10/100 Mbps Ethernet
• Operating Temperature: 0°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Humidity: 5%–95% non-condensing
• Mounting: Ovation standard controller rack installation

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Works with corresponding Ovation DCS firmware; interchangeable with 5X00226G01 and upgraded 5X00226G04
• Supports Ovation standard I/O modules, Q-Line I/O and remote node interface modules
• Widely deployed in thermal power plants and combined-cycle power stations
• Applied for unit coordinated control, boiler & turbine regulation, auxiliary sequential control and safety interlock protection
