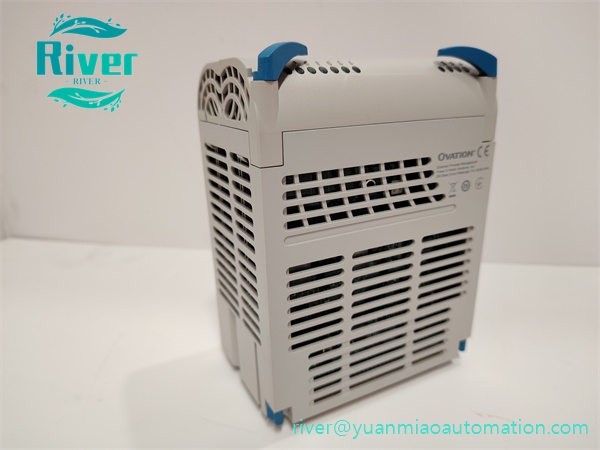

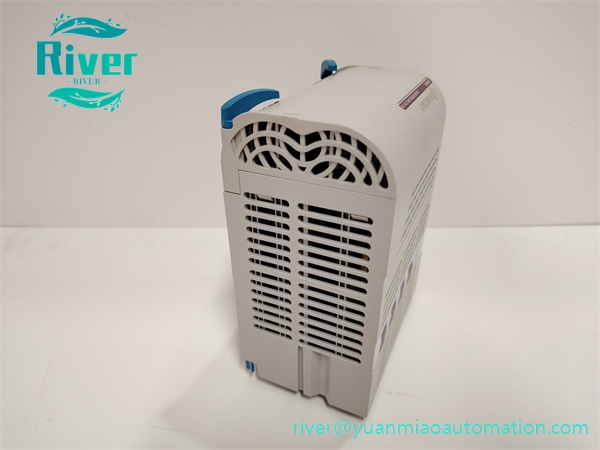

Emerson 5X00846G01 Ovation 16-channel analog input module, supports 4–20mA signals, hot-swappable I/O spare for power plant DCS.

Product Overview

• Part No: 5X00846G01
• Brand: EMERSON Ovation

• Category: 16-Channel Analog Input Module 5X00846G01 is a high-density I/O module for Ovation DCS. It collects 16 channels of 4–20mA analog signals from field transmitters. Equipped with galvanic isolation and channel fault diagnostics. Hot-swap design allows online replacement without rack shutdown. Widely used for pressure, flow and temperature signal acquisition in thermal power plants.

•


Core Features

• 16-channel isolated analog input
• Supports standard 4–20mA loop signals
• Channel-level diagnostics and front LED indicators
• Galvanic isolation between field and backplane

• Hot-swappable for online maintenance

•


Technical Specifications

• Input signal: 4–20mA
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C

• Protection Class: IP20 inside control cabinet

•


Compatibility & Application

• Compatible with Ovation DCS I/O rack and OCR3000 controllers
• Applied for boiler, turbine auxiliary process variable monitoring
